Ford F-250 Oxygen Sensor Guide: 2001-2009 Models
Everything you need to know about replacing the oxygen sensors on your 5.4L or 6.8L Super Duty truck.
- Confirm how many sensors your truck has before buying; most will have two upstream sensors, but California models may have four.
- Choose a 'direct-fit' aftermarket sensor to avoid cutting and splicing wires; this is the most reliable option.
- Old sensors are often seized by rust; use penetrating oil and a special O2 sensor socket for removal.
- Ignoring a bad O2 sensor can lead to poor fuel economy and expensive damage to the catalytic converter.
Is a Failing Oxygen Sensor a Big Deal?
Yes, it can be. A bad oxygen sensor sends incorrect data to your truck’s computer. This can cause the engine to run too rich (too much fuel) or too lean (not enough fuel). Over time, this leads to poor gas mileage, failed emissions tests, and sluggish performance. If you ignore a bad O2 sensor for too long, it can cause expensive damage to your catalytic converters, a repair that costs significantly more than replacing the sensors themselves.
How Many Sensors Does My Truck Have?
This is a common point of confusion for 2001-2009 F-250 owners. Because these are Super Duty trucks with a Gross Vehicle Weight Rating (GVWR) over 8,500 lbs, the emissions systems can differ.
- Most non-California models: You will likely only have two upstream oxygen sensors, one on each side of the exhaust before the catalytic converter. These trucks were often not required to have downstream sensors.
- California emissions models: You will likely have four oxygen sensors – two upstream and two downstream.
Pro-Tip: The only way to be certain is to visually inspect your exhaust system 🎬 Watch: Locate your oxygen sensors and emissions components here. before ordering parts. Look for sensors screwed into the exhaust pipe both before and after the catalytic converters.
Choosing the Right Aftermarket Oxygen Sensor
When shopping for aftermarket oxygen sensors, the most important choice is between a 'universal' sensor and a 'direct-fit' sensor.
- Universal Sensors: These are cheaper but require you to cut the old connector off your wiring harness and splice it onto the new sensor. This creates a point of failure. An improper connection can change the sensor's resistance, causing the check engine light to come back on. We recommend avoiding these.
- Direct-Fit Sensors: These cost a little more but come with the correct factory-style connector for your truck. You just unplug the old sensor and plug the new one in. This is the most reliable and frustration-free option.
Aftermarket Brand Quality: Spectra vs. Walker Products

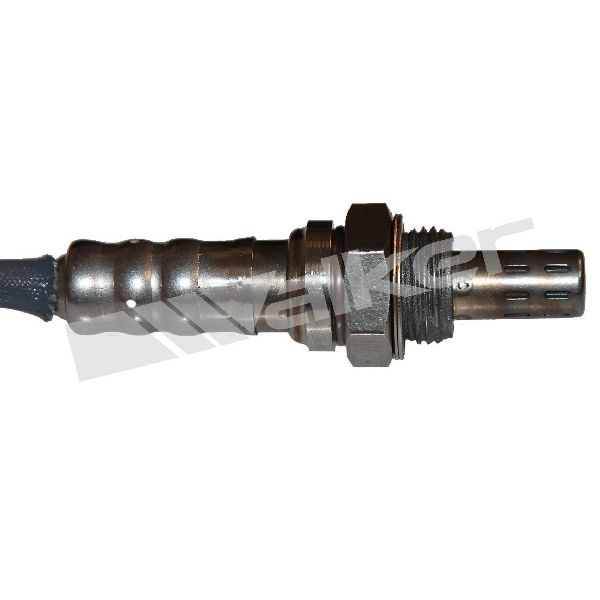

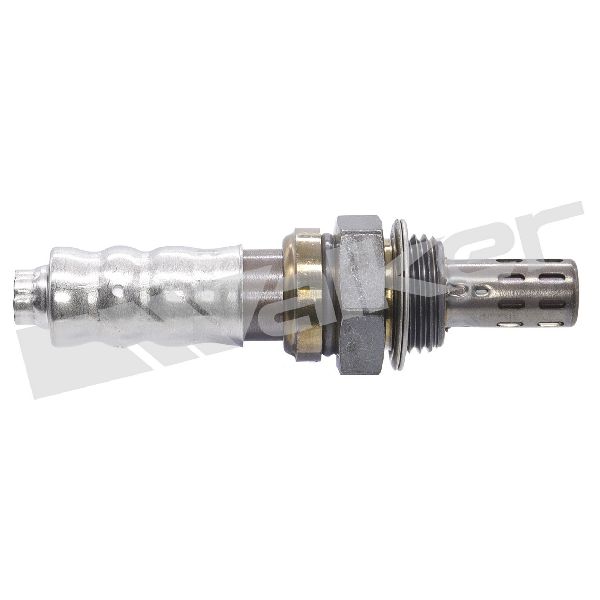

For the 2001-2009 Ford F-250, both Spectra and Walker Products offer direct-fit options that are more affordable than OEM parts from the dealer.
- Spectra: Generally viewed as a quality aftermarket brand. Their sensors are engineered to meet or exceed the performance of the original equipment parts. They often feature robust construction and waterproof connectors that match the factory harness perfectly.
- Walker Products: Walker has been making exhaust and emission components since 1946. Owner reviews are often positive regarding the price and initial fit. However, some forum discussions mention instances of Walker sensors failing earlier than OEM or other premium aftermarket brands. They can be a good budget-friendly choice, but longevity may vary.
OEM vs. Aftermarket
For a vehicle of this age, a quality direct-fit aftermarket sensor from a reputable brand like Spectra or even Walker offers the best value. The original OEM sensors were often made by companies like Bosch or NTK, who also sell direct-fit sensors on the aftermarket. You get similar quality without paying the dealership markup for a part in a Ford-branded box.
Oxygen Sensor Replacement Cost for 2001-2009 Ford F-250
The cost can vary depending on how many sensors you need and who does the work. The prices below are estimates.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor (per sensor) | $115 - $250 |
| New Aftermarket Sensor (per sensor) | $40 - $90 |
| Shop Labor (per sensor) | $61 - $90 |
| Total Professional Replacement (per sensor) | $100 - $340 |
Frequently Asked Questions (FAQ)
Can I replace just one oxygen sensor?
Yes, you can replace only the sensor that has failed. However, oxygen sensors degrade over time. If your truck has high mileage (over 80,000 miles), it's often a good practice to replace them in pairs (both upstream or both downstream) to ensure balanced and accurate readings on both sides of the engine.
Is replacing an O2 sensor hard to do yourself?
The process is simple, but the job can be difficult. The sensors are screwed into the exhaust pipe and are often seized due to rust and thousands of heat cycles. It requires a special slotted socket to fit over the wire, and you will likely need penetrating oil and significant force to break the old sensor loose. Sometimes heating the exhaust pipe around the sensor is necessary.
What are the OBD-II codes for a bad oxygen sensor?
While many codes can point to an O2 sensor, some of the most common include P0133 (Slow Response), P0134 (No Activity), P0135 (Heater Circuit Malfunction), and P0420 (Catalyst System Efficiency Below Threshold), which can be caused by a failing downstream sensor. A code for the heater circuit is very common.
🎬 Watch: How to fix a P0135 heater circuit malfunction code.What's the difference between upstream and downstream sensors?
Upstream sensors (also called Bank 1 Sensor 1 or Bank 2 Sensor 1) are located before the catalytic converter. They are the primary sensors used to adjust the air/fuel mixture. Downstream sensors (Bank 1 Sensor 2 or Bank 2 Sensor 2) are after the catalytic converter and their main job is to monitor the health and efficiency of the converter itself.
Are there any recalls for my F-250's oxygen sensors?
No widespread recalls or technical service bulletins (TSBs) were found specifically for oxygen sensor failure on the 2001-2009 Ford F-250. These parts are generally considered maintenance items that wear out over time.
Helpful Videos
![How to Fix FORD P0135 Engine Code in 2 Minutes [1 DIY Method / Only $19.66]](https://img.youtube.com/vi/cYf32lC6hN4/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: XC2Z9F472AA XC2Z9F472BA DY1040 BL3Z9G444B 4L3Z9G444AA XL3Z9F472AA XL3Z9F472BA
Number of sensors varies by year and emissions package (Federal vs. California). Most F-250 Super Duty trucks in this range use two upstream sensors. All sensors are of the heated, 4-wire type. Direct-fit connectors are highly recommended.
