Engine Oil Pressure Switch Guide for the 2001-2009 Volkswagen Golf
Understand the common failure points of the oil pressure switch and how to choose the right replacement for your Mk4 or Mk5 Golf.
- An oil pressure warning can mean a bad switch or catastrophic engine failure; always check the oil level first.
- A common failure is oil leaking into the electrical connector, which is a sure sign the switch needs replacement.
- For best results, choose an aftermarket brand that is also an OEM supplier, such as Hella or Vemo.
- Replacement is a simple DIY task for most owners, requiring a 24mm deep socket and access from under the car.
Is Your VW Golf's Oil Pressure Light On?
Seeing the red oil pressure light on your dashboard is a serious warning. The first step is to stop the car safely and immediately check your oil level. 🎬 Watch: What to do when your oil light comes on If the oil level is correct, the problem could be a faulty oil pressure switch, a common issue on the 2001-2009 VW Golf. These switches can fail in a way that causes them to leak oil internally, not onto the ground, but into the electrical connector itself. This can short out the sensor and trigger a false warning light.
Pro Tip: Check the Connector for Oil
Before you buy a new part, unplug the electrical connector from the oil pressure switch. If you see oil inside the connector, you have almost certainly found your problem. The switch has failed internally and must be replaced.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create several confusing symptoms. Being aware of them can help you diagnose the problem correctly.
- Flickering Oil Light: The oil pressure light may flicker, especially at idle or during turns.
- Constant Oil Light: The warning light may stay on constantly, even if the oil level and pressure are fine.
- Warning Light with Buzzer: On many VW models, a constant light is accompanied by an audible warning buzzer.
- Leaking Switch: While internal leaks are common, the switch can also develop external leaks, leaving oily residue around the sensor on the oil filter housing.
Warning: Don't Assume It's Just the Switch
An oil pressure light can indicate actual low oil pressure, which can destroy your engine in minutes. If you have any doubts, or if the engine is making unusual ticking or knocking noises, have the oil pressure checked with a mechanical gauge before driving the vehicle further.
Choosing the Right Aftermarket Switch
When replacing the oil pressure switch, you have several aftermarket brands to choose from. For a critical sensor like this, quality matters. They generally fall into a few tiers.
Brand Quality Tiers
- Tier 1: OEM Suppliers (Hella, Vemo): Brands like Hella are known to be Original Equipment Manufacturers (OEM) for Volkswagen. Choosing a part from an OEM supplier gives you the best chance of getting a quality, reliable sensor that performs like the original part without the dealership price tag. Vemo is also marketed as a high-quality OEM-equivalent part.
- Tier 2: Reputable Aftermarket (Standard Ignition, Beck Arnley, Walker Products): These are well-known aftermarket brands with a long history of producing replacement parts. Their quality is generally considered good and reliable for most repairs.
- Tier 3: Economy Brands (URO Parts): Brands like URO Parts offer parts at a very low price point. However, forum discussions show mixed reviews for their electrical components, with some users reporting premature failures. While they can be a budget-friendly option, for a sensor this critical, it may be worth spending a little more to avoid doing the job twice.
Cost of a New Engine Oil Pressure Switch
| Part Type | Price Range |
|---|---|
| New OEM (Genuine VW) | $30 - $51 |
| New Aftermarket | $9 - $62 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Is it difficult to replace the oil pressure switch on a VW Golf?
No, it is considered a relatively easy DIY job. It requires basic tools, like a jack and a 24mm deep socket. The most difficult part is often reaching the switch in a tight space and disconnecting the old electrical connector without breaking it.

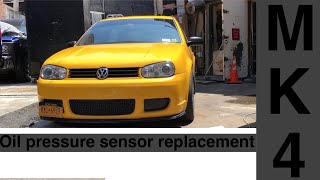

🎬 Watch a mechanic replace the switch on a Mk4Where is the oil pressure switch located on the 2001-2009 Golf?

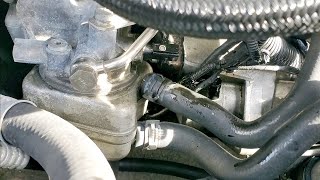

The oil pressure switch is located on the oil filter housing, which is typically found on the front of the engine. You will need to access it from underneath the car.

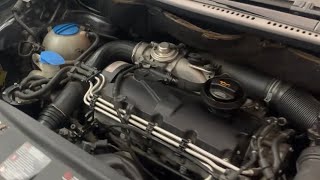

🎬 See this walkthrough for replacing the oil pressure switchAre there any recalls for the oil pressure switch on my Golf?
Searches of the NHTSA database did not show any specific recalls for the engine oil pressure switch on the 2001-2009 Volkswagen Golf.
What do the trouble codes P0521, P0522, or P0523 mean?
These are Diagnostic Trouble Codes (DTCs) related to the oil pressure sensor circuit. P0521 indicates the sensor's performance is out of range, P0522 indicates a low voltage signal, and P0523 indicates a high voltage signal. These codes often point to a faulty sensor or a wiring issue.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06A919081J 06A919081A 06A919081D 06A919081E 06A919081F 038919081H 036919081D
Location: Oil Filter Housing. Socket Size: 24mm. Torque: 25 Nm (18 ft-lbs).
