Chrysler Sebring (2001-2010) HVAC Blower Motor Resistor Guide
If your Sebring's fan only works on high, this guide explains the common cause and how to choose the right replacement resistor.
- The most common symptom is the fan only working on high; this almost always means the resistor is bad.
- For 2007-2010 models, you must verify if you have Manual (needs resistor) or Automatic (needs power module) climate controls.
- Always inspect the wiring connector for melting; if it's damaged, you must replace it with a pigtail harness.
- It is highly recommended to replace the blower motor at the same time to prevent the new resistor from burning out.
Is Your Sebring's Fan Only Working on High?
For owners of the 2001-2010 Chrysler Sebring, one of the most common electrical failures is the HVAC blower motor resistor. The classic symptom is a fan that works perfectly on the highest setting but won't blow any air on the lower speeds. This happens because the internal circuits of the resistor burn out, leaving only the high-speed setting—which bypasses the resistor—functional. While it may seem like a major issue, it's typically an easy and affordable part to replace yourself.
Symptoms of a Failing Blower Motor Resistor
Look out for these common signs of failure in your Sebring:
- Fan only works on the highest speed: This is the number one indicator that your resistor has failed.
- Some fan speeds don't work: You might lose speeds 1 and 2, but 3 and 4 still function. This points to a partial failure of the resistor's circuits.
- No airflow at any speed: In some cases, a complete failure of the resistor or its electrical connector can prevent the blower motor from running at all.
- Burning plastic smell from vents: An overheating resistor or melting wire connector can produce a distinct electrical burning smell. This is a serious symptom that requires immediate inspection.
Check the Connector Before You Order!
Before ordering a new resistor, unplug the old one and inspect the wiring harness connector. It is very common for the connector to melt or show signs of scorching due to overheating. If your connector is melted, you MUST replace it with a new pigtail connector. Many aftermarket kits include this new connector. Splicing in a new connector is critical to prevent the new resistor from failing prematurely.
Choosing the Right Aftermarket Resistor for Your Sebring
There are two distinct generations of the Sebring in this period, and they use different parts. It is critical to order the correct one for your vehicle.

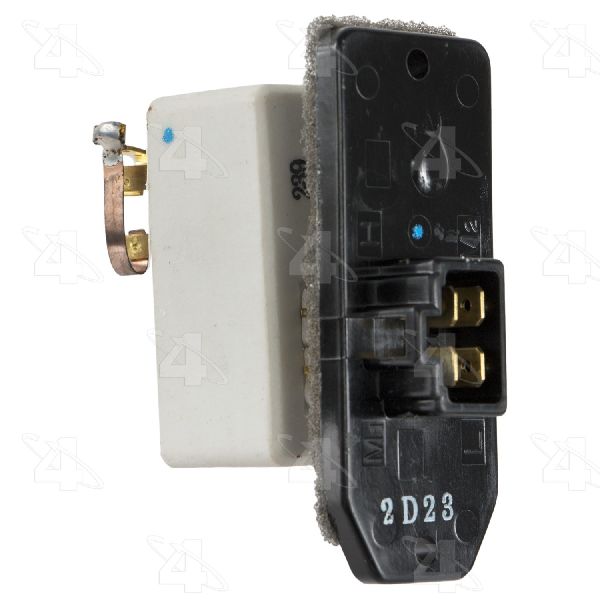

For 2001-2006 Sebring Sedan & Convertible
This generation is known for a specific installation quirk. Many aftermarket resistors are built to be more robust or "beefier" than the original factory part. As a result, the new resistor may not fit into the existing opening in the HVAC housing. To install it, you may need to use a razor blade or small knife to carefully cut away a small piece of plastic from the housing to enlarge the opening. This is a well-documented step shown in many online replacement videos.
🎬 See how to replace the resistor on 2001-2004 models.For 2007-2010 Sebring Sedan & Convertible

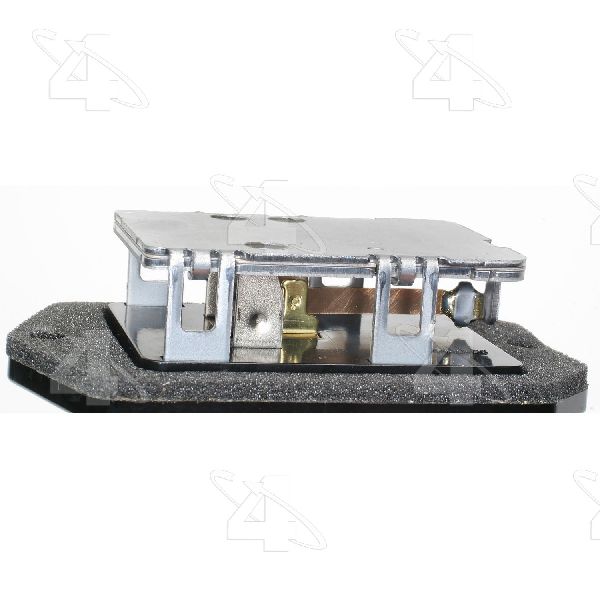

For this generation, the most important factor is your type of climate control system. You must verify if you have Manual Temperature Control (MTC) or Automatic Temperature Control (ATC).
- Manual Controls (MTC): If you have simple knobs to control temperature and fan speed, you need a standard Blower Motor Resistor.
- Automatic Controls (ATC): If your system has a digital display and an "Auto" button, you do not use a resistor. You need a part called a Blower Power Module, which is not interchangeable with the resistor.
Failing to check this is the most common ordering mistake for this generation.
🎬 Watch this walkthrough for 2007-2010 blower motor replacement.Pro Tip: Replace the Blower Motor at the Same Time
The root cause of a burned-out resistor and melted connector is often an old, failing blower motor. As the motor ages, it draws more electrical current than it should, which overloads and destroys the resistor. To avoid replacing the resistor again in a few months, it is highly recommended to replace the blower motor at the same time. This is considered cheap insurance against a repeat failure.
🎬 Watch: Complete blower motor, resistor, and connector replacement guide.Aftermarket Brand Quality
For a common failure part like this, aftermarket brands offer excellent value. Brands like Dorman, Standard Ignition (SMP), and Four Seasons are popular choices. Dorman is frequently mentioned and often sells kits that include the necessary pigtail connector. Standard Ignition is also a well-regarded brand known for quality electrical components. Economy brands will work, but given the low cost of the part and the potential for repeat failure if the blower motor is old, choosing a standard or premium aftermarket brand is a wise investment.
Cost of Replacing a Blower Motor Resistor (2001-2010 Chrysler Sebring)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Resistor | $18 - $82 |
| New OEM Resistor | $50 - $125 |
| Shop Labor | $60 - $100 |
Frequently Asked Questions
Is it hard to replace the blower motor resistor myself?
No, this is considered a very easy DIY job for most people. It is located under the passenger dashboard, held in by two screws, and requires only basic hand tools. The entire job usually takes less than 30 minutes.
What tools do I need for the job?
You will typically need an 8mm socket for 2007-2010 models or a 7mm socket for 2001-2006 models. A Phillips head screwdriver may also work. For 2001-2006 models, you may need a utility knife or razor blade to trim a piece of plastic for the new part to fit. If your connector is melted, you will also need wire strippers and crimpers for the new pigtail.
My fan doesn't work at all. Could it still be the resistor?
Yes, a completely failed resistor or a melted connector can cause the fan to stop working on all speeds. However, you should also check the fuse for the HVAC system first before ordering parts.
Does this guide apply to the Sebring Coupe?
No. The 2001-2005 Sebring Coupe was built by Mitsubishi on a different platform and uses completely different HVAC parts. This guide is only for the Sebring Sedan and Convertible models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5191344AA 68018105AA 5143824AA 4596304AB 5166541AA MR398371
Location: Under passenger side dashboard. Attachment: 2 screws (7mm or 8mm). Connector: 4-pin or similar, varies by year. Note: Part design differs significantly between 2001-2006 and 2007-2010 generations.
