Spark Plug Wire Set Guide for 2001-2010 Ford Explorer Sport Trac (V6 Only)
If your 4.0L V6 is running rough, the solution might be simpler than you think.
- This guide is ONLY for the 4.0L V6 engine; the 4.6L V8 uses a different ignition system without wires.
- Symptoms of failure include rough idle, engine misfires, and a check engine light with P030X codes.
- Always replace spark plugs (Motorcraft or NGK are recommended) at the same time as the wires for best results.
- For most owners, OEM Motorcraft or premium aftermarket brands like NGK and Denso offer the best combination of quality and reliability.
Is This Guide for My Truck?
This information is specifically for the 2001-2010 Ford Explorer Sport Trac with the 4.0L SOHC V6 engine. The optional 4.6L V8 engine (available from 2007-2010) uses a Coil-on-Plug (COP) ignition and does not have spark plug wires. If you have the V8, you will need to look for individual ignition coils, not a wire set.
Symptoms of Failing Spark Plug Wires
Worn-out spark plug wires can cause a range of noticeable problems. Because the wires can't deliver a strong, consistent spark, your engine won't run as it should. You might experience:
- Rough Idling: The engine may shake or vibrate more than usual when stopped.
- Engine Misfires: You may feel a hesitation or stumble during acceleration.

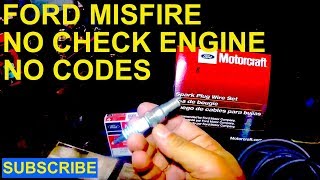

- Check Engine Light: A misfire will often trigger the check engine light. Common codes include a general misfire code (P0300) or cylinder-specific codes (P0301 through P0306). 🎬 Watch how to diagnose a misfire even without a code.
- Poor Fuel Economy: When your engine isn't running efficiently, it burns more fuel.
- Difficulty Starting: Weak spark can make it harder for the engine to start, especially in cold or damp weather.
Known Issues & Recalls
No recalls or specific Technical Service Bulletins (TSBs) were found for spark plug wires on the 2001-2010 Ford Explorer Sport Trac. However, failure of the wires and the main coil pack is a common issue on the 4.0L V6 engine due to age and heat exposure in the engine bay.
Choosing the Right Aftermarket Wire Set
When shopping for new spark plug wires, you'll find several brands. They generally fall into a few quality tiers. For a daily-driven Sport Trac, sticking to OEM-equivalent or quality aftermarket brands is a reliable choice.
OEM & Premium Aftermarket Brands
These brands are known for meeting or exceeding Ford's original specifications. They provide excellent fit, durability, and performance for most owners.
- Motorcraft: This is Ford's own parts brand and the original equipment manufacturer (OEM). You can't go wrong with Motorcraft for a perfect fit and reliable performance. Many owners recommend sticking with OEM parts for the ignition system.
- NGK: A highly respected Japanese brand, NGK wires are considered a top-tier aftermarket option. They are known for excellent materials and construction, often featuring high-temperature silicone jackets.
- Denso: Another top-tier OEM supplier, Denso wires are a reliable choice that many owners trust for quality and longevity.
Quality Aftermarket Brands
These brands offer a good balance of quality and value. They are a solid choice for budget-conscious repairs without sacrificing reliability.
- Standard Motor Products (SMP): A well-known aftermarket manufacturer that produces reliable ignition components.
- Walker Products: Offers quality replacement parts that meet OEM standards.
Performance & Value Brands
These brands serve specific needs, from high-performance applications to basic, budget-friendly replacements.
- Taylor Cable / Granatelli: These brands focus on high-performance applications. They often feature very low resistance for maximum spark energy, which can be beneficial for modified engines but is generally not necessary for a stock 4.0L V6. 🎬 See a performance test comparing Granatelli wires to other brands.
- Prenco: A value-oriented brand that provides a functional replacement for drivers on a tight budget.
Pro Tip: Replace Plugs and Wires Together
It is highly recommended to replace your spark plugs at the same time as your spark plug wires. Old spark plugs with a wide gap can put extra strain on the new wires and the ignition coil, causing them to fail sooner. For the 4.0L V6, owners report the best results with OEM Motorcraft or NGK spark plugs.
Cost of Replacing Spark Plug Wires
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $45 - $74 |
| New OEM (Motorcraft) Wire Set | $40 - $80 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
How often should I replace my spark plug wires?
A general guideline is to inspect them at every major tune-up and consider replacement every 60,000 to 100,000 miles, or whenever you replace the spark plugs. Visually inspect them for cracks, burns, or corrosion.
Is it hard to replace the spark plug wires myself?
For the 4.0L V6, this is a DIY-friendly job with basic hand tools. The key is to replace one wire at a time to avoid mixing up the firing order. Some of the plugs on the passenger side can be difficult to reach from the top, but access is much easier if you go through the passenger-side wheel well.
🎬 Follow this step-by-step guide to replace your plugs and wires.What is dielectric grease and do I need it?
Yes, you should use it. Dielectric grease is a non-conductive silicone grease applied to the inside of the spark plug wire boots. It helps seal out moisture, prevents corrosion, and makes it easier to remove the wires in the future. Most new wire sets come with a small packet.
Are performance wires from brands like Granatelli or Taylor worth it?
For a stock or lightly modified Sport Trac, performance wires are generally not necessary. The benefits of their ultra-low resistance are most noticeable in high-compression or forced-induction (turbo/supercharged) engines. A quality set from Motorcraft or NGK will provide more than enough spark for daily driving.
Helpful Videos
Technical Specifications
OEM Part Numbers: WR-6096 3U2Z-12259-D WR-5978 WR-5996
Set of 6 spark plug wires for the Ford 4.0L SOHC V6 engine. Wires are different lengths for specific cylinders. High-temperature silicone boots and jacket materials are standard for quality replacements.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
