Ford Explorer Sport Trac Starter Motor Guide (2001-2010)
Don't get stranded by a bad starter—here's what every 2001-2010 Sport Trac owner needs to know.
- Always test your battery before replacing the starter; a weak battery is the most common cause of starting problems.
- A single, loud click when you turn the key is the most definitive sign of a failed starter motor.
- The 4.0L V6 and 4.6L V8 engines use different starters; ensure you order the correct part for your vehicle.
- Replacement is moderately difficult due to tight access, but it is a manageable DIY job for those with some mechanical skill.
Is Your Sport Trac Starter Failing?
A bad starter rarely fails without warning. Usually, it gives you signs that it's about to leave you stranded. Paying attention to these symptoms can save you from a tow truck bill. Before assuming the starter is bad, always make sure your battery is fully charged and the battery terminals are clean and tight. A weak battery is the most common cause of starting issues.
Key Symptoms of a Bad Starter:
🎬 Watch: Hear the 3 most common bad starter sounds- Single Loud "Click": You turn the key, hear one solid click, but the engine doesn't crank. This is a classic sign that the starter's solenoid is working, but the motor itself is not. Tapping the starter with a hammer or wrench might get it to work one more time, but replacement is needed.
- Grinding Noise: A harsh grinding sound when you try to start the engine, or just after it starts, is serious. It means the starter gear is not meshing correctly with the flywheel, or there's damage to the teeth on either the starter or the flywheel. This requires immediate inspection.
- Whirring Sound, No Crank: If you hear a high-pitched spinning or whirring noise but the engine isn't turning, the starter motor is spinning but its gear isn't engaging the flywheel. This points to a failed Bendix drive inside the starter.
- No Sound at All: If your dash lights come on but there's complete silence when you turn the key, the problem could be the starter, but it could also be the ignition switch, starter relay, or wiring.
- Intermittent Starting: The truck starts fine some days, but on others, it just clicks. This often happens as the internal components of the starter wear out. Heat can also be a factor, with some starters failing when the engine is hot but working again once it cools down.
Rapid Clicking is Usually Not the Starter
If you hear a fast, repetitive clicking (click-click-click-click), the problem is almost always a dead or weak battery. There's just enough power to activate the starter solenoid over and over, but not enough to turn the heavy engine. Charge or test your battery before replacing the starter.
Choosing the Right Aftermarket Starter
When replacing the starter on your Sport Trac, you have a few options. Since this guide focuses on new aftermarket parts, we'll compare the brands available in that category.
- Motorcraft: This is Ford's own brand. While many Motorcraft parts are new, their starters for this vehicle are often sold as "remanufactured." These are rebuilt to original factory specifications and are the benchmark for fit and quality. They are designed to provide reliable performance, often rated for 50,000 cranks. If you want to guarantee an exact fit without any issues, Motorcraft is the safest choice.
- ACDelco: While traditionally associated with GM, ACDelco produces high-quality aftermarket parts for many makes, including Ford. They are known for adhering to high engineering standards and are a reliable alternative to the OEM part.

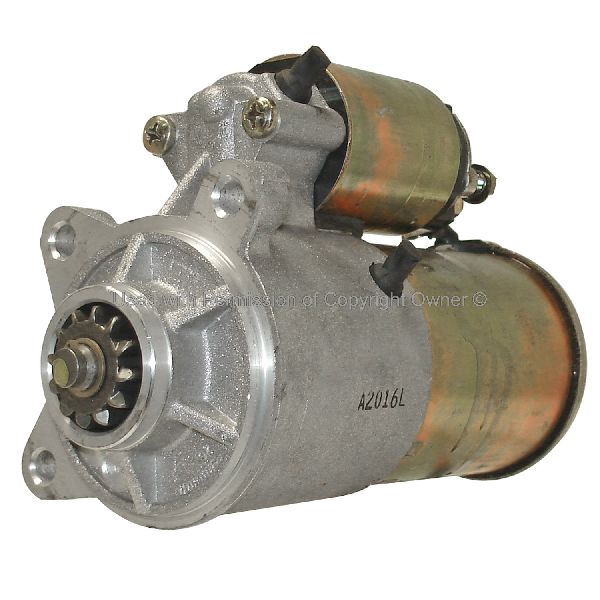

- MPA (Motor Parts of America): MPA is a large supplier of aftermarket starters and alternators, often sold under various store brands. Their parts offer a good balance of value and performance for a daily driver.
Engine Matters: V6 vs. V8
The 2001-2010 Sport Trac came with two main engines: the 4.0L SOHC V6 and, from 2007-2010, the optional 4.6L V8. These engines use different starters. Ensure you are ordering the correct part for your specific engine, as they are not interchangeable.
Cost of Replacing a Ford Explorer Sport Trac Starter
Starter replacement costs can be broken down into parts and labor. You can save significantly by doing the job yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $85 - $186 |
| OEM Remanufactured Starter (Motorcraft) | $217 - $221 |
| Shop Labor | $125 - $183 |
| Total Professional Replacement | $342 - $405 |
Frequently Asked Questions (FAQ)
Is replacing the starter a difficult job?
It's considered moderately difficult. Access is the main challenge. The starter is located on the driver's side for the 4.0L V6, tucked near the exhaust and front driveshaft (on 4x4 models). Some owners report needing to remove a frame dampener or work in a tight space to get the starter out. Basic tools like 10mm and 13mm sockets are required. It's a feasible DIY job for someone with mechanical experience, taking about 1-3 hours.
🎬 Watch this step-by-step 4WD Sport Trac starter replacement guideAre there any recalls or TSBs for the starter?
Searches of NHTSA records and technical service bulletins (TSBs) did not reveal any specific recalls or widespread TSBs for starter motor failure on the 2001-2010 Ford Explorer Sport Trac. Most failures are due to normal wear and tear at higher mileage.
Do I need to replace the starter relay too?
Not usually. The starter relay is a separate component that rarely fails. If your primary symptom is a single, loud click from the engine bay when you turn the key, the problem is most likely the starter motor or its attached solenoid, not the relay in the fuse box.
What's the most common mistake when ordering?
The most common mistake is ordering a starter for the wrong engine. The 4.0L V6 and 4.6L V8 use different parts. Always verify your engine size before purchasing. The second mistake is not confirming your battery's health first. 🎬 See how to test your Ford starter before buying parts Many starters are replaced needlessly when the actual problem was a weak battery.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L2Z-11002-C 5L2T-11000-AA 6L2Z-11V002-CRM SA-1000-RM F89Z-11002-BA
Voltage: 12V. Power Rating: 1.4 KW. Rotation: Clockwise. Teeth: 10. Note: Specifications may vary between V6 and V8 models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
