Volvo S60 A/C Expansion Valve Guide (2001-2010): Symptoms and Replacement Costs
If your S60's air conditioning is blowing warm or acting erratically, the A/C expansion valve could be the problem.
- First, rule out the common A/C compressor clutch gap issue on your S60, as it has similar symptoms and is a much cheaper fix.
- Replacement is not a DIY job as it requires expensive, specialized A/C service equipment for handling refrigerant.
- Always replace the receiver/drier and all associated O-rings at the same time as the expansion valve to ensure a lasting repair.
- A faulty expansion valve can lead to catastrophic A/C compressor failure, so it should be addressed promptly.
Is Your S60's A/C Expansion Valve Failing?
A faulty A/C expansion valve can cause a range of frustrating cooling problems. Because it controls refrigerant flow, symptoms can vary depending on whether it's stuck open, closed, or is just operating poorly. Before assuming the valve is bad, it's important to rule out other common Volvo A/C issues.
First, Check Your A/C Compressor Clutch Gap
A very common issue on the 2001-2010 S60 is an excessive A/C compressor clutch air gap. This causes symptoms identical to a bad expansion valve: the A/C works for a while, then blows warm air, especially when the engine bay is hot. This is often a much cheaper and easier fix that doesn't require opening the A/C system. Investigate the "clutch shim fix" for your S60 🎬 Watch: How to diagnose common Volvo A/C clutch issues before replacing other components.
Common Symptoms of a Bad Expansion Valve
- Warm or Inconsistent Air: The most frequent sign is warm air blowing from the vents, or air that cycles between cool and warm. This can happen if the valve is stuck, restricting refrigerant flow.
- A/C Compressor Short-Cycling: You may hear the A/C compressor clutch engaging and disengaging every 10-15 seconds. A forum user with a 2001 S60 noted this was caused by a blocked expansion valve creating a pressure spike that tripped the compressor's safety switch.
- Frost on A/C Parts: A valve stuck open can allow too much refrigerant into the evaporator, causing it to get too cold and accumulate frost. You might see frost on the A/C lines near the firewall. Conversely, a valve that's clogged or stuck closed can sometimes develop frost on the valve body itself.
- A/C Compressor Runs Constantly: If the valve is stuck open, it may not send the correct pressure signals, causing the compressor to run continuously without cycling off.
Choosing the Right Aftermarket Expansion Valve
When replacing the expansion valve, you have several options. While a Genuine Volvo part is always a safe bet, quality aftermarket brands can offer good performance for a lower price. It is critical that the new valve is calibrated correctly for your S60's system to ensure proper cooling and prevent damage to the new A/C compressor.
- Genuine Volvo: This is the original equipment manufacturer (OEM) part. It guarantees perfect fit and performance but comes at the highest cost.

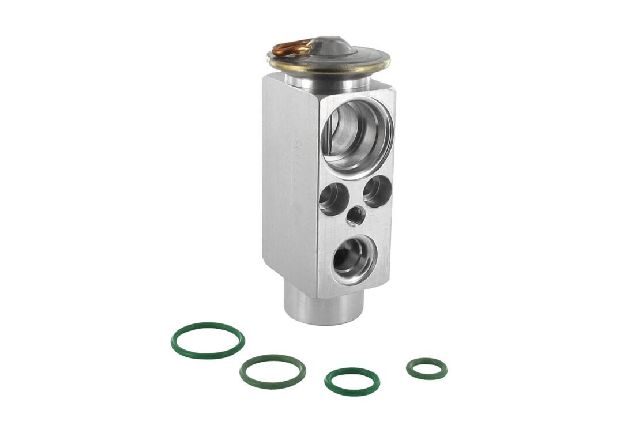

- Premium Aftermarket (e.g., Nissens, Vemo): Brands like Nissens focus on engineering their valves to match OE specifications for superheat and pressure, which is crucial for system health and longevity. They are a reliable alternative to OEM.

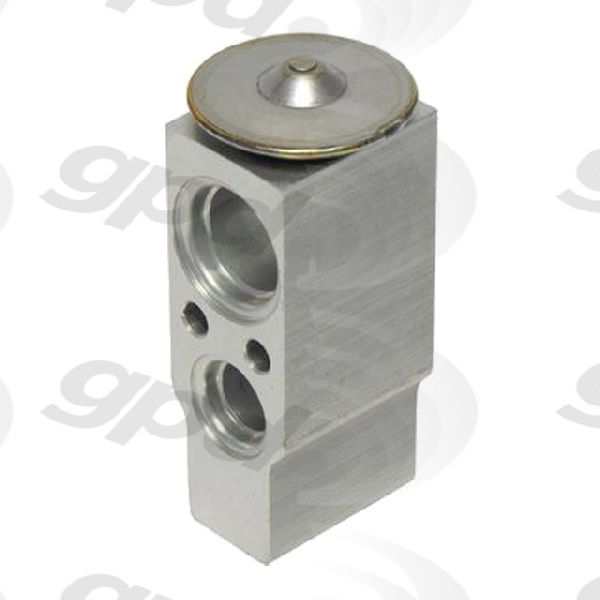

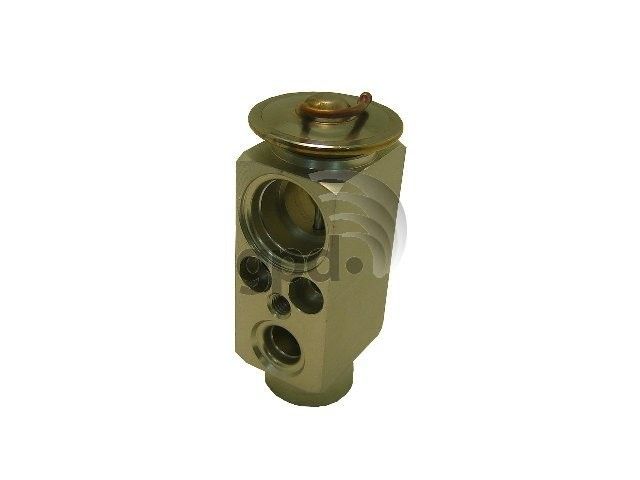

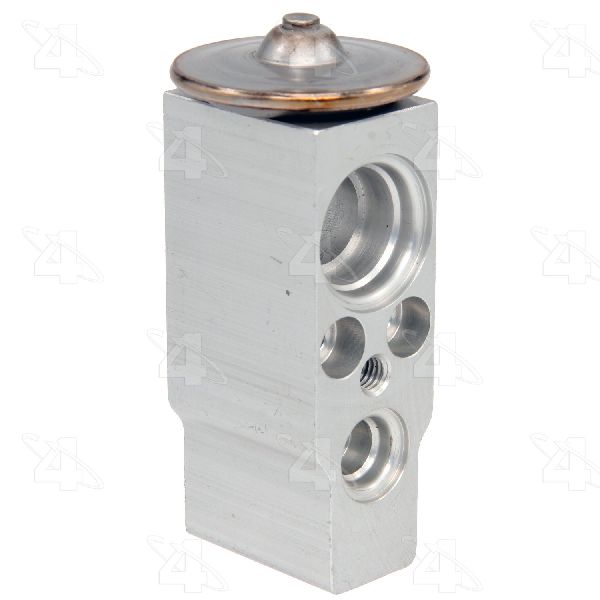

- Standard Aftermarket (e.g., Four Seasons, Global Parts): These brands are widely available and are often the most affordable. Four Seasons is a major supplier of climate control parts. While they can be a good value, quality can sometimes be inconsistent across different part types. Always ensure the part comes with new O-rings. 🎬 See this general walkthrough of the expansion valve replacement process
Pro Tip: Always replace the receiver/drier (also called the accumulator) and all O-rings whenever you replace the expansion valve. The receiver/drier contains a desiccant that absorbs moisture, and it becomes saturated once the system is opened to the air. Skipping this step can lead to moisture and debris ruining your new parts and causing a repeat failure.
A/C Expansion Valve Replacement Costs for Volvo S60 (2001-2010)
Replacing the expansion valve is a labor-intensive job. The part itself is relatively inexpensive, but the process requires specialized equipment to handle the refrigerant. The total cost will be a combination of the part, shop labor, and the cost of an A/C system evacuation and recharge service.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Expansion Valve | $34 - $85 |
| New Genuine Volvo Expansion Valve | $75 - $215 |
| Shop Labor | $190 - $280 |
| A/C Evacuate & Recharge Service | $100 - $200 |
| Total Estimated Cost | $325 - $565+ |
Frequently Asked Questions
Can I replace the A/C expansion valve myself?
This is not recommended for most DIY mechanics. The job requires legally mandated refrigerant recovery and recycling equipment, plus a vacuum pump and manifold gauges for a proper installation. Failure to pull a deep vacuum on the system after installation will leave moisture in the lines, leading to poor performance and corrosion.
Where is the expansion valve on a 2001-2010 Volvo S60?
The expansion valve is located on the vehicle's firewall in the engine compartment, where the two refrigerant lines enter the cabin. On the S60, you will likely need to remove the upper engine strut brace and the plastic turbo charge pipe that runs over the engine to gain access.
Are there any recalls for the S60 expansion valve?
No. While there was a service campaign for an incorrectly adjusted valve on some 2012 models, no recalls or specific TSBs were found for the 2001-2010 Volvo S60 A/C expansion valve.
What happens if I don't replace a bad expansion valve?
You will continue to have poor or no air conditioning. More seriously, a malfunctioning valve can cause the A/C compressor to work improperly, potentially leading to slugging (liquid refrigerant entering the compressor) or lubrication issues that can cause the compressor to fail prematurely. This turns a moderate repair into a very expensive one.
🎬 Watch: A helpful guide to replacing the Volvo A/C compressorHelpful Videos
Technical Specifications
OEM Part Numbers: 31101177
Block-type thermal expansion valve (TXV). Requires new O-rings for installation. Located at the firewall in the engine bay.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
