A Guide to Engine Head Bolts for the 2001-2012 Chevrolet Silverado 3500 HD
Replacing your Duramax head gaskets? Here’s what you need to know about the critical head bolts that must be replaced at the same time.
- Head bolts on the 2001-2012 Silverado 3500 HD are Torque-to-Yield (TTY) and MUST be replaced whenever the head gaskets are changed.
- Symptoms like overheating and coolant loss are signs of head gasket failure, which necessitates bolt replacement.
- For a stock engine, high-quality aftermarket bolts from brands like Fel-Pro or Victor Reinz are a reliable choice.
- This is a complex, professional-level repair with very high labor costs; do not attempt it without advanced mechanical expertise.
Understanding Head Bolt Replacement on Your Silverado HD
If you're shopping for a new engine cylinder head bolt set, it’s almost certain you’re in the middle of a head gasket replacement. On the 2001-2012 Silverado 3500 HD, particularly those with the 6.6L Duramax engine, the head bolts themselves are not a common failure point. Instead, the head gaskets are known to fail over time due to heat, mileage, or design weaknesses in earlier models. However, because the original bolts are Torque-to-Yield (TTY), they are designed to be used only once and must be replaced as part of the head gasket job. Reusing old head bolts will result in improper clamping force, leading to repeat head gasket failure and potential catastrophic engine damage.
Symptoms of Head Gasket and Head Bolt Failure

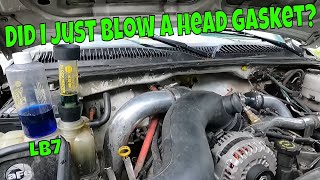

The signs that you need to replace your head bolts are the symptoms of a failing head gasket. If you notice any of these, the engine should be inspected by a professional immediately. 🎬 Watch: How to diagnose head gasket failure with the bottle test. Driving with these symptoms can lead to severe engine damage.
- Unexplained Coolant Loss: Your coolant level drops, but you can't find any visible leaks on the ground.
- Over-Pressurized Cooling System: The upper radiator hose feels rock-hard even hours after the engine has cooled. When you open the coolant reservoir cap, a rush of air escapes.
- Engine Overheating: The temperature gauge climbs, especially when towing or under heavy load.
- White Smoke from Exhaust: This indicates that coolant is burning in the combustion chamber.
- Heater Blows Cold Air: Air pockets from combustion gases get trapped in the heater core, which is the highest point in the cooling system.
This is Not a DIY Repair
Replacing the head gaskets and bolts on a Duramax engine is a massive undertaking. It requires specialized tools, extensive knowledge, and often involves lifting the cab off the frame for access. The job is estimated to take between 30 and 40 hours for a professional technician. This repair should not be attempted by a DIY mechanic unless they have advanced experience.

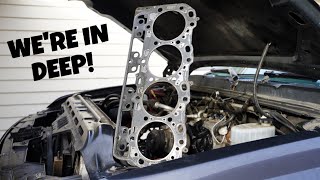

🎬 See this walkthrough of a full Duramax engine teardown.Choosing the Right Aftermarket Head Bolt Set
For a critical job like this on a heavy-duty truck, the quality of your replacement bolts matters. While factory bolts are generally reliable for stock engines, high-quality aftermarket options are just as good, and sometimes included in comprehensive head gasket kits.
- Tier 1 (Recommended): Fel-Pro, Victor Reinz. These brands are well-known, trusted names in the gasket and engine sealing industry. Both are considered OEM-quality and are a reliable choice for a stock or lightly modified truck. Many professional head gasket kits will include gaskets and bolts from one of these manufacturers.
- Tier 2 (Budget): Apex, Pioneer Cable. Less information is available regarding the performance of these brands specifically for Duramax diesel applications. While they offer a lower price point, head bolts are not a component where you want to cut corners. Given the extreme labor costs of the job, saving a small amount on budget bolts is a significant risk if they fail to hold torque properly.

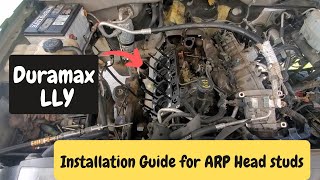

Pro Tip: Many owners of modified or heavy-towing Duramax trucks choose to upgrade from TTY bolts to engine head *studs* from a brand like ARP. Studs provide more even clamping pressure and are reusable. However, for a stock truck, a quality new set of TTY bolts is perfectly adequate.
Estimated Costs for Head Bolt Replacement
The bolts themselves are a small fraction of the total cost. The majority of the expense is shop labor for the head gasket replacement.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Head Bolt Set | $44 - $121 |
| New OEM Head Bolt Set | $150 - $250 |
| Shop Labor (Head Gasket Job) | $3,500 - $8,000+ |
| Head Machining (Recommended) | $400 - $800 |
Frequently Asked Questions
Can I reuse my old head bolts to save money?
No. Absolutely not. The factory bolts are Torque-to-Yield (TTY) and are permanently stretched during their first use. They cannot provide the correct clamping force a second time and will lead to a quick and costly repeat failure of the head gaskets.
What is the difference between head bolts and head studs?
Head bolts screw into the engine block and are torqued from the head of the bolt. Head studs are threaded rods that are installed into the block first. The cylinder head is then placed over the studs, and nuts are used to apply torque. Studs are generally considered superior for high-performance applications as they provide more accurate and even clamping force and are typically reusable.

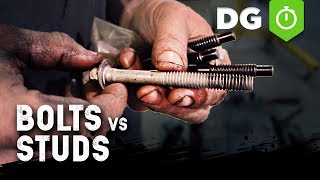

🎬 Watch: A detailed comparison of head studs versus head bolts.If the head gasket failed, why do the bolts need to be replaced?
To replace the head gasket, the cylinder head must be removed. Any time the head is removed, the single-use TTY head bolts must be discarded and replaced with a new set to ensure proper sealing upon reassembly.
Are there any recalls for head bolts on these trucks?
No, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from GM for failing head bolts on the 2001-2012 Silverado 3500 HD. The common issue in this system is the head gasket itself, not the factory bolts.

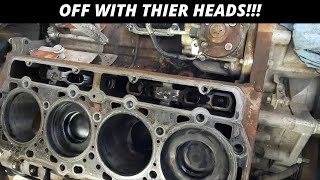

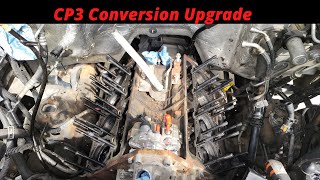

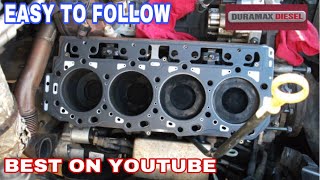

Helpful Videos
Technical Specifications
Bolt Type: Torque-to-Yield (TTY), Single-Use. A full set for a V8 engine includes 36 bolts (18 per cylinder head).
