A Dodge Caravan Owner's Guide to Rear Drum Brake Wheel Cylinders (2002-2007)
A soft brake pedal or fluid leak on your Caravan could mean it's time to replace the rear wheel cylinders.
- A soft brake pedal and visible fluid leaks behind the rear wheels are the most common signs of a failed wheel cylinder on a 2002-2007 Caravan.
- This is a critical safety issue; do not continue to drive if you suspect a brake fluid leak.
- Always replace wheel cylinders in pairs (both rear wheels) to ensure even braking performance.
- If the old cylinder leaked fluid, you must also replace the brake shoes as they are contaminated.
Symptoms of a Bad Wheel Cylinder on a 2002-2007 Caravan
A failing wheel cylinder is a serious safety issue. If you notice any of these signs, you should get your brakes inspected immediately.
🎬 Watch this video to help diagnose a bad wheel cylinder.- Soft or Spongy Brake Pedal: This is the most common symptom. If the pedal feels mushy or sinks to the floor when you press it, it's a clear sign of a hydraulic leak in the brake system, often from a wheel cylinder.
- Visible Brake Fluid Leak: Look for wetness on the inside of the rear wheels or on the backing plate behind the wheel. Leaking fluid can soak the brake shoes, which ruins them and reduces braking ability.
- Pulling to One Side When Braking: If one wheel cylinder fails before the other, it can cause an imbalance in braking force, making your van pull to one side.
- Dragging or Locked Rear Brakes: Rust and corrosion can cause the pistons inside the cylinder to get stuck. This can keep the brake shoes pressed against the drum, leading to a burning smell, excess heat from the rear wheels, and poor fuel economy.
Safety First: Brake Issues Are Critical
Any problem with your braking system should be taken seriously. A failing wheel cylinder can lead to a complete loss of braking power. Do not delay inspection and repair.
Choosing the Right Aftermarket Wheel Cylinder
For a 2002-2007 Dodge Caravan, aftermarket wheel cylinders are a cost-effective and reliable choice. The original OEM parts are not necessarily higher quality for a component like this, and several reputable aftermarket brands offer parts that meet or exceed original specifications. When choosing, consider these brands:

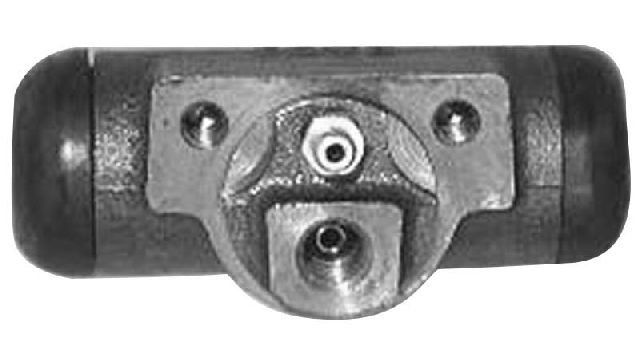

- Centric: A widely used and generally respected brand for brake components. They offer multiple product lines, and their parts are considered a solid, reliable replacement for daily driving.

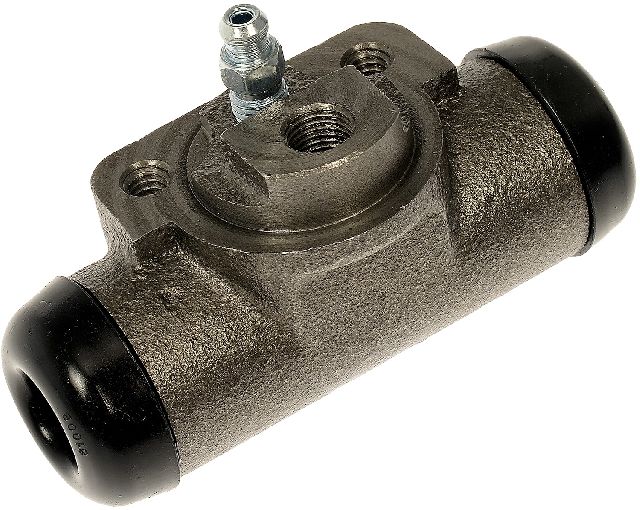

- Dorman: Known for having a huge catalog of parts. While some forum users have reported fitment issues on other vehicles with Dorman parts, they are a common replacement option. For a simple part like a wheel cylinder, they are generally considered acceptable.

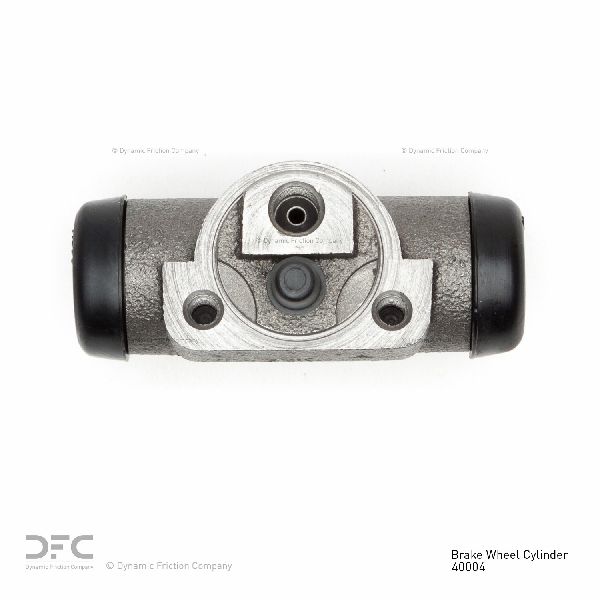

- Dynamic Friction (DFC): A company focused on braking systems. They market their parts as being 100% pressure tested and designed to meet OE specifications. They are a good quality choice.

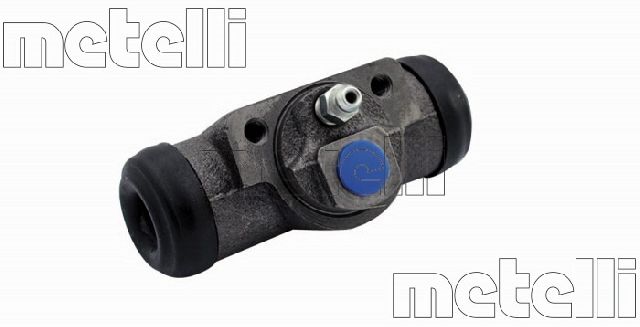

- Metelli: An Italian manufacturer that supplies parts for both OEM and aftermarket applications. They are known for quality manufacturing and are a strong contender if available for your Caravan.
Pro Tip: Replace in Pairs
It is highly recommended to replace both rear wheel cylinders at the same time. If one has failed due to age and wear, the other is likely not far behind. This ensures even braking performance and saves you from having to do the same job twice.
Expected Costs for Replacement
| Part Type | Cost Range |
|---|---|
| New Aftermarket Wheel Cylinder (per part) | $18.75 - $31.73 |
| Shop Labor | $95 - $150 |
| Total Professional Replacement (Pair) | $130 - $215+ |
Note: Costs are estimates and can vary based on your location and the specific repair shop. Labor costs often include bleeding the brake system, which is required after replacement.
Frequently Asked Questions
Do I need to replace my brake shoes if I replace the wheel cylinder?
If the wheel cylinder has leaked brake fluid onto the brake shoes, you absolutely must replace the shoes. The fluid soaks into the friction material and cannot be cleaned off, which will severely reduce their ability to stop the vehicle. It's also a good time to inspect the brake drum and hardware for wear.
Is this a difficult DIY job for a Caravan owner?
For a DIY mechanic with some experience, this is a manageable job. However, it involves opening the hydraulic brake system, which must be properly bled afterward to remove all air. Rusted brake lines and bolts can also make the job much more difficult. If you are not comfortable with brake work, it is best to leave this job to a professional.
🎬 See how to replace a Dodge Caravan wheel cylinder yourself.Were there any recalls on the 2002-2007 Caravan for wheel cylinders?
No, searches of the NHTSA database did not show any specific recalls for the drum brake wheel cylinders on the 2002-2007 Dodge Caravan. There were other brake-related recalls for different components or model years, but not for this specific part and year range.
What is a brake system bleed and why is it necessary?
When you replace a wheel cylinder, air enters the brake lines. Air is compressible, unlike brake fluid, and will cause a spongy pedal and poor braking. Bleeding the brakes is the process of forcing fresh fluid through the lines to push all the air out, ensuring a firm pedal and safe operation.
Helpful Videos
Technical Specifications
Requires DOT 3 brake fluid. Replacement involves opening the hydraulic system, which must be bled of air afterward.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
