Saturn Vue V6 Engine Timing Belt: A Complete Guide for 2002-2007 Owners
Learn which Saturn Vue V6 engine you have and why replacing the timing belt as a complete kit is critical to avoid engine damage.
- Only 2002-2003 3.0L V6 and 2004-2007 3.5L V6 engines have a timing belt; all other engines use a timing chain.
- These are interference engines; a broken belt will cause catastrophic engine failure.
- Always replace the timing belt, water pump, tensioner, and idlers together as a complete kit.
- The recommended replacement interval is every 60,000-100,000 miles or 7 years.
Engine Identification: Does Your Vue Have a Timing Belt or Chain?
Before buying any parts, you must know which engine is in your Saturn Vue. Not all models use a timing belt. This guide is only for the V6 engines listed below.
| Model Years | Engine | Timing System | Key Fact |
|---|---|---|---|

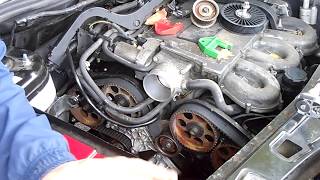

| 2002-2003 | 3.0L V6 (L81) | Timing Belt | This is an Opel-designed interference engine. | 🎬 Watch: Helpful timing belt tips for 2002-2003 V6 models
| 2004-2007 | 3.5L V6 (L66) | Timing Belt | This is a Honda-sourced (J35) interference engine. |
| 2002-2007 | 2.2L 4-Cylinder | Timing Chain | Does not have a timing belt. |
| 2008 | All Engines | Timing Chain | The 2008 model is a different generation; its engines use timing chains. |
Interference Engine Warning

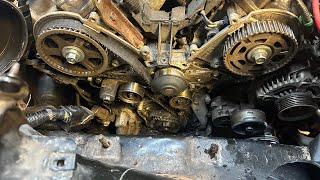

Both the 3.0L and 3.5L V6 engines are interference designs. If the timing belt breaks or slips, the pistons will strike the valves, causing severe internal engine damage that often costs more to repair than the vehicle is worth. 🎬 See what happens when an interference engine belt breaks This is why replacing the belt on schedule is not optional.
Choosing the Right Aftermarket Timing Belt Kit
When replacing your timing belt, it is essential to replace all related wear components. Do not just replace the belt itself. A complete timing belt kit is the correct and safe way to perform this service. A quality kit should include the belt, a water pump with a gasket, a hydraulic tensioner, and the idler and tensioner pulleys.
Aftermarket Brand Tiers

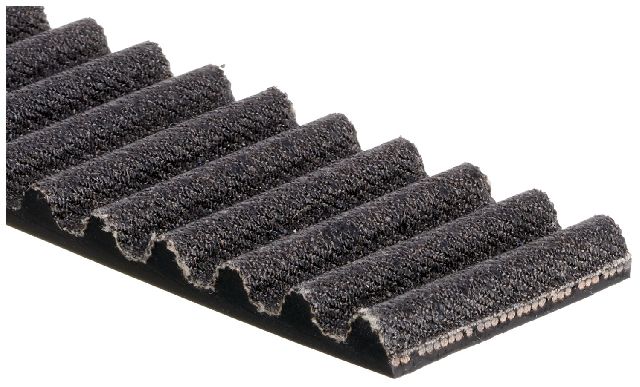

- Premium OE-Quality Brands (Gates, Aisin, Continental, INA): These brands are often the original equipment manufacturers for Honda and other automakers. Aisin is particularly well-regarded for its water pumps for the Honda 3.5L engine. Gates and Continental kits offer high-quality belts and components that meet or exceed OEM standards.

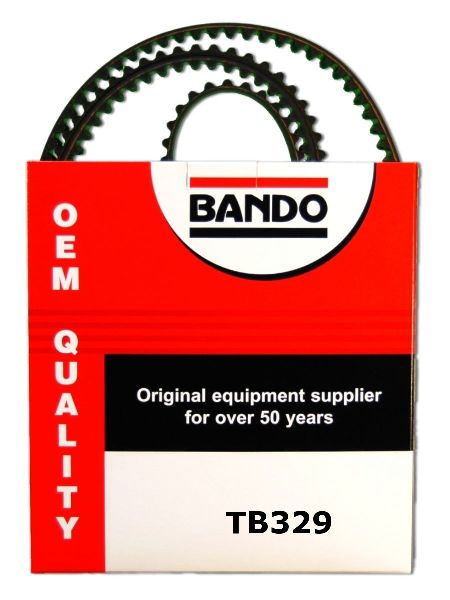

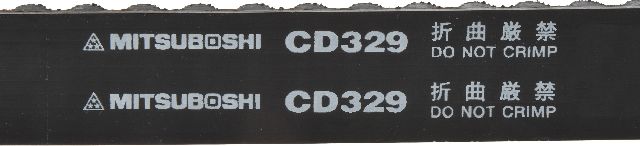

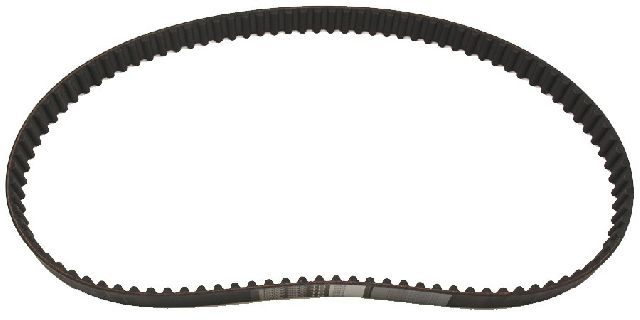

- Reputable Aftermarket Brands (Dayco, Cloyes, Mitsuboshi, Bando): These brands provide reliable, quality parts that are a good balance of performance and value. Dayco and Cloyes are well-known in the North American aftermarket. Mitsuboshi and Bando are often OEM suppliers for Japanese vehicles, making them an excellent choice for the 3.5L Honda engine.
Pro Tip: Mix and Match for the Best Result
Many experienced mechanics and Saturn Vue owners with the 3.5L Honda V6 recommend using a timing belt kit from a brand like Gates but purchasing an Aisin-branded water pump separately. While kit components are generally reliable, Aisin water pumps have an exceptional reputation for longevity on these specific engines.
Estimated Replacement Costs
The majority of the cost for this job is labor, as it is a complex and time-consuming repair. Prices can vary significantly based on your location and the repair shop.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Belt Kit | $90 - $195 |
| Shop Labor | $400 - $900 |
| Total Estimated Cost | $490 - $1,100+ |
Frequently Asked Questions (FAQ)
How often should I replace the timing belt on my Saturn Vue V6?
The generally accepted replacement interval for both the 3.0L and 3.5L V6 engines is every 60,000 to 100,000 miles, or every 7 years, whichever comes first. If you have purchased a used Vue and do not have service records, it is safest to assume the belt needs to be replaced.
Do I have to replace the water pump with the timing belt?
Yes. The water pump is driven by the timing belt and is located behind the timing cover. Replacing it at the same time as the belt saves you from paying for the same difficult labor twice. A water pump failure can also ruin the new timing belt, leading to catastrophic engine damage.
Can I replace the timing belt myself?
This is an advanced, high-stakes repair. It requires removing an engine mount, and special tools like a crankshaft pulley holder are often needed, especially for the 3.5L Honda engine. Mistakes can lead to complete engine destruction. This job is best left to experienced DIY mechanics or a professional shop.
🎬 Watch a complete step-by-step timing belt replacement walkthroughWere there any recalls for the Saturn Vue timing belt?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no safety recalls for the timing belt, pulleys, or water pump on 2002-2007 Saturn Vue models.
Helpful Videos
Technical Specifications
OEM Part Numbers: TCKWP329 TKH002 TB285K2 TCK285
Vehicle and engine-specific. The 3.0L V6 (L81) and 3.5L V6 (J35) use different belts and components. Always verify the correct kit for your specific year and engine.
