Chevrolet Trailblazer Ignition Lock Cylinder Guide (2002-2009)
Your key is stuck or won't turn in your Trailblazer ignition? Here is what you need to know before you buy a new part.
- The main symptom of a bad lock cylinder is purely mechanical: the key is physically hard to turn or gets stuck.
- This part is NOT the electronic ignition switch; if you have electrical issues like stalling, you need a different part.
- Replacement is very easy IF your key can still turn to the 'ON' position to access the release pin.
- After replacement, you must perform a 30-minute Passlock™ security relearn procedure for the vehicle to start.
Is Your Trailblazer's Ignition Lock Cylinder Failing?
If your key is suddenly hard to turn, gets stuck, or won't turn at all, the problem is likely the ignition lock cylinder. This is the mechanical tumbler that your key slides into. Over thousands of key turns, the small metal pins (tumblers) inside the cylinder wear down. Eventually, they no longer align correctly with your key, causing the cylinder to bind or seize. This is a very common issue on the 2002-2009 Chevrolet Trailblazer.
Lock Cylinder vs. Ignition Switch: Know the Difference
It is critical to understand that the Ignition Lock Cylinder and the Ignition Switch are two separate parts on your Trailblazer.
- Lock Cylinder: The mechanical part your key goes into. Symptoms are physical: key won't turn, key is stuck, key is hard to insert/remove.
- Ignition Switch: The electronic part behind the cylinder. Symptoms are electrical: car stalls, no-start with a 'click', radio and A/C die at the same time.
If you are having electrical problems, you likely need an ignition switch, not a lock cylinder.
Common Failure Symptoms
- Key is difficult to turn: You may have to jiggle the key or wiggle the steering wheel to get the ignition to turn. This is the first sign of wear.
- Key gets stuck: The key turns the vehicle on but gets stuck in the 'ON' position, or you cannot remove it after turning the vehicle off.
- Key won't turn at all: The cylinder is completely seized, and the key will not rotate from the 'OFF' or 'LOCK' position. This leaves you stranded.
Choosing the Right Aftermarket Ignition Lock Cylinder
For a common part like this, aftermarket brands offer reliable quality that often meets or exceeds the original. The main difference is often the brand name and what comes in the box. All listed brands are well-regarded choices for this repair.
Brand Tiers for Trailblazer Ignition Lock Cylinders:
- ACDelco: As GM's official parts brand, ACDelco is a trusted choice that offers a direct, OE-spec replacement. They are known for precise tumbler machining for smooth operation. You can be confident in the fit and function.
- Dorman: Dorman is a major aftermarket manufacturer known for creating quality replacements. They sometimes engineer fixes for common OEM problems and their parts are widely available. For some applications, Dorman kits may even include tools to help with programming.
- Standard Ignition (SMP): With over 100 years in the business, Standard Motor Products is a brand many professional technicians trust. They are known for using high-quality materials like solid brass tumblers and die-cast zinc cores to ensure durability.
Pro Tip: The Passlock™ Relearn Procedure
Your Trailblazer is equipped with a GM Passlock™ anti-theft system. After you replace the ignition lock cylinder, the truck may not start because the security system doesn't recognize the new component. You will need to perform a 30-minute security relearn procedure. It's simple to do:
- Turn the key to ON (but don't start the engine) and wait 10-11 minutes until the security light on the dash turns off.
- Turn the key OFF for 10 seconds.
- Repeat steps 1 and 2 two more times (for a total of three cycles).
- After the third cycle, the vehicle should start and run normally.
Cost of Replacing an Ignition Lock Cylinder
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Cylinder | $73.82 - $78.14 |
| New OEM Cylinder | $100 - $160 |
| Shop Labor | $75 - $150 |
| Total Professional Repair | $175 - $310 |
Costs are estimates and can vary by location and vehicle condition. Labor costs assume the key is not seized and can be turned.
Frequently Asked Questions
Was the Trailblazer part of the big GM ignition recall?
No. The 2002-2009 Chevrolet Trailblazer was NOT part of the highly publicized GM ignition switch recall that affected cars like the Cobalt and Saturn Ion. Those vehicles had a different problem where the ignition could shut off while driving. While the Trailblazer's ignition components can fail, it is not related to that specific safety recall.
What do I do if my key is completely stuck and won't turn?
If your key will not turn at all, you cannot use the simple release pin to remove the cylinder. At this point, the repair becomes more difficult. Some owners have had success with persistent jiggling or using a lubricant spray, but often the cylinder must be drilled out or the steering column disassembled. This is a situation where calling a professional locksmith or mechanic is recommended.
Can I use my old keys with the new lock cylinder?
No. A new ignition lock cylinder will come with a new set of keys that are matched to its internal tumblers. You will have one key for the ignition and a separate, original key for the doors and trunk, unless you have a locksmith re-key the new cylinder to match your old key.
How hard is it to replace the ignition lock cylinder myself?
If your key can still turn to the 'ON' position, the replacement is very easy and is a great DIY job for a beginner. It involves removing a few plastic covers and pressing a release pin. The entire process can take less than 30 minutes, plus the 30-minute security relearn time. However, if the key is seized, the difficulty increases significantly.

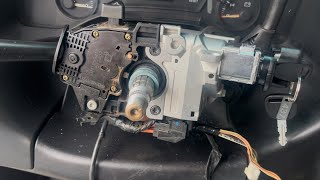

Helpful Videos
Technical Specifications
OEM Part Numbers: D1405D D1411G
This is the mechanical tumbler assembly located in the steering column. It is a separate component from the electronic ignition switch. New aftermarket units come with a new set of keys.
