A Ford Mechanic's Guide to the 2002-2009 E-150 Accessory Drive Belt Idler Pulley
Stop that annoying engine squeal and protect your van's essential accessories by choosing the right replacement idler pulley.
- A chirping or grinding noise from the engine is the primary symptom of a failing idler pulley.
- Ignoring a bad pulley can leave you stranded when the belt breaks.
- It is strongly recommended to replace the belt, tensioner, and idler pulley at the same time.
- High-quality aftermarket brands like Gates, Dayco, or Continental are excellent choices for this part.
Is Your E-150's Idler Pulley Failing?
A failing idler pulley isn't subtle. The bearing inside the pulley wears out, and it will let you know it's time for a replacement. Ignoring it can lead to the pulley seizing, which shreds the serpentine belt and leaves you stranded without power steering or a charging system.
Symptoms of a Bad Idler Pulley:
- Chirping or Squealing Noises: The most common sign is a high-pitched chirp or squeal from the front of the engine. This noise often gets worse when the engine is cold and may change as you rev the engine.
- Grinding or Rumbling: As the bearing inside the pulley deteriorates further, the noise can turn into a grinding or rumbling sound, indicating a 🎬 Listen to the difference before and after replacing a noisy pulley. more serious failure is imminent.
- Visible Wobble: With the engine running, you may be able to see the pulley wobbling instead of spinning smoothly. Do not 🎬 Watch this guide to help you diagnose a bad bearing. place your hands near the moving belt or pulleys.
- Damaged Serpentine Belt: A bad pulley can cause the edges of your serpentine belt to fray or wear unevenly.
Critical Failure Warning
If the idler pulley bearing seizes completely, the serpentine belt will break. This will cause an immediate loss of power steering, and your battery will stop charging. Your engine may also overheat. Pull over safely as soon as this happens.
Choosing the Right Aftermarket Idler Pulley
For a part like this on an E-150, a high-quality aftermarket pulley is a solid choice and can be as good as, or even better than, the original. The original Motorcraft pulleys were often made of plastic, while some aftermarket replacements use steel, which many mechanics prefer. The most important factor is the quality of the bearing inside the pulley.
Brand Quality Tiers

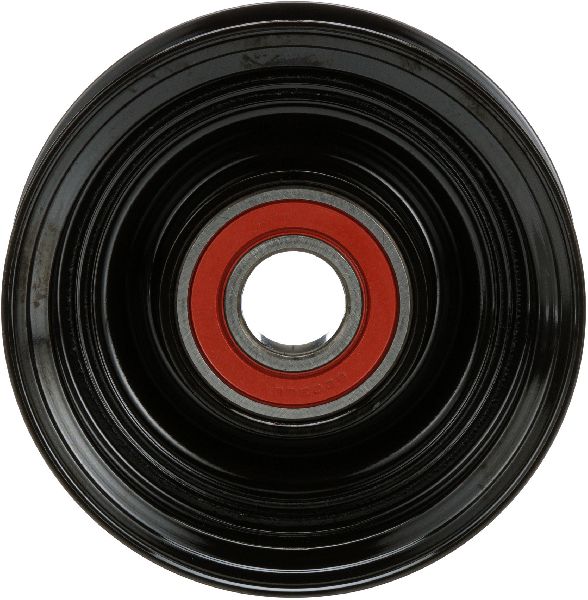

- Premium Brands (Gates, Continental, Dayco): These companies are often original equipment (OEM) suppliers to Ford and other automakers. They are trusted names in the industry. Gates is frequently recommended by mechanics for its quality and durability. Dayco is also a known Ford supplier and a reliable choice.
- Standard Brands (Hayden, Four Seasons): These brands offer a good balance of quality and price. They are a dependable option for a daily-driven work van.

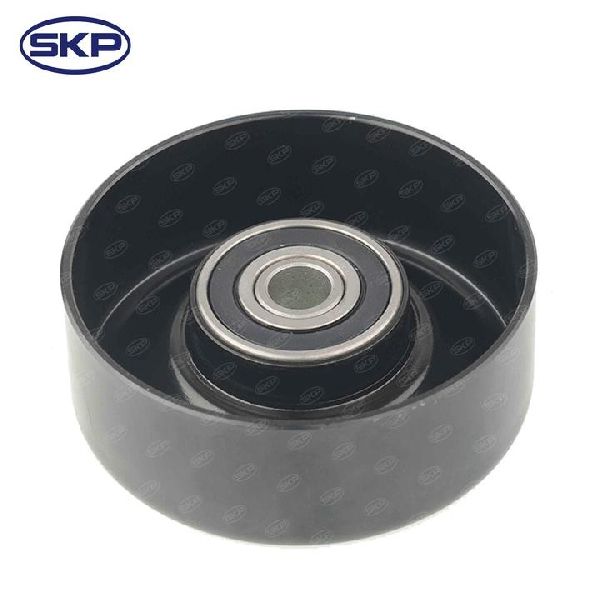

- Economy Brands (Dorman, Skyward): Dorman offers a wide range of parts and can be a budget-friendly choice, though professional mechanics sometimes have mixed reviews on consistency. Skyward and other private-label brands are typically the most affordable but may not have the same long-term durability as premium brands.
Pro Tip: Replace as a Kit
If your idler pulley has failed, the belt tensioner and the serpentine belt itself have been subjected to the same age and conditions. It is highly recommended to replace the idler pulley, the belt tensioner, and the serpentine belt all at the same time. This prevents you from having to do the same job again in a few months when another part fails.
Known Issues for the 2002-2009 Ford E-150
Searches for official recalls or Technical Service Bulletins (TSBs) from Ford specifically for the idler pulley on this generation of E-150 vans did not show any results. Failure of this part is considered normal wear and tear. The most common issue reported by owners in forums is simply the noise from a worn-out bearing.
Cost of Replacing the Idler Pulley
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Idler Pulley | $10 - $57 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement | $85 - $207 |
Cost estimates are for the pulley only and do not include replacing the belt or tensioner. Labor costs vary by location.
Frequently Asked Questions
What's the difference between an idler pulley and a tensioner pulley?
An idler pulley is a simple, free-spinning pulley that only guides the belt. A tensioner pulley is attached to a spring-loaded arm that automatically keeps the correct amount of tension on the belt. They look similar, but the tensioner is part of a larger assembly.
How many idler pulleys does my E-150 have?
Most 4.6L and 5.4L E-150s of this era have one or two idler pulleys. The exact number depends on your van's specific options (like with or without A/C). It's always best to check the belt routing diagram under your hood or look at the engine to confirm before ordering parts.
Is this a difficult job to do myself?
For a DIYer with the right tools, this is a manageable job. The main challenge in an E-Series van is the tight access. You will likely need to remove the engine cover ('doghouse') inside the van and the air cleaner assembly to reach the pulleys. You 🎬 See this walkthrough for replacing the tensioner and idler pulley. will also need a serpentine belt tool or a long breaker bar to release the belt tension.
Can I just replace the bearing inside the pulley?
While it is technically possible to press the old bearing out and a new one in, it's not common practice. Given the low cost of a complete new pulley assembly, it is faster, easier, and generally more reliable to replace the entire unit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1L2Z6B209AA YS-315
The 2002-2009 E-150 uses a single serpentine belt for all accessories. The idler pulley is a non-tensioned, free-spinning pulley. Depending on the 4.6L or 5.4L engine configuration and A/C option, there may be one or two idler pulleys. The pulley is typically held on by a single bolt.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
