GMC Envoy (2002-2009) HVAC Blower Motor Resistor Guide
If your Envoy's fan speeds are missing or only work on high, this guide will help you fix it right the first time.
- The most common symptom is the fan only working on high speed.
- Always inspect the wiring connector for melting; if damaged, it MUST be replaced.
- To prevent repeat failure, it is strongly recommended to replace the blower motor along with the resistor.
- Verify if you have manual or automatic climate control before ordering, as the parts are different.
Symptoms of a Failing Blower Motor Resistor
When the blower motor resistor in your 2002-2009 GMC Envoy starts to fail, the signs are usually obvious. Because this part is a known weak point, you'll likely experience one or more of these issues. The most common problem is having the fan work only on the highest setting. This happens because the 'high' setting bypasses the resistor entirely.
🎬 Watch: Diagnose why your fan only works on high speed- Fan Only Works on High: You've lost all the lower fan speeds (1, 2, 3, 4), but setting 5 works fine.
- Some Fan Speeds Don't Work: You might lose one or two speeds while others still function.
- No Fan at All: In some cases, the resistor can fail completely, leaving you with no airflow from the vents at any speed.
- Melted Connector: A very common issue on these trucks is the wiring connector overheating and melting where it plugs into the resistor. This is often caused by an old blower motor drawing too much electricity. You might notice a burning plastic smell from the vents.
- Fan Works Intermittently: The fan might cut in and out as you drive, which can point to a loose connection at the resistor.
Check the Connector and Blower Motor!
The number one reason for repeat resistor failure is not addressing the root cause. An aging blower motor pulls too much electrical current, which overheats and melts the resistor and its wiring connector. When you replace the resistor, always inspect the wiring harness for signs of melting, scorching, or corrosion. If you see any damage, you must replace the connector pigtail. Many aftermarket kits include this pigtail for this exact reason. It is also highly recommended to replace the original blower motor at the same time to prevent the new resistor from burning out.
Choosing the Right Aftermarket Resistor

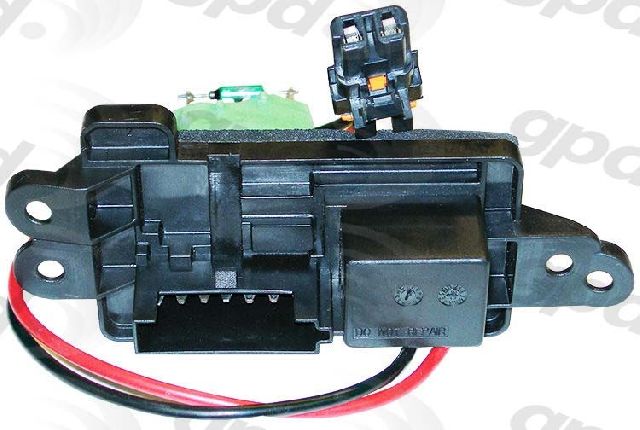

Several brands offer replacement blower motor resistors for the 2002-2009 Envoy. While an OEM part is an option, many aftermarket parts offer excellent quality and value, with some even improving on the original design by including a new wiring pigtail.
Brand Quality Tiers

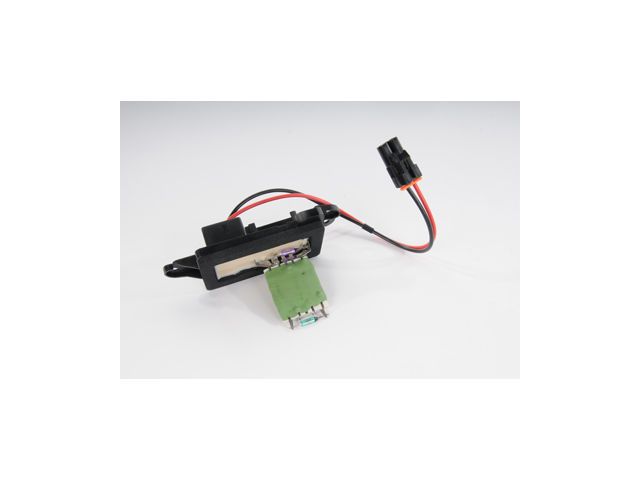

- Premium Aftermarket (ACDelco, Dorman): ACDelco is the original equipment manufacturer (OEM) for GM, so their parts are a direct replacement for the factory original. Dorman is a highly regarded aftermarket brand that often includes the necessary replacement wiring harness with their resistor kits, which is a huge advantage for this specific repair. These brands are trusted for their quality and fit.
- Standard Aftermarket (Four Seasons, Standard Ignition, Global Parts, Holstein): These brands provide reliable, budget-friendly alternatives that meet or exceed original specifications. They are a solid choice for most repairs and are widely available.
Pro Tip: Before ordering, confirm if your Envoy has manual or automatic climate controls. The resistors are different. The part for manual controls typically has a 7-pin connector. It's a good idea to visually inspect the old part before buying the new one to ensure you get the correct pin configuration.

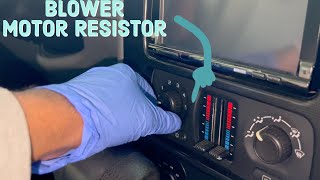

🎬 See this installation guide for manual climate control systemsCost of Replacing the Blower Motor Resistor
Replacing the blower motor resistor is one of the more affordable repairs you can do on your Envoy. The parts are inexpensive, and if you do it yourself, you can save a lot on labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Resistor | $49.63 - $225.81 |
| New OEM Resistor (ACDelco) | $50 - $130 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Where is the blower motor resistor located on a GMC Envoy?
The blower motor resistor is located in the passenger-side footwell, underneath the glove box. It is mounted to the HVAC housing, near the blower motor itself. You will need to remove a plastic cover panel to access it.
Do I need to replace the wiring connector too?
It is highly recommended. The original connectors are a known failure point and often melt due to heat from an aging blower motor. If the connector is melted, discolored, or brittle, you must replace it to ensure a good connection and prevent the new resistor from failing prematurely. Many aftermarket kits from brands like Dorman include a new connector pigtail.
Should I replace the blower motor at the same time?
Yes, it's a very good idea. The primary cause of resistor and connector failure is an old blower motor drawing too much electrical current. Replacing only the resistor without addressing the faulty motor often leads to the new part burning out quickly. Replacing both at the same time is the best way to ensure a long-lasting repair.
Is this a difficult repair to do myself?
No, this is a very DIY-friendly job. It requires basic hand tools and involves working in the passenger footwell. The most challenging part can be splicing the new connector pigtail if needed, but it's a straightforward process of cutting, stripping, and crimping wires. The entire job typically takes less than an hour.
🎬 Watch: A step-by-step walkthrough of the entire replacement processAre there any recalls for the blower motor resistor on the GMC Envoy?

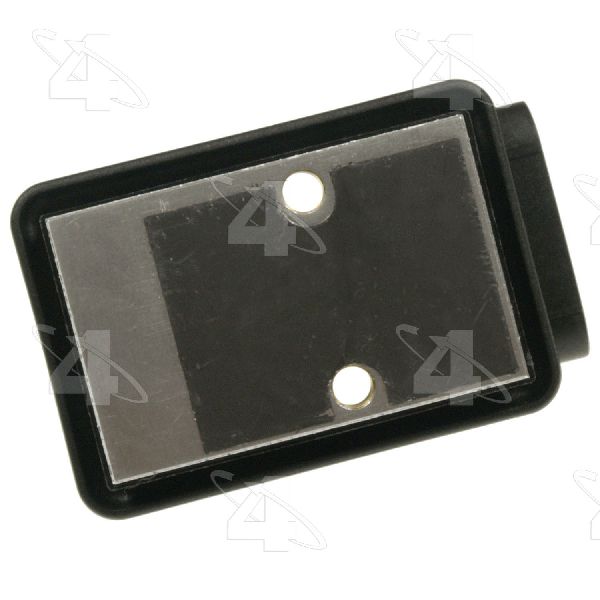

There are no direct recalls for the front blower motor resistor itself. However, there was a recall (NHTSA 23V-247) for some models concerning the *rear* HVAC blower motor circuit, where moisture could cause corrosion and a fire risk. There are also numerous Technical Service Bulletins (TSBs) related to repeat failures of the rear blower resistor on Envoy XL models, often due to improper installation or heat dissipation. These issues highlight the sensitivity of these components to heat and electrical load.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22807123 89019088 89018596 89018308 19260762 15-81773
Varies by climate control type (manual vs. automatic). Manual control versions typically use a 7-pin connector. The part is located in the passenger footwell and acts as a variable resistor to control blower fan speed.
