GMC Envoy Suspension Stabilizer Bar Bushing Replacement Guide (2002-2009)
Eliminate clunking noises and restore handling in your 2002-2009 GMC Envoy by replacing worn sway bar bushings.
- A clunking noise over bumps is the most common symptom of bad sway bar bushings on an Envoy.
- This is an easy and inexpensive DIY repair that can significantly improve ride quality and handling.
- Always measure your sway bar diameter before ordering to ensure you get the correct part.
- Consider replacing the sway bar end links at the same time as the bushings for a complete suspension refresh.
Is Your Envoy Making Noise Over Bumps?
If you're hearing a clunking, rattling, or knocking sound from the front or rear of your 2002-2009 GMC Envoy, especially when going over bumps or turning, there's a good chance the stabilizer bar bushings are worn out. These small, inexpensive parts are common wear items. Over time, the original rubber cracks, hardens, and shrinks, allowing the heavy steel sway bar to move and knock against the frame. This not only creates annoying noises but also reduces your SUV's handling stability.
Symptoms of Failing Stabilizer Bar Bushings
Bad sway bar bushings will give you clear signs they need replacement. The most common symptom is noise, but you might also notice a change in how your Envoy drives.
- Clunking or Rattling Noises: This is the number one sign. You'll hear it most over uneven roads, speed bumps, or when entering a driveway.
- Increased Body Roll: Your Envoy may feel like it's leaning more than usual in corners. This happens because the loose bushings can't hold the sway bar effectively.
- Loose or Vague Steering: While less common, severely worn bushings can contribute to a feeling of instability or less responsive steering.
- Visible Wear: You can often see the problem. Look for cracked, split, or deformed rubber where the sway bar mounts to the frame. You might even be able to move the bar by hand if the bushings are bad enough.
Pro Tip: Check the Sway Bar Links Too
While you're inspecting the frame bushings, also check the sway bar end links. These connect the ends of the sway bar to the suspension. Worn links can cause very similar clunking noises. It's common practice to replace both the bushings and the links at the same time for a complete repair, especially on a high-mileage vehicle.
Choosing the Right Aftermarket Bushings
For a vehicle like the 2002-2009 Envoy, aftermarket stabilizer bar bushings often provide better value and can even be an upgrade over the original parts. You don't need to pay dealership prices for an OEM part. Here's a breakdown of the available brands:
- Premium Brands (Moog, Mevotech): These brands are often considered top-tier in the aftermarket. Moog is well-known for its "Problem Solver" parts that often improve on the original design. Mevotech is a strong competitor, with lines like TTX and Supreme offering high-quality, durable options. For your Envoy, these brands may offer features like split bushings for easier installation or more durable materials like thermoplastic or polyurethane.
- OEM-Quality Brands (Delphi): Delphi has a strong reputation as an original equipment manufacturer for many car brands. Choosing Delphi is a safe bet for a quality part that fits and performs just like the one your Envoy came with from the factory.
- Value Brands (Dorman, QuickSteer): Dorman is a giant in the aftermarket and offers a huge range of parts. Their quality is generally good for everyday use, and they sometimes offer "OE FIX" designs that address common failure points. QuickSteer is typically positioned as a more budget-friendly option. For a simple part like a bushing, these brands can be a perfectly acceptable choice for a daily driver.
Aftermarket Brand Comparison
| Brand | Tier | Typical Features |
|---|---|---|
| Moog | Premium | Problem-solver designs, high-quality materials, often includes new hardware. |
| Mevotech | Premium | Multiple quality tiers (TTX, Supreme), innovative designs, good durability. |
| Delphi | OEM-Quality | Meets or exceeds original equipment specifications, reliable fit and performance. |
| Dorman | Standard/Value | Wide availability, often includes "OE FIX" improvements. |
| QuickSteer | Value | Cost-effective option for budget-conscious repairs. |
Important: Check Your Sway Bar Diameter
The GMC Envoy was available with different sway bar diameters depending on the model year, trim level (XL, XUV), and suspension package. Before ordering, it is critical to measure the diameter of your sway bar to ensure you get the correct size bushings. An incorrect size will not fit or function properly.
Frequently Asked Questions (FAQ)
Is it difficult to replace stabilizer bar bushings on a GMC Envoy?
No, this is a job that most DIY mechanics can handle. It typically involves removing two bolts on each bushing bracket, prying the bracket off, swapping the old bushing for the new one, and re-installing the bracket. Access can be a little tight, but it doesn't require specialized tools. You will need to safely raise and support the vehicle.
Should I replace front and rear bushings at the same time?
It's not required, but it's a good idea. If the front bushings have failed due to age and mileage, the rear ones are likely in similar condition. Since the parts are inexpensive, replacing all of them at once saves you from having to do the job again in the near future.
Do I need a wheel alignment after replacing sway bar bushings?
No, replacing the stabilizer bar bushings or links does not affect your vehicle's wheel alignment settings.
What's the difference between rubber and polyurethane bushings?
Original bushings are typically made of rubber, which provides a quiet ride but can wear out, crack, and get soft over time. Aftermarket polyurethane bushings are a popular upgrade. They are much firmer and more durable, resistant to oils and road grime. The trade-off is that they can sometimes transmit more noise or vibration into the cabin compared to soft rubber, but they offer a noticeable improvement in handling response.
Technical Specifications

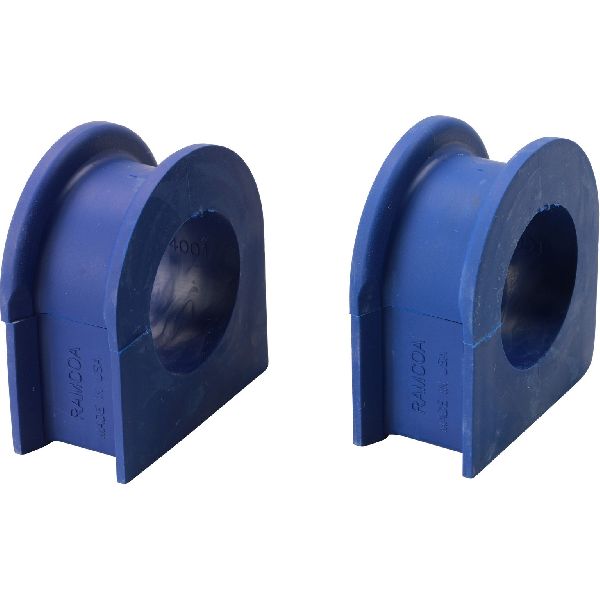

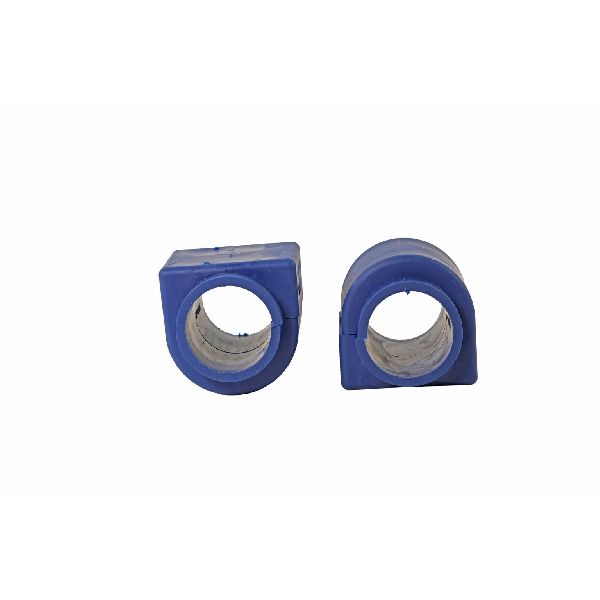

OEM Part Numbers: 15101555 15234103 15787553 15126111
Bushings are available for multiple sway bar diameters. Common sizes for the GMT360 platform (including the Envoy) are 33mm, 34mm, and 36mm. It is critical to measure your vehicle's specific bar diameter before purchase.
