Chevrolet Trailblazer Windshield Washer Pump: A Complete Replacement Guide (2002-2010)
Is your Trailblazer's washer fluid not spraying? Here’s what you need to know before replacing the pump.
- The Trailblazer has two separate pumps for the front and rear windows; ensure you buy the correct one.
- This is a very DIY-friendly repair that usually takes less than an hour with basic tools.
- Always replace the small rubber grommet with the pump to prevent leaks.
- Before replacing the pump, check the fuse located in the under-hood fuse box.
Is Your Trailblazer's Washer Pump Failing?
A non-working windshield washer system is more than an annoyance; it's a safety issue. If your 2002-2010 Trailblazer isn't spraying fluid, the washer pump is a likely culprit. Diagnosing the problem is usually straightforward.
Common Failure Symptoms
- No Sound, No Fluid: If you activate the washers and hear nothing, the pump's motor may have failed or isn't receiving power. This could be due to a blown fuse, a bad relay, or a dead pump.
- Pump Hums, But No Fluid Sprays: If you can hear the pump motor running, the issue might be an empty reservoir, clogged nozzles, or a broken internal part of the pump.
- Weak or Uneven Spray: A pump that is starting to fail may lose the ability to create enough pressure for a strong, even spray. This can also be caused by partially clogged nozzles.
- Visible Fluid Leaks: You might find a puddle of washer fluid under your vehicle. The plastic housing of the pump can crack from age or from the fluid inside freezing, causing a leak directly from the reservoir area.
Front vs. Rear Pumps
The 2002-2010 Trailblazer uses two distinct pumps—one for the front windshield and one for the rear. They are not interchangeable. Often, they are color-coded (e.g., blue electrical connector for the front, green for the rear) to help with identification. Make sure you are ordering and replacing the correct pump.
Choosing the Right Aftermarket Washer Pump
For a vehicle like the 2002-2010 Trailblazer, aftermarket washer pumps offer excellent value and are a common repair. Both OEM-affiliated and quality aftermarket brands provide reliable performance.
Brand Quality Tiers
- Tier 1: OEM-Equivalent (ACDelco): ACDelco is GM's official parts brand, offering parts manufactured to original equipment (OE) specifications for fit, form, and function. Choosing an ACDelco pump is the closest you can get to buying the original part from the dealer, ensuring high quality and perfect compatibility.
- Tier 2: Quality Aftermarket (Trico): Trico is a well-known brand in wiper and washer systems. Their replacement pumps are designed to meet or exceed OEM specifications and are known for being easy to install. They provide a reliable and cost-effective alternative to the OEM part.
Pro Tip: Check the Simple Stuff First

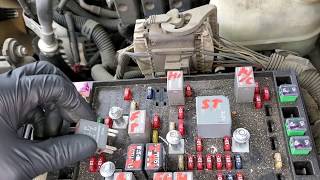

Before ordering a new pump, check the washer system fuse in the under-hood fuse box. 🎬 Watch: How to find and check your washer fuse and relay A bad fuse is a simple and cheap fix. Also, try cleaning the washer nozzles with a small pin to ensure they aren't clogged with wax or debris.
🎬 Watch: Troubleshooting tips if your Trailblazer sprayer isn't workingCost to Replace a Trailblazer Washer Pump
Replacing the washer pump on a Trailblazer is an inexpensive repair, especially if you do it yourself. The parts are affordable, and the job requires minimal tools.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico, etc.) | $20 - $30 |
| New OEM-Equivalent (ACDelco) | $25 - $40 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $120 - $240 |
Frequently Asked Questions (FAQ)
Is it hard to replace the washer pump on a 2002-2010 Trailblazer?

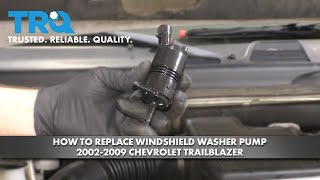

No, it is considered an easy DIY job that can often be completed in under an hour. The pump is located on the side of the washer fluid reservoir, which is accessed by removing the air filter housing. 🎬 See this step-by-step walkthrough for replacing the washer pump Basic hand tools are all that's required.
Do I need to replace the rubber grommet with the pump?
Yes. Most new pumps come with a new rubber grommet (seal). It is highly recommended to replace the old grommet to prevent leaks after installation.
Was there a recall on the Trailblazer washer pump?
No recalls were found specifically for the windshield washer pump on the 2002-2010 Trailblazer. There was a recall for the 2002 model year concerning the windshield *wiper module* allowing water intrusion, which could affect wiper operation, but this did not involve the washer pump itself.
Can I just use water in my washer reservoir?
It is strongly advised not to use plain water. Washer fluid contains cleaning agents and, most importantly, antifreeze components that prevent the fluid, lines, and pump from freezing and cracking in cold weather. A frozen pump is a common cause of failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89025062 89001112 15254824 19244683 22766715 89025063
Voltage: 12V, Pump Type: Mono Pump, Outlet Port: Single
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
