A Saturn Vue Owner's Guide to Direct Ignition Coils (2002-2010)
Fix your Vue's engine misfires and poor performance by understanding its specific ignition system.
- First, confirm if your Vue has the 2.2L engine (which uses a single ignition module) or a V6/2.4L engine (which uses individual coils).
- For V6 models, a leaking valve cover gasket is a common cause of coil failure; check for oil in the spark plug tubes.
- When replacing the difficult-to-access rear coils on a V6, it is highly recommended to replace all six coils and spark plugs at the same time.
- Stick to high-quality aftermarket brands like Denso, Delphi, Hella, or Beck Arnley for reliability and longevity.
Is Your Saturn Vue Running Rough? It Could Be an Ignition Coil
If your Saturn Vue is experiencing symptoms like a flashing check engine light, rough idling, or a noticeable loss of power, a failing ignition coil is a likely culprit. These components are essential for smooth engine operation, but they don't last forever. Heat and vibration eventually cause them to wear out, leading to misfires and other drivability problems. Replacing them is a common repair that can restore your engine's performance and efficiency.
Important: Identify Your Engine Before You Buy!
The single most important step is to know which engine your 2002-2010 Saturn Vue has. The ignition systems are completely different, and ordering the wrong part is a common mistake.
- 2.2L 4-Cylinder (2002-2007): This engine does not use individual direct ignition coils. It uses a single, integrated part called an Ignition Coil Cassette or Ignition Control Module (ICM). This entire unit houses the coils and electronics and is replaced as one piece. Failures are very common on these Ecotec engines.
- V6 Engines (3.0L, 3.5L, 3.6L) & 2.4L 4-Cylinder (2008-2010): These engines use a modern Coil-On-Plug (COP) system. This means each spark plug has its own individual ignition coil 🎬 See this easy method for diagnosing a coil-on-plug misfire. that sits directly on top of it. If one fails, you only need to replace that specific coil.
Known Issues for Saturn Vue V6 Models

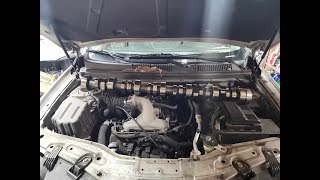

On V6 engines, a very common cause of ignition coil failure is a leaking valve cover gasket. Oil seeps into the spark plug tubes and soaks the bottom of the coil boot. This oil contamination causes the boot to swell and degrade, leading to a misfire. If you find oil in the spark plug wells, you must replace the valve cover gaskets along with the affected coils and spark plugs to permanently fix the issue.
Choosing the Right Aftermarket Ignition Coil
When it comes to aftermarket ignition parts, quality matters. Cheaper, unbranded coils have a reputation for failing quickly, forcing you to do the job again. For a vehicle like the Saturn Vue, it's best to stick with reputable brands.
- Top Tier (OEM-Equivalent): Brands like Denso and Delphi are often the original equipment manufacturers for GM and Honda (whose 3.5L V6 was used in the 2004-2007 Vue). Choosing these brands is the closest you can get to dealer quality. Hella and Bosch are also highly respected German brands known for excellent quality and reliability. Beck Arnley is known for sourcing parts from OEM suppliers, making them a trustworthy choice.
- Mid-Tier (Reliable Aftermarket): Brands like Accel are well-known in the aftermarket and offer reliable performance, sometimes with an emphasis on enhanced spark energy.
- Economy Tier (Use with Caution): Prenco and other lower-cost brands can be a budget-friendly solution. However, their lifespan can be unpredictable. If you choose an economy option, be aware that you may be replacing it again sooner than you would a top-tier part.
Pro Tip: Replace in Sets?
For V6 engines, if one coil fails, the others have experienced the same heat and wear and are likely not far behind. Because the rear three coils are very difficult to access (requiring removal of the intake manifold 🎬 Watch: V6 intake removal and rear ignition coil replacement walkthrough.), it is highly recommended to replace all six coils and spark plugs at the same time. This saves you from having to repeat the difficult labor in the near future.
Cost to Replace a Saturn Vue Ignition Coil
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Ignition Coil (Individual) | $46.25 - $142.27 |
| New Aftermarket Ignition Module (2.2L) | $80 - $250 |
| Shop Labor Cost (Front Coils / 2.2L Module) | $75 - $150 |
| Shop Labor Cost (Rear Coils - V6) | $300 - $500+ |
Frequently Asked Questions (FAQ)
Should I replace all my ignition coils at once?
For the 2.2L engine, you replace the entire module, which contains all the coils. For V6 engines, it is strongly recommended to replace all six coils at once, especially if you are accessing the difficult-to-reach rear bank. If one has failed due to age, the others are likely to fail soon.
What's the difference between an ignition coil and an ignition control module?
An ignition coil is a single transformer for one spark plug. An ignition control module (ICM) is the electronic brain that tells the coils when to fire. On the 2.2L Ecotec engine, the coils and the ICM are integrated into one assembly, often called a coil cassette.
Why is my check engine light flashing?
A flashing check engine light indicates a severe engine misfire. This is a serious condition because unburned fuel can be sent into the exhaust, where it can overheat and destroy the catalytic converter, a very expensive repair. You should not drive the vehicle for an extended period if the light is flashing.
Why is replacing the rear coils on my V6 so expensive?
The rear three ignition coils on the V6 Saturn Vue models are located underneath the upper intake manifold. To access them, a mechanic must remove this large engine component, which is a labor-intensive process that takes several hours. This is why replacing all six coils at once is cost-effective in the long run.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12590990 UF569 UF400 UF391 90584337
System type varies by engine. The 2002-2007 2.2L Ecotec engine uses a single Ignition Control Module/Cassette (waste-spark system). The 2002-2003 3.0L V6, 2004-2007 3.5L V6 (Honda engine), 2008-2010 2.4L I4, 2008-2010 3.5L V6, and 2008-2010 3.6L V6 all use an individual Coil-On-Plug (COP) design.
