Saturn Vue Engine Timing Chain Kit Guide for 2002-2010 Models
Understanding which engine your Vue has is the first step to a successful timing chain replacement.
- First, confirm if your Vue has a 2.2L, 2.4L, or 3.6L engine with a timing chain, or a 3.0L/3.5L V6 with a timing belt.
- Listen for a rattling noise on cold startups; this is the primary warning sign for Ecotec engine timing chain failure.
- Always replace the entire timing kit, including chains, guides, tensioners, and sprockets. Also, replace the water pump at the same time on 2.2L/2.4L engines.
- Due to the high risk of catastrophic engine damage, do not continue to drive a vehicle with known timing chain issues.
Engine Identification: The Most Important Step
Before shopping for a timing chain kit, you must know which engine is in your 2002-2010 Saturn Vue. Different engines were used, and not all have timing chains.
| Engine | Years Available | Timing System | Notes |
|---|---|---|---|
| 2.2L L61 I4 | 2002-2007 | Timing Chain | Known for timing chain tensioner and guide issues. |
| 2.4L LE5/LAT I4 | 2007-2010 | Timing Chain | Also part of the Ecotec family with similar timing chain issues. |
| 3.0L L81 V6 | 2002-2003 | Timing Belt | This is an Opel-designed engine that uses a timing belt, not a chain. |
| 3.5L L66 V6 | 2004-2007 | Timing Belt | This is a Honda-sourced engine and uses a timing belt. Do NOT buy a timing chain kit for this engine. |
| 3.6L LY7 V6 | 2008-2010 | Timing Chain | A more modern GM V6 engine. |
Common Failure Symptoms in Chain-Driven Vues
For Vues with the 2.2L and 2.4L Ecotec engines, timing chain issues are a known problem. The original plastic guides can become brittle and break, and the hydraulic tensioner can fail. This allows the chain to become loose.
- Engine Rattle on Startup: The most common sign is a rattling or buzzing sound from the engine for a few seconds after a cold start. 🎬 Watch: Hear what a failing Ecotec timing chain sounds like. This is the sound of the loose chain slapping against the timing cover before oil pressure builds up.
- Persistent Noise: If the problem worsens, the rattling noise may continue even after the engine is warm.
- Check Engine Light: A stretched chain can cause camshaft and crankshaft position sensors to go out of sync, triggering codes like P0016 or P0017.
- Engine Performance Issues: You might experience rough idling, misfires, or a general lack of power as the engine's timing becomes incorrect.
- Catastrophic Failure: In a worst-case scenario, the chain can break or jump teeth, causing the pistons to hit the valves. This is an "interference engine" design, and this event will cause severe, often irreparable, engine damage.
Known Issues, TSBs, and Recalls
There were no formal recalls for the timing chain on the Saturn Vue. However, General Motors did issue a Technical Service Bulletin (TSB #03-06-01-017) for the 2.2L L61 engine in the 2002-2003 Vue. This TSB acknowledged a design change, introducing a new oiler nozzle to increase oil flow to the timing chain at low RPMs. Later aftermarket kits often include these updated designs. The 2.4L Ecotec engines also have known issues with tensioners and guides.
Choosing the Right Aftermarket Kit
When replacing the timing chain, it is critical to replace all related components. Do not just replace the chain itself. A complete kit is the only way to ensure a lasting repair.
Pro Tip: On the 2.2L and 2.4L Ecotec engines, the water pump is driven by the balance shaft chain. Since you have to remove the timing cover and chains to access it, it is highly recommended to replace the water pump at the same time.
- Tier 1 (Premium): Cloyes, INA
Cloyes is a highly respected brand and is often an original equipment (OE) supplier to manufacturers like GM. Their kits are known for quality and often include updated component designs. INA is another top-tier OE supplier, especially for European engines, making them a strong choice for the 3.6L V6. 🎬 Watch: Comprehensive removal and installation guide for the 3.6L V6.
- Tier 2 (Quality Aftermarket): Gates, Dayco
Gates and Dayco are major names in the industry, well-known for their belts but also producing full timing chain kits. They are considered reliable, quality replacements for a daily driver and are often more budget-friendly than premium OE brands.
Cost of Replacing a Saturn Vue Timing Chain Kit
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit | $87 - $930 |
| Shop Labor | $800 - $1,500+ |
| Total Job Cost | $887 - $2,430+ |
Costs are estimates and can vary based on location, engine type, and the specific parts included in the kit.
Frequently Asked Questions (FAQ)
Does my Saturn Vue have a timing chain or a timing belt?
It depends on your engine. The 4-cylinder (2.2L, 2.4L) and the later 3.6L V6 engines use a timing chain. The early 3.0L V6 and the mid-generation 3.5L V6 use a timing belt.
How often should a Saturn Vue timing chain be replaced?
Unlike timing belts, timing chains are designed to last the life of the engine. However, due to known issues with tensioners and guides on the Ecotec engines, they often fail prematurely. Many mechanics recommend inspection or replacement around 100,000 miles, or as soon as you hear any startup rattle.
Can I just replace the broken guide or the tensioner?
No. If one component has failed, the others are likely worn and will fail soon. The chain itself may have stretched. Replacing the entire kit (chains, guides, tensioners, sprockets) is the only way to do the job correctly and avoid having to do it again.
Is this a good DIY job?
This is an advanced repair. It requires removing the engine's front cover, and mistakes can lead to catastrophic engine failure. It is not recommended for beginners. If you are not an experienced DIY mechanic with the proper tools, this job is best left to a professional.

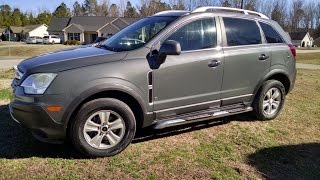

🎬 See a full 2.2L Ecotec timing chain replacement walkthrough.Helpful Videos
Technical Specifications
OEM Part Numbers: 12635447
A complete kit for an Ecotec engine should include: Primary Timing Chain, Balance Shaft Chain, Primary Chain Tensioner, Balance Shaft Chain Tensioner, Camshaft Sprockets (or VVT Phasers), Crankshaft Sprocket, Balance Shaft Sprockets, all Timing Chain Guides (fixed and pivoting), and an Oiler Nozzle.
