Mercedes-Benz ML500 Windshield Washer Pump Replacement Guide (2002-2011)
Having trouble cleaning your windshield? Here is how to diagnose and choose the right replacement washer pump for your ML500.
- First, check the washer fluid level and the fuse before assuming the pump is bad.
- Identify your ML500 generation: 2002-2005 (W163) models may have clogged check valves, while 2006-2011 (W164) require removing the wheel to access the pumps.
- Your vehicle likely has separate pumps for the front and rear washers; confirm which one has failed before ordering a replacement.
- When replacing the pump, also replace the rubber grommet to prevent leaks.
Symptoms of a Failing Washer Pump
When a windshield washer pump starts to fail, the signs are usually obvious. The most common issue is that no fluid sprays onto the windshield when you activate the system. You should first check that the washer fluid reservoir is not empty. If it's full, listen for the sound of the pump motor when you try to use the washers.
If you hear nothing, the pump motor has likely failed or is not receiving power due to a blown fuse or wiring issue. If you can hear the pump motor running but no fluid comes out, the problem could be a clog in the lines, blocked nozzles, or an internal failure in the pump where it can no longer create pressure. A weak or uneven spray also points to a failing pump or a blockage in the system.
Important: W163 vs. W164 Generation Differences
The 2002-2011 ML500 covers two different vehicle generations, and they have different washer systems.
- W163 (2002-2005): These models often have issues with clogged check valves located in the washer fluid lines under the hood. If your pump runs but the spray is weak or non-existent, these valves are a likely culprit and should be checked before replacing the pump. 🎬 Watch: Step-by-step washer pump replacement for W163 models
- W164 (2006-2011): On these models, the washer pumps (often two of them) are located behind the front passenger-side wheel arch liner. Access requires removing the wheel and liner. 🎬 See how to access and replace the W164 washer pump Clogged nozzles can still be an issue, but the check valves from the earlier generation are not a factor.
Choosing the Right Aftermarket Part
When your original pump fails, you have several aftermarket options that offer a good balance of price and quality. An Original Equipment Manufacturer (OEM) part is made by the same company that supplied the parts to Mercedes-Benz. An aftermarket part is made by a different company.

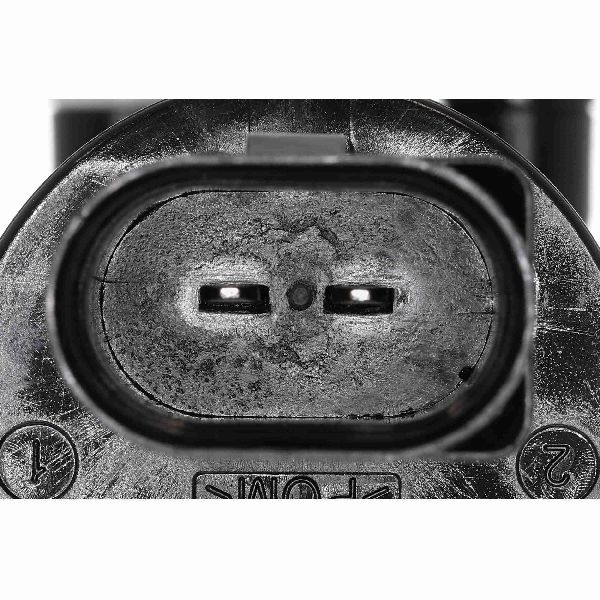

- Vemo: Vemo is a German brand that produces a wide range of aftermarket parts for European vehicles. It is often considered a higher-quality aftermarket option, though online reviews can be mixed. For a non-critical part like a washer pump, Vemo is a solid choice that balances quality and cost.
- Trico: Trico is a well-known brand, famous for its wiper blades, that also produces replacement washer pumps. Their pumps are designed to be straightforward, OEM-style replacements for easy installation.
- URO Parts: URO Parts is known for providing budget-friendly alternatives to expensive genuine parts. While some mechanics are cautious about using budget parts for critical engine components, a URO washer pump is a cost-effective solution for this type of repair and often meets or exceeds original specifications.
Windshield Washer Pump Replacement Cost
The cost to replace the washer pump on an ML500 depends on the part you choose and whether you do the work yourself. The job is manageable for a DIYer, but accessing the pump can require removing a wheel and inner fender liner, especially on W164 models.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $13.87 - $57.11 |
| New OEM Pump | $30 - $60 |
| Shop Labor | $75 - $125 |
| Total (Shop Repair) | $88 - $185 |
Pro Tip: When you replace the pump, it's a good idea to also replace the small rubber seal (often called a grommet) that seals the pump to the reservoir. This part is inexpensive and ensures you won't have leaks after the repair.
Frequently Asked Questions
How do I know if the pump or a clog is the problem?
Listen for the pump motor. If you hear it humming when you activate the washers, the pump has power. The problem is likely a clog in the lines or nozzles, or the pump's impeller is broken. If you hear nothing, check the fuse first. If the fuse is good, the pump motor has likely failed.
How many washer pumps does my ML500 have?
Most ML500s have at least two pumps: one for the front windshield and one for the rear window. If your vehicle has headlight washers, it will have a third, high-pressure pump. When ordering, make sure you are buying the correct pump for the function that has failed.
Is this hard to replace myself?
For a DIYer with some experience, this is a manageable job. The main challenge is accessing the pump. On W164 models (2006-2011), you will need to jack up the vehicle, remove the front passenger wheel, and pull back the plastic wheel well liner. The pump itself just pulls out of the reservoir. The entire job takes about 1-2 hours.
🎬 Watch this helpful video to troubleshoot and fix your washer systemShould I use a specific washer fluid?
Yes, it is best to use a quality, commercially available windshield washer fluid. Do not use plain water, as it can freeze and damage the pump and lines. Also, avoid mixing different types or brands of washer fluid, as this can sometimes cause gelling, which leads to clogs.
Helpful Videos
Technical Specifications
Electric 12V pump, typically with one inlet and one outlet port. Vehicle may contain up to three pumps for front, rear, and headlamp washers.
