Ford E-150 Heater Hose Guide: 2002-2014 Replacement Insights
Keep your 2002-2014 Ford E-150's heat working and prevent engine damage by understanding when and how to replace your HVAC heater hose.
- A leaking heater hose is a critical issue that can lead to severe engine overheating; do not ignore it.
- Failure-prone plastic connectors are a common issue; inspect them carefully and consider replacing the entire hose assembly as a preventive measure.
- High-quality aftermarket brands like Gates and Continental offer a reliable and cost-effective alternative to more expensive OEM parts.
- Always replace hose clamps with the hoses and consider replacing both inlet and outlet hoses at the same time for long-term reliability.
Is Your E-150's Heater Hose Failing?
A bad heater hose on your E-150 is more than just a cold-weather inconvenience; it's a direct risk to your engine. Because these hoses carry vital engine coolant, even a small leak can lead to overheating and catastrophic engine failure. Watch for these clear warning signs:
- Sweet Smell: A distinct, sweet odor like maple syrup inside or outside your van is the classic sign of an antifreeze leak.
- Coolant Leaks: Puddles or drips of green, yellow, or pink fluid under the front passenger side of your van are a major red flag.
- No Cabin Heat: If a hose is clogged or has a major leak, hot coolant can't reach the heater core, leaving you with only cold air from the vents.
- Engine Overheating: If your temperature gauge climbs into the red, you are losing coolant. Pull over immediately to prevent engine damage.
- Visible Damage: Pop the engine cover, or "doghouse," 🎬 Watch: How to safely remove the doghouse for engine access. and inspect the hoses. Look for cracks, bulges, soft or spongy spots, and brittle plastic connectors, which are a known failure point on these vans.
Warning: Plastic Connectors Can Fail Suddenly
Many Ford heater hoses from this era use plastic T-connectors or quick-connect fittings that become extremely brittle with age. 🎬 See how to repair a leaking plastic T-connector assembly. They can crack or break without warning, causing a rapid loss of all engine coolant. If your hoses are original, consider replacing them as a preventive measure.
Choosing the Right Aftermarket Heater Hose
When shopping for a replacement, you'll see options from brands like Continental, Dayco, and Gates. For a workhorse van like the E-150, reliability is key. OEM Motorcraft hoses offer a guaranteed perfect fit but come at a higher price. High-quality aftermarket hoses provide excellent value and are a smart choice for this repair.
Here’s how the common brands generally stack up based on mechanic and owner feedback:
- Top Tier (Recommended): Brands like Gates and Continental are widely respected for their quality and precise fit. They use high-quality EPDM rubber that resists heat and degradation, and their molded hoses are designed to match the original routing perfectly.
- Standard Tier: Dayco is another major manufacturer that produces reliable hoses. While some users report occasional fitment issues compared to Gates, they are a solid and widely available option.
Pro Tip: Always buy a molded hose specifically for your E-150's engine (4.6L or 5.4L V8). Do not use a generic straight hose, as it can kink and block coolant flow. Also, consider aftermarket brands like Dorman that offer "OE FIX" parts, which sometimes replace the failure-prone plastic connectors with more durable aluminum ones.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and technical service bulletins (TSBs) show no specific recalls or widespread service bulletins for HVAC heater hose failure on the 2002-2014 Ford E-150. While other issues have prompted recalls, the heater hoses themselves have not been the subject of a specific safety campaign. Failures are typically due to age and material degradation.
Cost of Replacing a Ford E-150 Heater Hose
The cost depends on whether you need a single hose or a more complex assembly with multiple branches. Doing the job yourself can save significant money on labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Heater Hose Assembly | $43.91 - $124.23 |
| New OEM (Motorcraft) Heater Hose Assembly | $100 - $160 |
| Shop Labor | $180 - $450 |
| Total Estimated Cost (Shop Repair) | $225 - $610 |
Frequently Asked Questions (FAQ)
Should I replace the hose clamps at the same time?
Yes, absolutely. Old spring clamps can lose tension and screw-type clamps can corrode. Using new clamps is cheap insurance against leaks and is considered standard practice for this repair.
How many heater hoses does my E-150 have?
Your van has at least two main heater hoses: an inlet and an outlet. However, many E-150s, especially passenger models, are equipped with an auxiliary rear heater system. These vans have a much more complex network of hoses that run the length of the vehicle. It's critical to identify exactly which hose is leaking before ordering parts.
What if I find a hose that is "looped" and not connected to anything?
You may find a short hose connecting the heater hose ports on the engine together. This is a common but improper "fix" done by previous owners to bypass a leaking heater core. To restore your heat, you will need to buy the correct hoses and connect them to the heater core pipes at the firewall, and you may also need to replace the heater core itself.
🎬 Watch: How to fix a bypass loop and restore heat.What are the quick-connect fittings at the firewall?
These are plastic connectors designed for faster assembly at the factory. With age, they become brittle and are a very common leak point. They can be difficult to release without a special tool and often break during removal. Many mechanics recommend replacing them whenever the hoses are serviced.
Helpful Videos
Technical Specifications

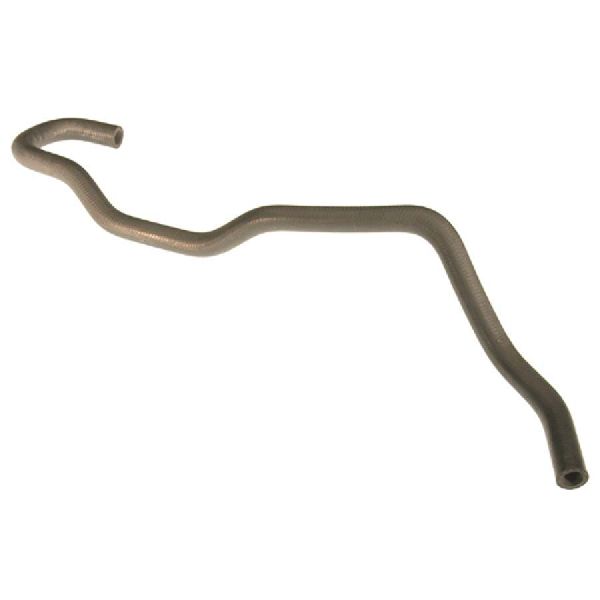

OEM Part Numbers: 7L3Z18663A
Hoses are made from heat and chemical-resistant EPDM rubber. They are pre-molded to fit specific engine configurations (4.6L V8, 5.4L V8) and may include integrated plastic T-connectors and quick-disconnect fittings.
