A Guide to the Alternator for the 2005-2007 Mercury Montego
Understand the common failure points and choose the right replacement alternator to keep your Montego's electrical system healthy.
- Common failure symptoms include dimming lights, a battery warning on the dash, a weak battery, and whining noises from the engine bay.
- The standard alternator for the Montego is 130 amps; ensure your replacement matches this specification.
- Replacement is moderately difficult for a DIYer, requiring removal of the passenger wheel for access. A common trick is to turn the steering wheel to gain clearance.
- A known failure mode for the Montego is an overcharging condition that causes electrical modules to shut down at high RPMs.
Is Your Montego's Alternator Failing?
When the alternator in your Montego starts to fail, it can cause a range of electrical problems. These symptoms often start small but can leave you stranded if ignored. Because the alternator powers all electronics while the car is running, a failure can mimic other issues, but there are a few key warning signs to watch for.
Common Symptoms of a Bad Alternator
🎬 Watch: A visual guide to common alternator failure symptoms.- Dimming or Flickering Lights: You may notice your headlights, dashboard lights, or interior lights flicker or appear dimmer than usual, especially at idle. They might brighten when you rev the engine.
- Battery Warning Light: A battery-shaped warning light (or an "ALT" or "GEN" light) on your dashboard is a direct indicator that the vehicle's computer has detected a problem with the charging system.
- Weak or Dead Battery: An alternator that isn't charging properly will cause the battery to drain while you drive, leading to a car that won't start. You might need to jump-start the car frequently.
- Strange Noises: A grinding or growling sound can indicate worn-out bearings inside the alternator. A whining noise that changes pitch with engine speed can also point to a failing alternator.
- Electrical Accessory Problems: You might find that your power windows are slow, the radio cuts out, or other electronic features behave erratically or stop working altogether.
- Engine Stalling: The fuel injection and ignition systems need electricity to run. If the alternator fails completely, the engine will stall once the battery is depleted.
- Burning Smell: Some owners have reported a burnt plastic or hot wire smell just before an electrical failure, which can be caused by an overheating alternator.
Known Issues for the 2005-2007 Mercury Montego
While there are no specific recalls for the alternator on the 2005-2007 Montego, some owners have reported specific failure patterns. One notable issue is an overcharging condition where the alternator's voltage regulator fails, causing voltage to spike to 17 volts or more at higher RPMs. This can cause various computer modules to shut down to protect themselves, leading to a loss of interior lights and instrument cluster functions until the engine returns to idle. If you experience these symptoms, the alternator is the most likely culprit. 🎬 Learn how to test your alternator before buying a replacement. Additionally, a Technical Service Bulletin (TSB 11-10-21) was issued for idle RPM fluctuations and related trouble codes, which can sometimes be related to unstable voltage from a failing alternator.
Choosing the Right Aftermarket Alternator
When your original alternator fails, you have several options. While a new OEM Motorcraft part offers a guaranteed fit, quality aftermarket parts can provide excellent value. Aftermarket brands are often more affordable than their OEM counterparts. The key is to choose a reputable brand.
Aftermarket Brand Tiers
- Motorcraft (OEM): This is the original equipment manufacturer. Choosing a remanufactured Motorcraft alternator ensures a perfect fit and function, though it is often the most expensive option.
- Premium Aftermarket (BBB, Remy, MPA): Brands like BBB Industries, Remy, and MPA (Quality-Built) are major players in the aftermarket. BBB is a large remanufacturer that supplies many auto parts stores. Remy is now part of BBB's aftermarket division and has a long history, though some users report mixed reliability on newer units.
- Standard Aftermarket (WAI Global): WAI Global often produces completely new units, which can be appealing over remanufactured parts. However, some users have reported issues with noise or lower-than-advertised amperage output, so quality can be inconsistent.
Alternator Replacement Costs for Your Montego
The cost to replace your alternator will depend on the part you choose and labor rates in your area. The job is moderately difficult and can be performed by a skilled DIYer, but it requires accessing the alternator through the passenger-side wheel well.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Alternator | $177 - $286 |
| Remanufactured OEM (Motorcraft) | $240 - $400 |
| Used OEM | $70 - $110 |
| Shop Labor | $200 - $350 |
| Total Professional Replacement | $450 - $750 |
Frequently Asked Questions
Can I install the alternator myself?
Yes, if you are an experienced DIY mechanic. The replacement takes around 3 hours and requires jacking up the vehicle, removing the passenger-side front wheel, and releasing the serpentine belt tensioner. The key trick is turning the steering wheel fully to the right to create enough clearance to remove the old alternator from the wheel well. 🎬 See this step-by-step walkthrough of the Montego alternator replacement. Due to the complexity, many owners may prefer to have a professional mechanic perform the installation.
What's the difference between a new and a remanufactured alternator?
A new alternator is built with all-new components. A remanufactured alternator has been completely disassembled, cleaned, and inspected. All wear items like bearings, brushes, and the voltage regulator are replaced with new parts, and the unit is tested to meet or exceed original specifications. A quality remanufactured unit from a reputable brand can be a reliable and cost-effective choice.
What is a "core charge"?
Most remanufactured alternators include a core charge. This is a refundable deposit you pay when you buy the part. You get the deposit back when you return your old, failed alternator to the seller. This process allows the remanufacturers to rebuild the old parts and keep costs down.
My battery light is on, but the car starts. Is it the alternator?
Yes, this is a classic sign of a failing alternator. The light indicates a charging system problem. The car is starting because the battery still has enough of a charge, but the alternator is not replenishing it as you drive. If you don't replace the alternator soon, the battery will eventually die, leaving you stranded.
Helpful Videos
Technical Specifications

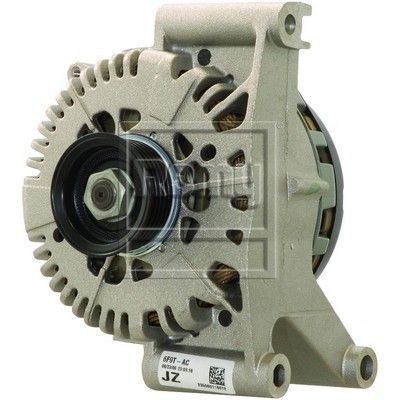

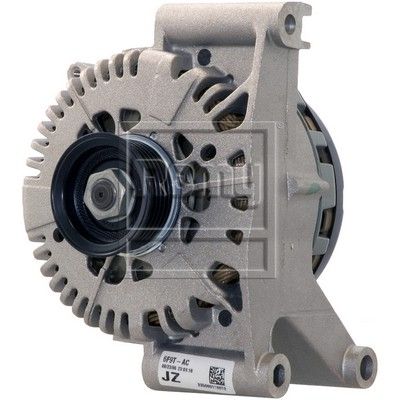

OEM Part Numbers: 5F9Z-10346-AA 6F9Z-10346-AARM 5F9T-10300-AC 6F9T-10300-AA 6F9Z-10V346-AARM
Amperage: 130A, Voltage: 12V, Pulley Grooves: 6, Rotation: Clockwise, Regulator: Internal.
