A Guide to the 2003-2007 Saturn Ion A/C Expansion Valve
If your Saturn Ion's A/C is blowing warm, the expansion valve could be the culprit.
- A bad expansion valve will usually cause warm air from the vents, but check for leaks and compressor issues first, as they are also common on the Ion.
- Replacement requires recovering the refrigerant, which must be done by a properly equipped shop.
- Quality aftermarket brands like Denso, Four Seasons, and GPD are reliable and cost-effective choices for this repair.
- Always replace the receiver/drier and O-rings whenever the A/C system is opened for repair.
Is Your Saturn Ion's A/C Failing?
When the air conditioning in your 2003-2007 Saturn Ion stops blowing cold, it can be caused by several issues. While refrigerant leaks and compressor failures are common problems for these cars, a faulty A/C expansion valve is another likely suspect. This component controls refrigerant flow, and when it fails, your whole A/C system can stop working correctly.
Common Symptoms of a Bad Expansion Valve
A failing expansion valve can show several signs. Pay attention if you notice any of the following:
- Warm Air from Vents: This is the most obvious symptom. A valve stuck closed starves the evaporator of refrigerant, while a valve stuck open floods it. Either way, you get no cold air.
- Inconsistent Cooling: The air temperature from your vents might fluctuate between cool and warm as the valve struggles to regulate refrigerant.
- Frost on Vents or A/C Lines: If the valve is stuck open, it can allow too much refrigerant into the evaporator, causing it to freeze over. You might see frost coming from the vents or on the A/C components under the hood.
- Compressor Issues: The A/C compressor might run constantly or turn on and off rapidly (short-cycling) because the pressures in the system are wrong. 🎬 See how an expansion valve works and why it fails.
Choosing the Right Aftermarket Expansion Valve
For a vehicle like the Saturn Ion, aftermarket parts offer excellent value. The original equipment (OEM) part is no longer necessary to get reliable performance. Here’s a look at the available brands:
| Brand Tier | Brands | Quality & Notes |
|---|---|---|

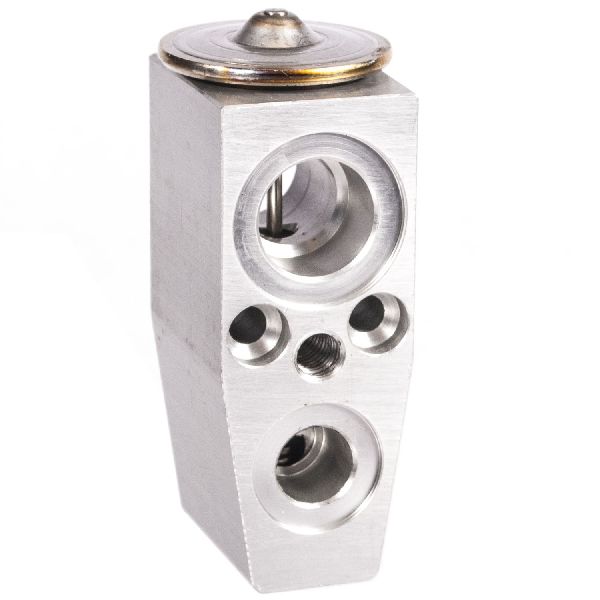

| Premium Aftermarket | Denso | Denso is a well-respected OEM supplier for many car manufacturers. Their aftermarket parts are known for matching original quality and durability. For peace of mind and longevity, Denso is often considered the top choice. |

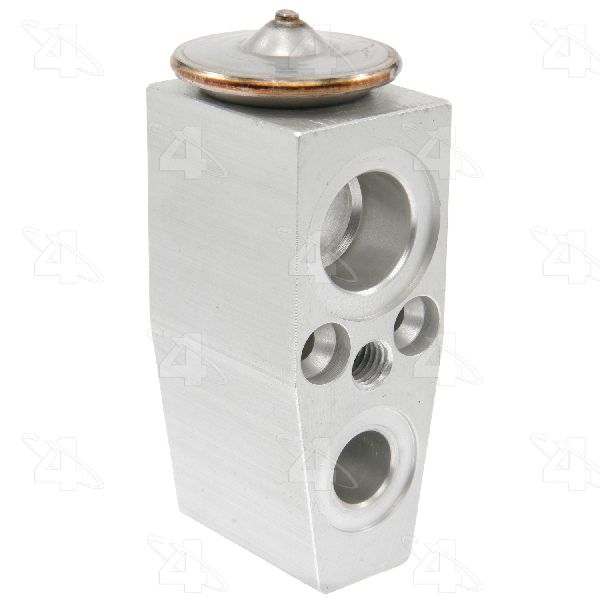

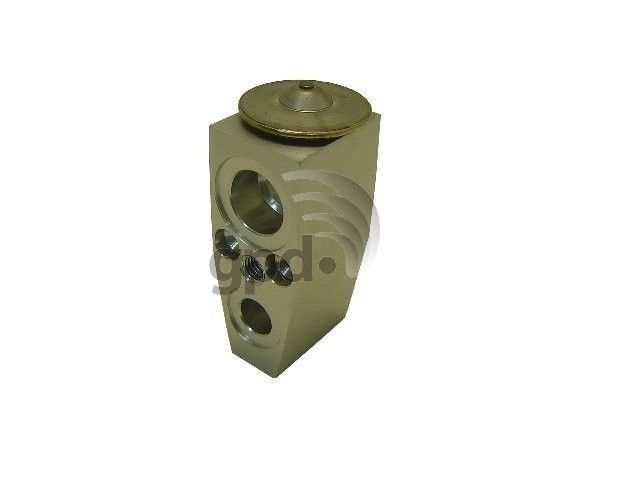

| Standard Aftermarket | Four Seasons, Global Parts (GPD) | Four Seasons and GPD are established aftermarket brands that offer a good balance of quality and price. They are reliable, widely available options that will restore your A/C's function effectively. These are solid choices for the average DIY repair. |
Pro Tip: Replace More Than Just the Valve
When you replace the expansion valve, it is highly recommended to also replace the A/C system's receiver/drier (or accumulator). The drier absorbs moisture from the refrigerant, and opening the system exposes it to air. A new drier is cheap insurance for the health of your A/C system. Also, always use new O-rings lubricated with the correct PAG oil.
Known Issues, Recalls, or TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from GM or the NHTSA related to the A/C expansion valve for the 2003-2007 Saturn Ion. While the Ion had other recalls, such as for the ignition switch, the A/C system itself has no widespread, officially recognized defects.
Frequently Asked Questions (FAQ)
Where is the expansion valve located on a Saturn Ion?
The expansion valve is attached to the evaporator core. It is located on the firewall, typically behind the glove compartment inside the passenger cabin. To access it, you will likely need to remove the glove box and the blower motor assembly.
Is replacing the expansion valve a DIY job?
This is an advanced DIY task. While the part itself is not hard to unbolt, the job requires specialized tools. You need an A/C machine to safely recover the old refrigerant and to pull a vacuum and recharge the system after the repair. Attempting this without the right equipment can damage the system or be unsafe. A shop can perform the refrigerant recovery and recharge 🎬 Watch this diagnostic and replacement walkthrough for the Cobalt platform. for you if you do the part replacement yourself.
Do I need an OEM expansion valve?
No. For a vehicle of this age, a quality aftermarket part from a brand like Denso, Four Seasons, or Global Parts will perform just as well as the original. Given the cost savings, aftermarket is the logical choice.
What is the difference between an expansion valve and an orifice tube?
They do the same job but in different ways. The Saturn Ion uses a block-style expansion valve. Some other vehicles use a simpler, fixed orifice tube. You must use the correct part for your vehicle's system design.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52495729
The 2003-2007 Saturn Ion uses a block-style thermal expansion valve (TXV). The system also contains an inline filter (GM part 3441242) that may need to be serviced.
