Saturn Ion Disc Brake Rotor Guide: Choosing the Right Replacement for 2003-2007 Models
Stop the shaking and noise—find the right new brake rotors for your 2003-2007 Saturn Ion.
- The most common failure symptom is a steering wheel shake or pedal pulsation when braking.
- For most owners, a coated 'Daily Driver' rotor from a brand like Raybestos, Bosch, or Centric offers the best combination of performance, rust prevention, and value.
- Always replace brake pads and rotors at the same time to ensure a proper repair and prevent new pads from wearing out prematurely.
- The job is considered easy for DIYers; cleaning the hub surface before installing the new rotor is a critical step for preventing vibration.
Is It Time for New Rotors on Your Ion?
The most common sign that your 2003-2007 Saturn Ion needs new front brake rotors is a shaking or vibrating feeling in the steering wheel when you apply the brakes. This is often called brake pulsation and is a frequent complaint among Ion owners. 🎬 Watch: How to diagnose brake vibration and pulsation issues. It happens when the rotor surface becomes uneven, causing the brake pads to grab and release rapidly as the rotor spins.
Other Symptoms of a Bad Brake Rotor:
- Grinding or Scraping Noises: This can happen when brake pads are completely worn away, and the metal backing plate grinds against the rotor, causing severe damage.
- Squealing Sounds: While often a sign of worn pads, persistent squealing can also indicate a glazed or damaged rotor surface.
- Visible Grooves or Damage: A visual inspection may show deep grooves, scoring, or a bluish tint from overheating.
Choosing the Right Aftermarket Rotors for Your Saturn Ion
Since your Saturn Ion is no longer a new vehicle, aftermarket parts offer the best value. The original GM rotors were standard for their time, but many aftermarket options provide modern features like better rust protection at a competitive price. Here’s how to choose based on your needs and budget.
Tier 1: Economy Rotors

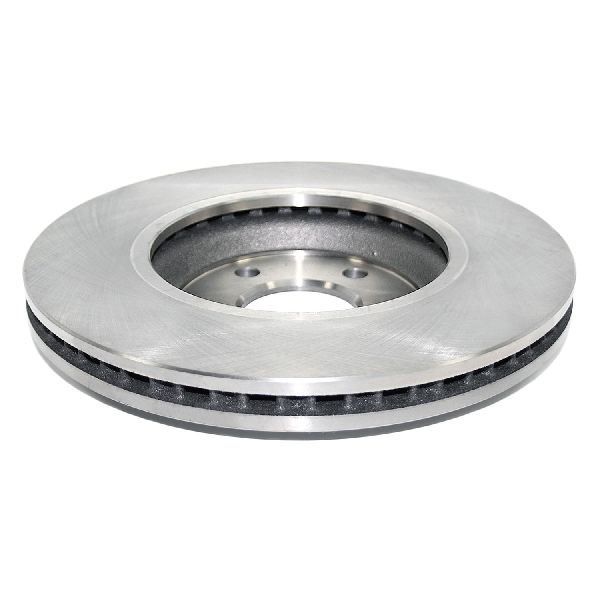

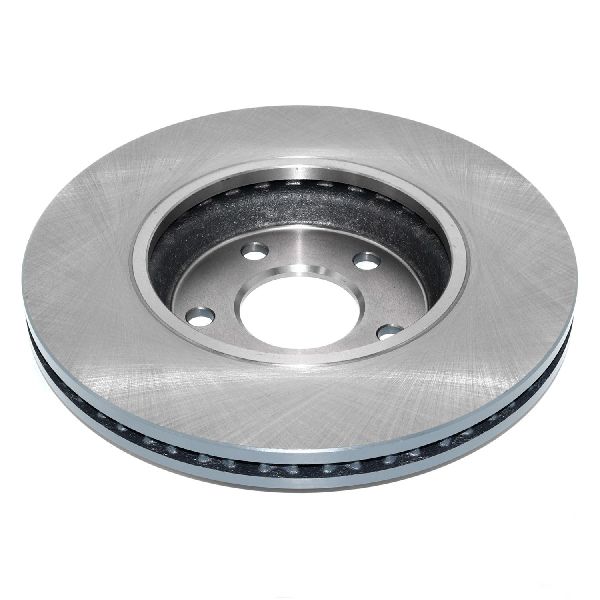

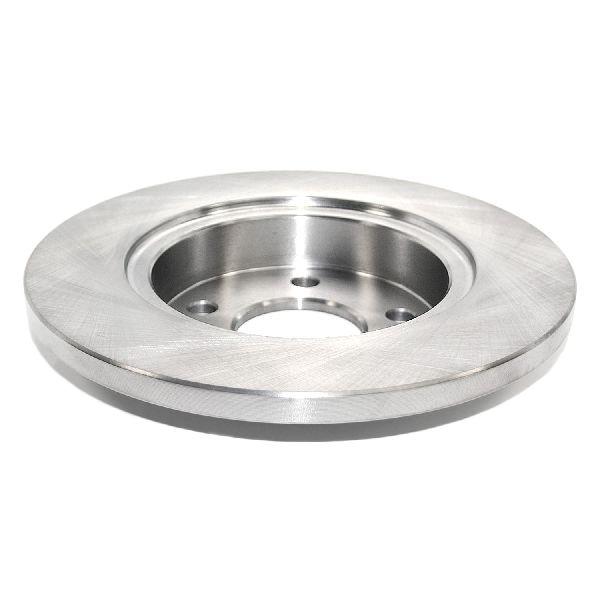

These are your basic, no-frills replacement rotors. They meet or exceed original specifications and are the most affordable option. They are perfect for getting your Ion back on the road safely without spending much. Brands like Pronto and Dynamic Friction fall into this category.
- Best for: Budget-conscious repairs, daily commuting.
- Downside: They are typically uncoated, meaning the hat (the center part) and edges will show surface rust over time, which is mostly a cosmetic issue.
Tier 2: Coated Daily Driver Rotors
Pro-Tip: This is the recommended category for most Saturn Ion owners. For a few dollars more, you get significant protection against rust.
These rotors feature a special coating (often grey, silver, or black) on the non-contact surfaces. This prevents the ugly rust that appears on the rotor hat and vanes, keeping your wheels looking clean. They offer the same braking performance as economy rotors but with added durability and better aesthetics. Look for brands like Raybestos Element3, Bosch QuietCast, Centric, and ACDelco's Gold (Professional) line.
- Best for: The majority of drivers who want a long-lasting, good-looking repair.
- Benefit: Excellent value, combining OE performance with corrosion resistance.
Tier 3: Performance Rotors
This tier includes rotors that are drilled, slotted, or both. Drilled holes and slots help dissipate heat and gases for better performance during aggressive driving. For a daily-driven Saturn Ion, these are generally not necessary but can be a good choice for owners who want a more aggressive look or slightly more "bite" from their brakes. Brands include Powerstop, Hawk, and EBC Brakes.
- Best for: Spirited driving, aesthetic upgrades, or Ion Red Line models.
- Downside: Can sometimes be noisier than smooth rotors and may wear brake pads faster. They are also the most expensive option.
Known Issues, Recalls, and Bulletins
While brake pulsation is a common issue for the 2003-2007 Saturn Ion, there are no official recalls or specific Technical Service Bulletins (TSBs) from General Motors for the disc brake rotors on this vehicle. The well-known recalls for the Ion concern the ignition switch and airbag systems, not the brakes. Problems like vibration are typically considered wear-and-tear issues addressed by replacing the rotors and pads.
Cost of Replacing Saturn Ion Brake Rotors
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Front Rotors (Pair) | $80 - $200 |
| Aftermarket Front Pads | $30 - $75 |
| Shop Labor (Front Axle) | $150 - $250 |
| Total DIY Cost (Pads & Rotors) | $110 - $275 |
| Total Shop Cost (Pads & Rotors) | $260 - $525 |

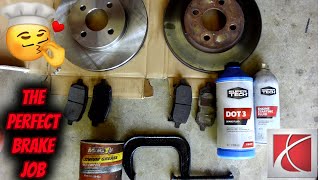

Note: Prices are estimates and can vary based on brand, location, and vehicle condition. The job is straightforward, making DIY a cost-effective option. 🎬 See this step-by-step walkthrough for replacing Ion pads and rotors.
Frequently Asked Questions
Do I have to replace rotors with brake pads?
It is highly recommended. On a Saturn Ion, where rotors are inexpensive and prone to causing pulsation, installing new pads on old rotors is a bad idea. An uneven or worn rotor surface will quickly ruin new pads and bring back any vibration issues. Always replace pads and rotors together for a complete and lasting brake job.
What's the difference between 4-lug and 5-lug rotors?

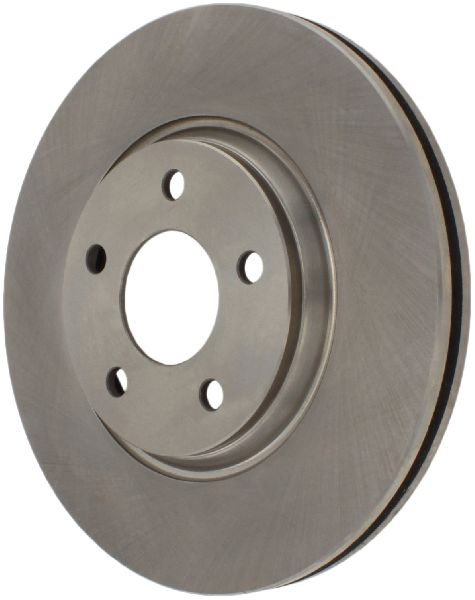

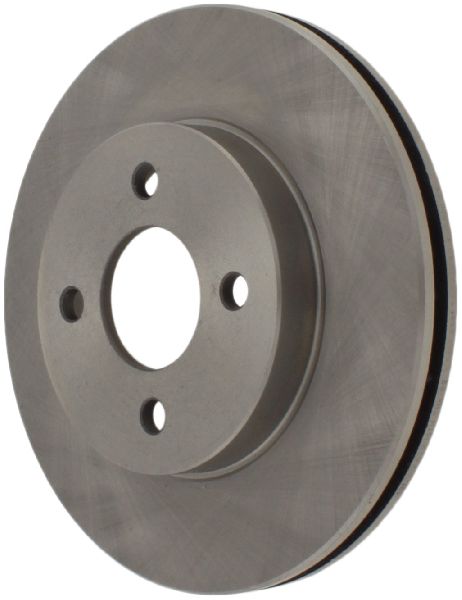

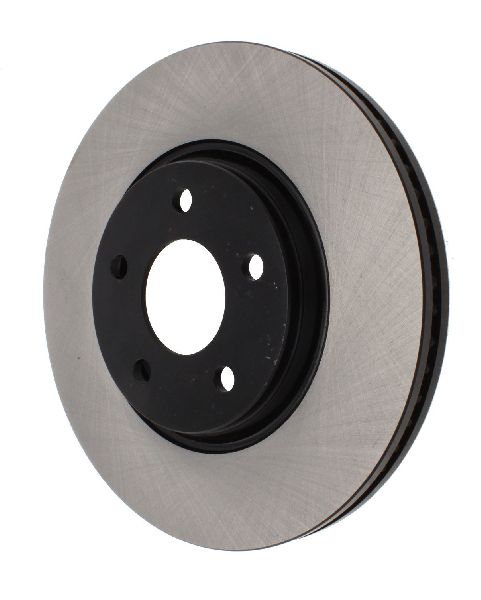

Standard Saturn Ion models (trim levels 1, 2, and 3) use a 4-lug wheel pattern. The high-performance Ion Red Line model uses a 5-lug pattern. You must order the correct rotor for your specific model, as they are not interchangeable.

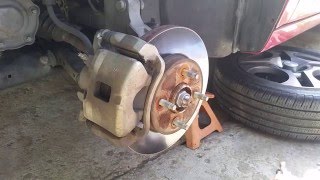

🎬 Watch a mechanic replace the front disc brakes on an Ion.Are drilled and slotted rotors worth it for my Ion?
For most daily driving, no. The benefits of improved heat dissipation won't be noticed in normal commuting. A good quality coated, smooth-faced rotor is the best value. However, if you like the aggressive look or do a lot of spirited driving, they can be a worthwhile upgrade.
Why are my brand new brakes shaking?
This can happen for a few reasons. The most common is improper installation, where the hub surface was not cleaned of rust and debris, causing the new rotor to wobble. Another cause is uneven lug nut torque. Less commonly, you could have received a defective part.
Helpful Videos
Technical Specifications
Varies by trim. Base models (Ion 1, 2, 3) use a 4-lug rotor. The Ion Red Line model uses a 5-lug rotor. Always verify lug count before ordering.
