Saturn Ion 2003-2007 Suspension Shock and Strut Replacement Guide
Address common clunks and restore your Ion's ride by choosing the right replacement shocks and struts.
- Front-end clunking is common and may be caused by sway bar links or control arm bushings, not just the struts.
- You MUST verify if your Ion has the standard (FE1) or sport (FE3) suspension before buying parts.
- For DIY replacement, buying complete 'quick-strut' assemblies for the front is much safer and easier.
- Always replace shocks and struts in pairs (both front or both rear) and get an alignment after replacing front struts.
Is Your Saturn Ion's Ride Bouncy or Noisy?
If you're noticing your 2003-2007 Saturn Ion isn't handling bumps like it used to, or if you're hearing new noises from the suspension, it might be time for new shocks and struts. These parts wear out gradually, but replacing them can make a big difference in ride comfort and safety. 🎬 Learn about the six common symptoms of a bad shock. A common symptom in the Saturn Ion is a clunking or knocking sound from the front end when going over bumps. While this can mean the struts are bad, it's often caused by other worn parts like sway bar links or control arm bushings.
Don't Mistake Other Issues for Bad Struts
Front-end clunking on the Ion is very common. Before replacing struts, inspect the sway bar end links and the lower control arm bushings. A GM Technical Service Bulletin (TSB #04-03-08-006F) was even issued to help mechanics diagnose these various noises, highlighting how common the issue is. Replacing these smaller, less expensive parts first might solve your noise problem.

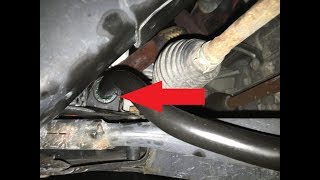

🎬 Watch this video to identify the most common front-end clunk.Choosing the Right Aftermarket Parts
You don't need to go to a dealer for replacement parts. Aftermarket options offer a good balance of quality and cost. For your Saturn Ion, it's critical to know which suspension you have. Most Ions have the standard 'Soft Ride' (FE1) suspension. The sportier Red Line models have a 'Sport' (FE3) suspension. These parts are not interchangeable. You can find your suspension code on the 'Service Parts Identification' sticker, usually in the glove box or trunk.
Brand Tiers for Your Saturn Ion
- Good - Tier 3 (Budget-Friendly): Brands like FCS and PRT offer a low-cost solution. They are often sold as complete "quick-strut" assemblies, which include the spring and mount, making for an easier installation. These are a good choice if you're on a tight budget, but their lifespan and ride quality may not match premium brands.
- Better - Tier 2 (OEM Quality): Brands like Monroe and KYB are well-regarded names that offer a balance of performance and price. They are often considered equivalent to the original parts and provide a ride quality similar to when the car was new. Many mechanics trust these brands for reliable repairs.
- Best - Tier 1 (Premium): While brands like Bilstein are often considered premium, they may not offer specific parts for the Saturn Ion. For this vehicle, sticking with strong Tier 2 brands like KYB or Monroe is an excellent choice for a quality, long-lasting repair.
Pro Tip: Buy Complete Strut Assemblies
For the front struts, it is highly recommended to buy a "complete" or "quick" strut assembly. This includes the strut, coil spring, and mount all in one piece. This is much safer and easier than disassembling your old strut to reuse the spring, a process that requires a dangerous spring compression tool. It also ensures all related components are new.
🎬 Follow this step-by-step guide to install your new struts.Cost to Replace Saturn Ion Shocks & Struts
The cost can vary, but here is a general breakdown. Note that struts are typically more expensive than rear shocks.
| Component | Part Cost (Aftermarket) | Estimated Labor Cost | Total Estimated Cost (Per Axle) |
|---|---|---|---|
| Front Strut Assembly (Pair) | $70 - $125 | $100 - $200 | $170 - $325 |
| Rear Shock Absorber (Pair) | $60 - $90 | $80 - $150 | $140 - $240 |
Frequently Asked Questions (FAQ)
Do I have to replace all four shocks and struts at once?
No, but you must replace them in pairs. If you replace the front left strut, you must also replace the front right. The same applies to the rear shocks. Mismatched shocks and struts can cause poor handling and instability.
My struts are leaking a little fluid. Is that bad?
GM issued a service bulletin (TSB #150089004C) to help technicians tell the difference between normal fluid "seepage" and a true leak that requires part replacement. A light film of oil is acceptable, but if the strut is wet or dripping fluid, it has failed and needs to be replaced.
Will I need a wheel alignment after replacing my struts?
Yes, you should always get a four-wheel alignment after replacing the front struts. The struts are a key part of the steering geometry, and replacement will change the alignment angles. Driving without a proper alignment will cause premature tire wear.
What's the difference between FE1 and FE3 suspension?
FE1 is the standard 'Soft Ride' suspension found on most Ion models. FE3 is the 'Sport' suspension found on the Red Line performance model. The parts have different damping rates and are not interchangeable. Using the wrong parts will result in poor ride quality and unsafe handling.
Helpful Videos
Technical Specifications
Vehicle uses MacPherson struts in the front and separate shock absorbers and coil springs in the rear. Most models use the RPO code FE1 'Soft Ride' suspension. Red Line models use the FE3 'Sport' suspension.
