A Guide to the Engine Crankcase Breather Hose for the 2003-2008 BMW Z4
Understanding the critical differences in the crankcase ventilation system between Z4 model years is key to the right repair.
- First, identify if you have the 2003-2005 M54 engine or the 2006-2008 N52 engine, as the parts are completely different.
- Symptoms like rough idle, a check engine light for lean codes (P0171/P0174), and oil smoke are classic signs of CCV failure.
- Always replace the entire set of hoses, not just one broken piece, as they all become brittle with age.
- Owners of 2006-2008 models should check if the PCV valve heater recall has been performed on their vehicle to prevent a fire risk.
Is Your Z4 a 2003-2005 (M54 Engine) or 2006-2008 (N52 Engine)?
Before you buy any parts, you must know which engine is in your Z4. The crankcase ventilation systems are completely different between the early and late first-generation models.
- 2003-2005 BMW Z4 (M54 Engine): These models use a multi-hose system often called the 'octopus.' It has a separate oil separator valve and four or five brittle plastic hoses that are well-known for failing.
- 2006-2008 BMW Z4 (N52 Engine): These models have a more integrated system where the main oil separator is built into the valve cover. The breather hose is a single, more complex part that connects the valve cover to the intake manifold.
Common Symptoms of a Failing Breather Hose
A bad crankcase breather hose creates a vacuum leak, which leads to a number of clear symptoms. If you notice any of these, your CCV system is the first place to look.
🎬 Watch: A detailed breakdown of common failing CCV symptoms.- Rough Idle: The engine may idle poorly, especially when cold.
- Check Engine Light: You will likely see lean condition codes like P0171 and P0174.
- Engine Noises: A high-pitched whistle or a 'honking' sound at idle can be caused by air being sucked through a crack in a hose or a failed valve diaphragm.
- Increased Oil Consumption: A failed system can suck oil into the intake manifold, causing the engine to burn oil.
- Blue or White Smoke: You may see large puffs of smoke from the exhaust, particularly after idling for a period and then accelerating.
- Oil Leaks: Increased crankcase pressure can force oil out of gaskets and seals, such as the valve cover gasket or main seals.
Known Issue for 2006-2008 Z4 (N52 Engine): PCV Heater Recall
BMW issued a safety recall for the PCV valve heater on N52 engines. This component can short circuit, creating a fire risk even when the car is off. While this is separate from the hoses, it's part of the same system. You can check with a BMW dealer or on the NHTSA website to see if your vehicle has had this free recall service performed.
Choosing the Right Aftermarket Part
When these hoses fail, they become extremely brittle and often break during removal. It is highly recommended to replace the entire set of hoses (for M54 engines) or the main hose assembly (for N52 engines) at the same time.
Brand Quality Tiers
Not all aftermarket parts are created equal. For a critical system like this, part quality and fitment matter.
- Tier 1: OEM Supplier Brands (CRP/Rein, Febi): Brands like CRP (which makes the Rein Automotive line) and Febi are often original equipment manufacturers for BMW. They provide the best fit and material quality outside of a genuine BMW box, and are a trusted choice.
- Tier 2: Reputable Aftermarket (Gates, Meyle): Companies like Gates are experts in hoses, and Meyle is known for making quality parts, with some forum users preferring their 'HD' line. These are solid choices that meet or exceed specifications.
- Tier 3: Budget-Focused (URO Parts, Vaico, BBR): Brands like URO Parts offer a cost-effective alternative. While they can be a good value, fitment can sometimes be less precise than higher-tier brands. For a complex job like the Z4's CCV system, a perfect fit can save hours of frustration. Avoid unbranded kits from marketplaces, as poor fitment is common.
Pro Tip: Cold Climate Hoses
For the M54 engine, manufacturers offer an insulated 'cold climate' version of the CCV kit. These hoses are wrapped in foam insulation to prevent oil sludge from freezing and blocking the system, a common issue on cars driven for short trips in cold weather. Even if you don't live in a very cold climate, this is a worthwhile upgrade for improved durability.
| Engine / Part | Price Range |
|---|---|
| M54 (2003-2005) Full Hose Kit | $50 - $150 |
| N52 (2006-2008) Breather Hose | $40 - $110 |
Frequently Asked Questions (FAQ)
Is replacing the breather hose a DIY job?

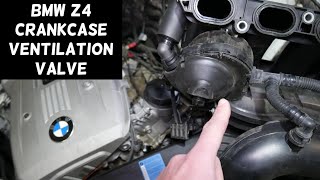

For the M54 engine (2003-2005), it is possible for an experienced DIYer, but it is a frustrating job due to very tight access under the intake manifold. 🎬 See this walkthrough for replacing the M54 CCV system. For the N52 engine (2006-2008), the job often requires removing the entire intake manifold, making it a much more difficult and time-consuming task (4+ hours). For most owners, professional installation is recommended for N52 models.

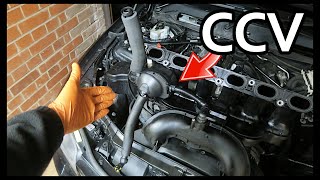

🎬 Watch: This guide shows the N52 breather replacement process.Should I replace just the one broken hose?
No. The plastic and rubber on all the hoses degrade at the same rate. If one has cracked, the others are not far behind. Trying to remove just one hose will almost certainly cause others to break, leaving your car undriveable. Always buy and install a complete kit.
What is the 'mayonnaise' under my oil cap?
This is a milky, yellowish sludge caused by a mixture of oil and water condensation. It's a common sign of a clogged or failing CCV system, especially on cars that are only used for short trips in cooler weather, as the engine doesn't get hot enough to burn off the condensation.
Will a new breather hose fix my oil leaks?
It might prevent future leaks. A clogged CCV system builds pressure that forces oil past good seals. Replacing the CCV system will correct the pressure issue. However, if a seal or gasket has already been damaged and is actively leaking, it will likely need to be replaced separately.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11617501566 11617504535 11617504536 11611432559 11157532649 11127584128
System differs by engine. M54 (2003-2005) uses a multi-hose 'octopus' system with an external oil separator. N52 (2006-2008) uses a single breather hose connected to a valve cover with an integrated oil separator.
