Dodge Ram 1500 Steering Gear: A Guide for 2003-2008 Models
Tired of loose steering and constant wandering? Your steering gear is the likely culprit.
- Excessive steering play and road wander are the most common signs of a failing steering gear in this generation of Ram.
- A new steering gear is a common and effective fix for the notorious 'sloppy' steering on these trucks.
- Be cautious with budget remanufactured brands, as owner reviews indicate a higher risk of premature failure.
- For the best result, consider upgrading to the heavy-duty Mopar steering box (from the 2500/3500) for improved durability and performance.
Is Your Ram's Steering Feeling Loose?
If you own a 2003-2008 Dodge Ram 1500, you're likely familiar with the truck's reputation for steering wander. A common cause for this vague or sloppy feeling is a worn-out steering gear. Over time, the internal components of the steering box wear down, creating excess play. This means your steering wheel can be moved several inches before the wheels actually begin to turn.
Symptoms of a Failing Steering Gear
Watch for these common signs that your steering gear needs replacement:
- Excessive Steering Play: This is the most common symptom. You may have to constantly make small corrections to keep the truck driving straight.
- Clunking or Popping Noises: You might hear a 'clunk' from the front end when turning the wheel, even when parked. This can indicate internal wear in the gearbox.
- Power Steering Fluid Leaks: Leaks from the input shaft (where the steering column connects) or the output/sector shaft (where the pitman arm connects) are a clear sign of failing seals.
- Wandering on the Road: The truck may feel like it's drifting from side to side, requiring your full attention to stay in your lane.
- Binding or Hard Spots: The steering may feel tight or hard to turn in certain spots, then suddenly feel loose.
Pro Tip: How to Check for Play

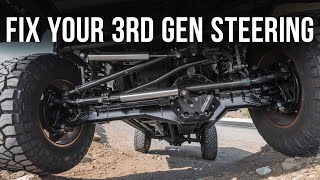

🎬 Watch: How to diagnose sloppy steering and death wobbleHave a friend sit in the truck and turn the steering wheel back and forth just enough to take up the slack, without actually moving the tires. Look at the input shaft going into the top of the steering box and the pitman arm coming out of the bottom. If the input shaft turns without the pitman arm moving instantly, the play is inside the box, and it needs replacement.
Choosing the Right Aftermarket Steering Gear
When shopping for a new steering gear, you'll find new and remanufactured options. Quality can vary significantly between brands.
- OEM Mopar: Mopar offers a direct replacement. Many owners choose to upgrade to the larger, more durable steering box originally designed for the 2500/3500 models (Part #68170214AA), which is a direct bolt-on for the 1500 and is known to improve steering feel and longevity. This is a reliable but more expensive option.
- Premium Aftermarket (e.g., RedHead, Blue Top, PSC): These brands are well-known in truck forums for remanufacturing gearboxes to a higher standard than original, often using custom-machined parts to eliminate design flaws. 🎬 See a RedHead steering gear and performance bracket installation They are a top choice for owners looking for a significant, long-lasting upgrade.

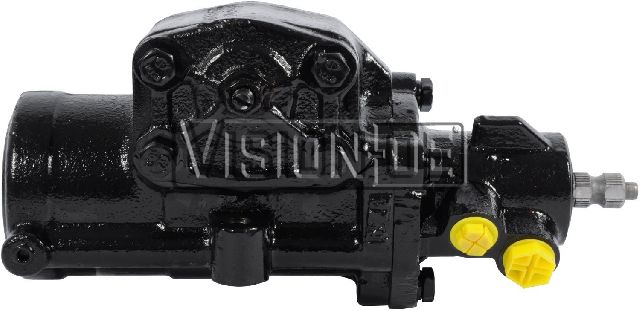

- Standard Aftermarket (e.g., BBB Industries, Cardone): These brands offer more affordable remanufactured options. However, search results show very mixed reviews. Some owners report premature leaks and failures with BBB Industries units in particular. While the warranty may cover the part, it won't cover your labor or the need for another alignment. These can be a budget-friendly choice, but be aware of potential quality control issues.
A Note on Recalls and TSBs
While there are no major recalls specifically for the steering gear on the 2003-2008 Ram 1500, there was a recall (H46) for the steering *linkage* on some 2003-2008 heavy-duty models that could cause a loss of steering. Most other steering recalls you may find are for newer Ram trucks with electric power steering, which does not apply to your vehicle's hydraulic system.
Cost of Replacing Your Steering Gear
The cost depends on the part you choose and whether you do the work yourself. Professional installation requires a few hours of labor and a subsequent front-end alignment.
| Item | Estimated Cost |
|---|---|
| New OEM (Mopar) | $400 - $700 |
| New Aftermarket | $305 - $822 |
| Remanufactured Aftermarket | $240 - $400 |
| Shop Labor & Alignment | $350 - $550 |
| Total Professional Job | $600 - $1,300+ |
Frequently Asked Questions
Can I just adjust my old steering box?
There is an adjustment screw on top of the gearbox that can remove a small amount of play. However, this is a temporary fix for minor wear. If your box is significantly worn or leaking, adjustment will not solve the problem and over-tightening can cause the steering to bind, which is very dangerous.
🎬 Learn how to properly fill and bleed your steering systemWill a new steering gear fix the 'Death Wobble'?
Not usually. 'Death wobble' is a violent shaking of the front end typically caused by worn or loose components like the track bar, ball joints, or tie rod ends. While a worn steering gear can contribute to poor handling, it's not the primary cause of death wobble.
What is the Mopar 'big box' upgrade everyone talks about?
It's a larger, more robust steering gear from the Ram 2500/3500 (Mopar part #68170214AA) that bolts directly into the 1500. It has a stronger sector shaft and internal components, providing a tighter steering feel and much better durability. It's a very popular and highly recommended upgrade.
Is a pitman arm puller really necessary?
Yes. The pitman arm has a tapered, pressed fit onto the steering gear's sector shaft. It is nearly impossible to remove safely without a specific pitman arm puller. Attempting to use other methods, like a hammer or a standard gear puller, will likely result in damage to the pitman arm or the gearbox itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52121986AG 52121986AF 52121986AE 52121986AD 52121986AC 52121986AA 52106835AG 68170214AB
This vehicle uses a hydraulically assisted, recirculating ball-type steering gear, not a rack and pinion system. The input shaft has 26 splines. The pressure port thread size is M18 x 1.5 and the return port is M20 x 1.5.
