Steering Rack and Pinion Guide for the 2003-2008 Lincoln Navigator
Experiencing steering problems with your Navigator? Here’s what you need to know before replacing your rack and pinion.
- The most common failure symptom is a power steering fluid leak, which can be hidden inside the rubber bellows boots.
- You must use MERCON V automatic transmission fluid; using standard power steering fluid will cause damage.
- Aftermarket parts are almost always remanufactured; quality can vary, so check warranties.
- A professional wheel alignment is mandatory immediately after replacing the rack and pinion.
Common Failure Symptoms in the 2003-2008 Navigator
When the rack and pinion starts to fail on a Navigator, the signs are usually noticeable. Ignoring them can lead to a complete loss of power steering, making the vehicle very difficult to control, especially at low speeds. Be aware of these common symptoms:
- Power Steering Fluid Leaks: This is the most common sign. You may find puddles of reddish-brown fluid under the front of your vehicle. Leaks often come from worn-out internal seals. The fluid can leak externally or internally into the protective rubber boots (bellows) on the ends of the rack, so a leak isn't always visible on the ground until the boot tears.

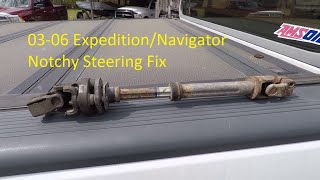

- Steering Difficulty or Stiffness: 🎬 Watch: How to diagnose and fix notchy or stiff steering. The steering wheel may feel unusually heavy or tight, especially when turning at slow speeds. This can happen in one or both directions and points to a loss of hydraulic pressure inside the rack.
- Grinding or Clunking Noises: Unusual sounds like grinding, clunking, or knocking when you turn the steering wheel often indicate worn-out gears or bearings inside the rack assembly.
- Loose or Wandering Steering: If you feel excessive play or a “dead spot” in the steering wheel, it means the internal components are worn. The vehicle may feel like it's wandering on the road, requiring constant correction to drive straight.
Check Other Parts First
Steering issues aren't always caused by the rack and pinion. A whining noise could be a failing power steering pump or even a bad idler pulley. Loose steering could also be caused by worn tie rod ends or ball joints. Always perform a full inspection of the steering and suspension system before deciding to replace the rack.
Choosing the Right Aftermarket Rack and Pinion
For a 2003-2008 Navigator, the original OEM rack is expensive, and new aftermarket parts offer a more affordable solution. The brands available—Accudrive, BBB Industries, and Cardone—are primarily remanufacturers. This means they rebuild original (OEM) cores to factory specifications. Quality can vary, but many offer a good balance of price and performance.
- Cardone: One of the most widely known remanufacturers. Opinions are often mixed; some technicians have had success, while others report issues. They are typically the most budget-friendly option.
- BBB Industries: Often considered a solid mid-tier option. Some technicians report low failure rates and good quality control with their remanufactured parts.
- Accudrive Racks: This brand is often sold through major auto parts stores and generally falls into a similar category as other remanufactured options.
New vs. Remanufactured
Most aftermarket options for this vehicle are remanufactured. A quality remanufactured part uses the original OEM housing, which is durable, and replaces all wear items like seals, O-rings, and bushings. This can be a reliable repair, but success depends on the rebuilder's quality control. Always check the warranty, as lifetime warranties are common and can protect against a defective part.
Cost to Replace a Lincoln Navigator Rack and Pinion
| Part Type | Estimated Part Cost | Estimated Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket | $195 - $305 | $285 - $420 | $480 - $725 |
| Remanufactured Aftermarket | $170 - $330 (plus core charge) | $285 - $420 | $455 - $750 |
| New OEM | $1,100 - $1,220+ | $285 - $420 | $1,385 - $1,640+ |
Cost estimates are approximate and do not include taxes, fees, core charges, or the mandatory wheel alignment needed after replacement. Labor costs are based on typical shop rates.
Frequently Asked Questions
Is there a recall on the 2003-2008 Navigator steering rack?
No, there are no specific recalls from the NHTSA for the power steering rack and pinion on the 2003-2008 Lincoln Navigator. There was a recall for a front axle pinion gear on a very small number of 2023 models, but this is unrelated to the steering system of the 2003-2008 generation.
Can I replace the rack and pinion myself?
This is a difficult job for a DIY mechanic. It requires safely lifting the front of a heavy vehicle, disconnecting hydraulic lines (which is messy), separating the steering shaft, and removing the outer tie rod ends. Special tools may be needed, and a full front-end alignment is required immediately after the job is done. For most owners, professional installation is recommended.
🎬 See this step-by-step walkthrough of the rack replacement process.What fluid should I use in my Navigator's power steering system?
For this generation of Navigator and related Ford platforms, you must use MERCON V automatic transmission fluid (ATF), not standard power steering fluid. Using the wrong fluid can damage the pump and the new rack and pinion seals. Always flush the old fluid from the system before installing the new part to prevent contamination.
🎬 Watch: An easy guide to flushing your power steering system.Do I need to replace the tie rods with the rack and pinion?

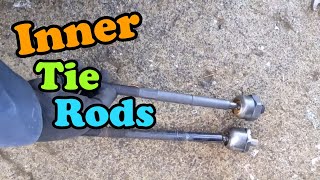

Most new and remanufactured rack and pinion assemblies come with new inner tie rods already installed. You will need to reuse your outer tie rod ends. However, it is highly recommended to inspect the outer tie rods for wear and replace them at the same time if they are worn. This will save you money on labor and ensure the alignment can be set correctly.
Helpful Videos
Technical Specifications

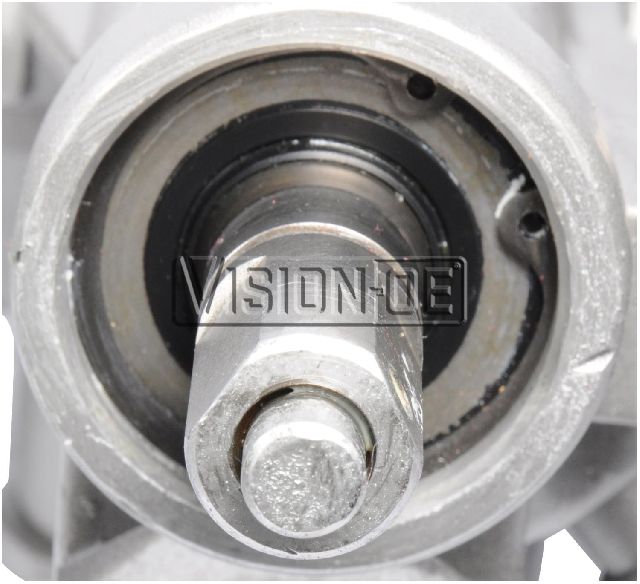

OEM Part Numbers: 2L7Z3A713AA 4L7Z3A713AA
This is a hydraulic power steering rack. Most replacements come with inner tie rods included but require you to transfer the outer tie rods from your old unit. It is not equipped with an Electronic Variable Orifice (EVO) component.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
