Ford Expedition HVAC Blower Motor Resistor & Controller Guide (2003-2009)
Fix your Expedition's fan speed problems and understand why just replacing the resistor isn't always enough.
- The fan only working on high is the #1 symptom of a failed resistor.
- A failing blower motor is the usual cause; it overheats and burns out the resistor.
- Always inspect the electrical connector for melting and replace it if any damage is seen.
- Verify if you have Manual or Automatic climate control before ordering to ensure you get the right part.
Is Your Expedition's Fan Only Working on High?
If your 2003-2009 Ford Expedition's climate control fan only works on the highest setting, or if some speeds have stopped working, you likely have a failed HVAC blower motor resistor. This is a very common issue. The resistor controls fan speed, and when its internal circuits burn out, you lose the lower speeds. The high-speed setting works because it has a separate circuit that bypasses the resistor entirely.
Known Issues for 2003-2009 Ford Expedition
The biggest issue for this generation of Expedition isn't just the resistor failing; it's why it fails. An aging blower motor draws more electricity than it should. This extra electrical load creates excess heat, which burns out the resistor and can even melt the electrical connector (pigtail) attached to it. Many owners replace the resistor only to have the new one fail quickly because the root cause—the overworked blower motor—wasn't addressed.
Choosing the Right Aftermarket Part

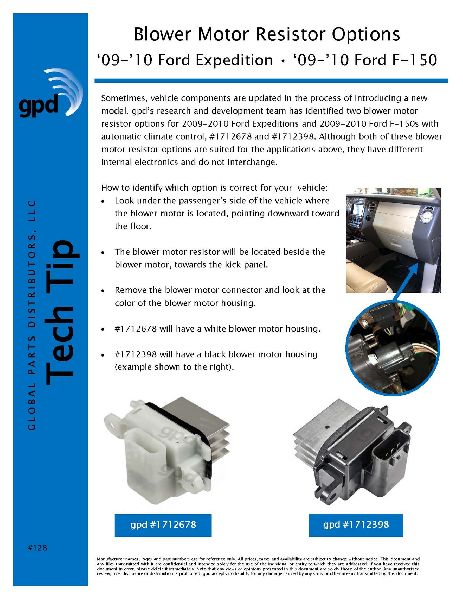

One of the most critical steps is identifying your HVAC system. Your Expedition has either Manual Climate Control (with knobs for temperature and fan speed) or Electronic Automatic Temperature Control (EATC) (with a digital display and an "Auto" button). These two systems use different parts that are not interchangeable.
- Manual AC: Uses a traditional Blower Motor Resistor.
- Automatic AC (EATC): Uses a Blower Motor Speed Controller, which is a more complex electronic module. 🎬 Watch this walkthrough for replacing the automatic blower speed controller.
Ordering the wrong part is a common mistake. Double-check your vehicle's system before purchasing.
Aftermarket Brand Tiers
When it comes to aftermarket brands, quality can vary. Some owners report that for this specific part, certain aftermarket versions don't work correctly and that only the OEM Motorcraft part solves the issue. However, many have success with quality aftermarket brands, especially when the entire system (motor, resistor, and connector) is addressed.
- OEM-Level (Higher Cost): Motorcraft is the original Ford part and the benchmark for fit and function. If you want to be certain the part will work without issues, this is the safest choice.
- Quality Aftermarket (Mid-Range): Brands like Dorman, Standard Ignition (SMP), and Four Seasons are well-known. Dorman often includes a new pigtail connector in their kits, which is a major advantage since the connector is a frequent failure point. Four Seasons is a trusted name in HVAC parts.
- Economy (Lower Cost): Brands like Global Parts and True Tech fall into this category. They offer significant savings but may not have the same longevity or precise performance as higher-tiered options. For a component that is prone to failure from external factors (like a bad blower motor), a lower-cost part might be a reasonable choice if you are also replacing the motor.
Cost of Replacing the Blower Motor Resistor
| Part | Estimated Cost |
|---|---|
| New Aftermarket Resistor/Controller | $17 - $201 |
| New OEM (Motorcraft) Resistor/Controller | $55 - $250 |
| Shop Labor | $50 - $125 |
Frequently Asked Questions (FAQ)
Why did my new blower motor resistor fail after only a few weeks?
The most common reason for a repeat failure is that the original problem was not the resistor itself, but an old blower motor drawing too much electrical current. This overload burns out the new resistor. To fix it for good, you should inspect and likely replace the blower motor and the electrical connector along with the resistor.
Do I really need to replace the electrical connector (pigtail)?
It is highly recommended. The connector is a known failure point that melts from the heat caused by a failing blower motor. Even if it doesn't look badly melted, the internal contacts can be damaged, leading to a poor connection and another failed resistor. Many aftermarket kits include a new pigtail for this reason.
Is this a difficult repair to do myself?
No, this is a very DIY-friendly job. The resistor is located behind the glove box and is typically held in by only two 8mm screws. The entire process usually takes less than 30 minutes. 🎬 Watch this step-by-step guide to replacing your blower motor resistor. If you need to replace the connector, it will involve cutting and splicing wires, but kits with butt connectors make this straightforward.
What's the difference between a resistor and a speed controller?
They do the same job but are for different systems. A traditional "resistor" is for manual climate controls (knobs). A "speed controller" or "module" is for automatic climate controls (digital display with an "Auto" button). They are not interchangeable, so be sure to order the correct part for your Expedition's specific system.
Are there any recalls for this part on my 2003-2009 Expedition?
No. While there was a major recall (NHTSA 22S56) for the blower motor assembly on 2015-2017 Ford Expeditions due to a fire risk, it does not apply to the 2003-2009 model years. However, Ford did issue a Technical Service Bulletin (SSM 47797) for 2009 models recommending the replacement of the connector pigtail when replacing the speed control to prevent repeat repairs.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4L2Z-19A706-AA YH-1716 3F2Z-18591-AA YH-1715
Located behind the passenger side glove box. Secured with two 8mm screws. Part type (resistor vs. controller) depends on Manual vs. Automatic climate control system.
