Lexus GX470 Door Lock Actuator Guide (2003-2009)
Here is what you need to know when the door locks on your 2003-2009 Lexus GX470 start acting up.
- Door lock actuator failure is a very common problem on the 2003-2009 GX470.
- A missing confirmation 'chirp' when locking is a primary indicator of a failed actuator.
- Aftermarket actuators from brands like Replacement and Standard Ignition offer a cost-effective alternative to expensive OEM parts.
- The replacement can be done by a DIYer in about 1-2 hours per door, saving on labor costs.
Is Your GX470 Door Lock Actuator Failing?
Door lock actuator failure is a very common issue on the 2003-2009 Lexus GX470. The problem is usually not the vehicle's computer, but the small electric motor inside the actuator assembly itself. Over years of use, the internal components of this motor wear out, leading to failure. Often, when one actuator fails, others may soon follow.
Key Failure Symptoms
🎬 Watch: See these common door lock failure symptoms in action- No Lock/Unlock Response: One or more doors do not lock or unlock when using the key fob or the power lock switch on the door panel.
- No Confirmation "Chirp": When you lock the vehicle, you don't hear the familiar confirmation beep. The system does this when it detects a door has not successfully locked.
- Strange Noises: You may hear a buzzing, grinding, or rapid clicking sound from inside the door when you try to lock or unlock it. This is a sign the internal gears are stripped or the motor is struggling.
- Erratic Behavior: The locks may work sometimes but not others, or they may cycle between locked and unlocked on their own.
Check All Your Doors

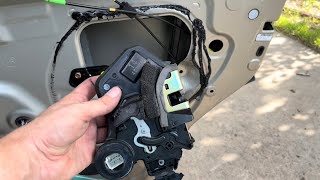

If you notice the lock chirp is gone, manually check every door, including the rear cargo door. 🎬 See this walkthrough for replacing the rear door lock actuator An unlocked door is a security risk. The failed actuator will prevent that single door from locking electronically.
Choosing the Right Aftermarket Actuator
When replacing a failed actuator, you don't have to pay the high price for an OEM part from the dealer. Aftermarket parts offer a cost-effective solution. The main choice is between value-priced brands and premium aftermarket brands.
- Replacement Brand: This is a budget-friendly option. It meets the original fit and function requirements to get your door locking again. While it may not have the same long-term durability as more expensive options, it provides a significant cost saving, making it a practical choice for many owners.
- Standard Ignition (SMP): As a well-known and respected brand, Standard Ignition parts are considered premium aftermarket. They often use higher-quality materials and undergo more rigorous testing than basic replacement parts. Choosing a brand like Standard may provide greater peace of mind and potentially a longer service life, closer to what you would expect from an original part.
Pro Tip: Consider Replacing in Pairs
Because the actuators on all doors have seen the same amount of use, it's common for another to fail shortly after you replace the first one. To save time and hassle, some owners choose to replace the actuators on both the driver and passenger side doors at the same time.
Cost to Replace a GX470 Door Lock Actuator
The cost can vary depending on the brand you choose and whether you do the work yourself. The job is manageable for a DIYer with basic tools and can save you significant labor costs.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $48 - $275 |
| New OEM Actuator | $350 - $450 |
| Shop Labor (per door) | $100 - $180 |
| Total (DIY Aftermarket) | $48 - $275 |
| Total (Shop-Installed Aftermarket) | $148 - $455 |
Frequently Asked Questions
Is there a recall for the door lock actuators on the Lexus GX470?
No, there are no recalls for this specific issue. While the problem is common, it is considered a normal wear-and-tear item and not a safety recall.
Why did my car stop chirping when I lock it?
The confirmation chirp is programmed to sound only when all doors have successfully locked. If one actuator has failed and a door remains unlocked, the system will not produce the chirp. This is often the first way drivers realize there's a problem.
Can I just replace the small motor inside the actuator?
Yes, this is possible and is the cheapest fix. The failure is almost always a small internal DC motor that costs only a few dollars. However, this requires carefully disassembling the sealed actuator housing, replacing the motor, and reassembling it. It is a more advanced repair than simply replacing 🎬 Watch: How to fix the actuator for $5 by replacing the motor the entire actuator assembly.
Are all the door lock actuators the same?
No. The actuators are specific to each door (front left, front right, rear left, rear right, and rear cargo door). They are not interchangeable. Be sure to order the correct part for the specific door you are repairing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 69040-60520 69030-60160 69050-60100 69060-60100 69110-60090
Each actuator is specific to its door position (Front Left, Front Right, Rear Left, Rear Right, Tailgate). Ensure you order the correct part for your needs.
