A Guide to Replacing the Radiator in Your 2003-2010 Kia Sorento
Keep your Sorento's engine cool and prevent costly damage by understanding when and how to replace a failing radiator.
- The most common radiator failure on 2003-2010 Sorentos is a crack in the plastic end tanks.
- Driving with an overheating engine is a critical risk; pull over immediately to prevent major damage.
- For this vehicle, a quality aftermarket brand like CSF or Nissens offers the best balance of price and reliability.
- Always replace radiator hoses, the thermostat, and the radiator cap at the same time as the radiator for best results.
Is Your Sorento's Radiator Failing?
A failing radiator can lead to major engine problems. For the 2003-2010 Kia Sorento, the most common radiator failures involve the plastic parts. Over time, the plastic tanks on the sides or top and bottom can become brittle from constant heating and cooling, leading to cracks and leaks. You might also see leaks from the seams where the plastic tanks are crimped to the aluminum core.
Key Symptoms to Watch For:
- Visible Coolant Leaks: Puddles of brightly colored fluid (usually green, pink, or yellow) under the front of your Sorento are a sure sign of a leak.
- Engine Overheating: If your temperature gauge is climbing higher than normal, the radiator may not be cooling effectively. This could be due to a leak or an internal clog.
- Sweet Smell: The smell of hot coolant is distinct and sweet. If you notice this smell after driving, coolant is likely leaking onto hot engine parts.
- Low Coolant Level: Frequently needing to add coolant to the overflow tank means you have a leak somewhere in the system.
- Transmission Problems: On automatic models, the transmission fluid is cooled by a circuit inside the radiator. A clogged or failing radiator can cause the transmission to overheat and shift poorly.
Known Issues for 2003-2010 Sorento
While there are no specific NHTSA recalls for the radiator itself on these models, cooling system components are a common point of failure with age. The most frequent problem is the plastic end tanks cracking. Some owners have also reported issues with the coolant overflow reservoir cracking or leaks from a plastic 'T' fitting near the firewall.
Choosing Your Aftermarket Radiator: Brand Tiers
For an older vehicle like the 2003-2010 Sorento, a quality aftermarket radiator is a smart and cost-effective choice. OEM parts can be very expensive and may not offer a significant advantage. However, not all aftermarket brands are created equal.
Aftermarket Brand Comparison
| Brand Tier | Brands | Quality & Fit Assessment |
|---|---|---|

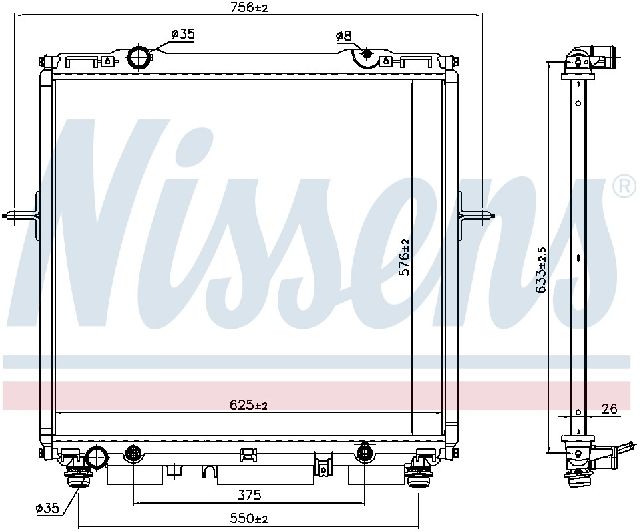

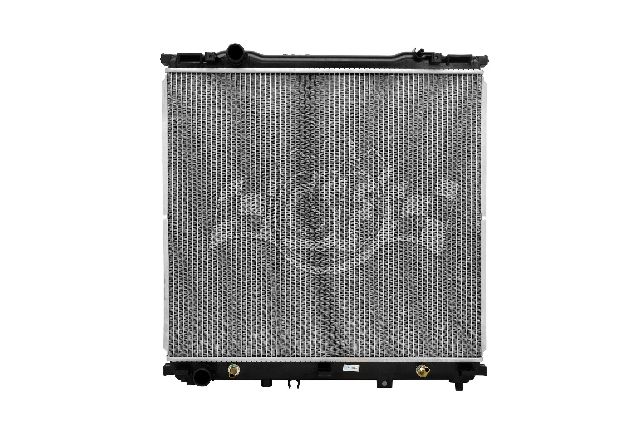

| Premium Aftermarket | CSF, Nissens | These brands are generally well-regarded. Nissens is often praised for its excellent, OEM-like fit and finish, making for an easier installation. CSF is known for quality construction, sometimes offering all-aluminum options that eliminate the plastic tank failure point. They provide a good balance of quality and value. |

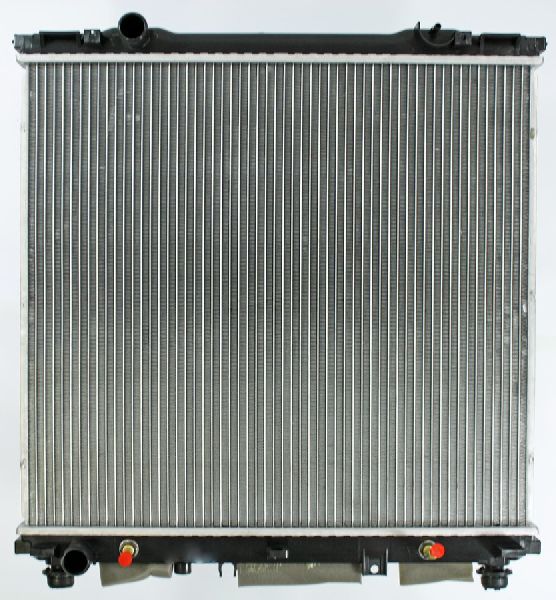

| Standard / Economy | APDI, Global Parts, One Stop Solutions, Onix | These brands offer a budget-friendly solution. Fit and finish can be inconsistent. Some user reviews for brands like APDI mention issues with incorrect fittings or cheaper-feeling materials. They can be a viable option if the budget is tight, but inspect the part carefully before installation and be prepared for potential modifications. |
Pro Tip: Check the Transmission Cooler Fittings
Your Sorento has an automatic transmission, so the radiator includes a built-in cooler for the transmission fluid. When you receive your new radiator, double-check that the transmission cooler line fittings match your vehicle's lines. This is a common point of error with some budget brands.
Frequently Asked Questions (FAQ)
Is replacing the radiator a DIY job?
Yes, for someone with moderate mechanical skill. 🎬 Watch this step-by-step radiator replacement guide for 2003-2006 models. The process involves draining the coolant, removing hoses, unbolting the fan shroud and condenser, and then removing the radiator itself. It does not require specialized tools, but you must be careful with the A/C condenser, which is attached to the front of the radiator. If you are not comfortable with this, a professional mechanic can do the job in a few hours.
Should I replace the radiator hoses and thermostat at the same time?
Absolutely. It's highly recommended. The radiator hoses are exposed to the same heat and pressure that caused the radiator to fail, and they are likely near the end of their life too. Replacing the thermostat is a cheap and easy preventative measure while the system is already drained. 🎬 See how to properly replace the thermostat on your Sorento. A new radiator cap is also a wise investment.
What kind of coolant should I use for my 2003-2010 Sorento?
Always check your owner's manual for the specific coolant type. Generally, a green or blue ethylene glycol-based coolant is used. Using the wrong type can cause corrosion and damage to your new radiator and other cooling system components. Never mix different types of coolant.
🎬 Watch this video to learn how to service the cooling system.Is an all-aluminum radiator better than one with plastic tanks?
An all-aluminum radiator can be more durable because it eliminates the plastic tanks that are the most common failure point. However, a quality plastic/aluminum radiator from a reputable brand like Nissens or CSF is often more than sufficient for a daily-driven Sorento and is usually more affordable.
Helpful Videos
Technical Specifications
OEM Part Numbers: 253103E200 253113E250 253103E255 253103E930
Construction: Aluminum Core with Plastic Tanks. Core dimensions will vary slightly by year and transmission type. All automatic models include an integrated transmission oil cooler.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
