Pontiac Vibe Radiator Replacement Guide for 2003-2010 Models
Keep your Vibe's Toyota-built engine from overheating by understanding its most critical cooling system part.
- The Pontiac Vibe shares its radiator with the Toyota Matrix; parts are interchangeable.
- Denso is the likely OEM supplier and a top choice for replacement, with CSF and Spectra being quality aftermarket alternatives.
- The most common failure is age-related cracking of the plastic side tanks.
- Always replace the radiator cap and consider replacing hoses at the same time to ensure a reliable repair.
Signs of a Failing Radiator
A bad radiator will give you clear warning signs. If you notice any of these symptoms with your 2003-2010 Pontiac Vibe, it's time to inspect your cooling system immediately.
🎬 See how to perform a complete radiator replacement on your Vibe.- Engine Overheating: This is the most serious sign. If your temperature gauge goes into the red or a warning light comes on, your radiator may be clogged or leaking.
- Coolant Leaks: Finding puddles of pink, red, or green fluid under your car is a sure sign of a leak. The plastic tanks on the sides of the radiator are a common failure point and can develop cracks over time. You might also see white or colored crusty residue on the radiator, which indicates a slow leak that has dried.
- Low Coolant Level: Frequently needing to add coolant to the overflow tank is a sign of a leak somewhere in the system.
- Sweet Smell: Coolant has a distinct sweet, syrupy smell when it burns. If you smell this, it means coolant is leaking onto a hot engine part.
Warning: Never open the radiator cap when the engine is hot. The system is under pressure and can release boiling coolant and steam, causing severe burns.
Choosing the Right Aftermarket Radiator
Since the Pontiac Vibe is a joint venture with Toyota, it shares many parts with the Toyota Matrix, including the radiator. The original radiator was likely made by Denso. When choosing a replacement, you have several good options that balance quality and price.
Aftermarket Brand Quality Tiers for Pontiac Vibe
| Tier | Brands | Notes |
|---|---|---|
| OEM Equivalent | Denso | As the likely original equipment manufacturer, Denso offers a direct-fit replacement that will perform just like the factory part. Many owners on forums recommend sticking with Denso for reliability. |
| Quality Aftermarket | CSF, Spectra, Mishimoto | These brands are well-regarded in the aftermarket. They produce radiators with plastic tanks and aluminum cores, similar to the OEM style. CSF, in particular, is noted by some mechanics as one of the better plastic tank radiator brands. Mishimoto offers a lifetime warranty on their direct-fit replacement radiators. |
| Standard Aftermarket | APDI, Global Parts, One Stop Solutions, Onix | These brands provide a cost-effective solution for replacing a failed radiator. They are designed to meet original equipment specifications for fit and function, making them a practical choice for budget-conscious repairs. |
Pro Tip: Many aftermarket radiators for the Vibe are designed to fit both automatic and manual transmissions. If you have a manual, the replacement radiator may have unused connections for an automatic transmission cooler. These can be safely ignored or capped off.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from GM or Toyota for widespread radiator failure on the 2003-2010 Pontiac Vibe. The most common issue is age-related failure of the plastic end tanks, which can become brittle and crack after many years of heat cycles. While there are numerous recalls for this vehicle, they primarily concern airbags and are not related to the cooling system.
Frequently Asked Questions (FAQ)
Is the Pontiac Vibe radiator the same as a Toyota Matrix radiator?

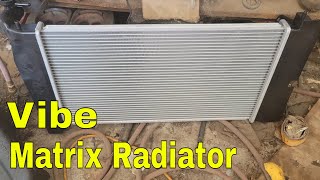

Yes, for corresponding years and engine sizes, the Pontiac Vibe and Toyota Matrix share the same radiator and many other mechanical parts. 🎬 Watch this step-by-step guide for installing a Vibe or Matrix radiator. The Vibe was built by a joint venture between GM and Toyota.
Should I replace my radiator cap and hoses at the same time?
Yes, it is highly recommended. A new radiator cap will ensure the system holds the correct pressure, and new hoses prevent the risk of an old, brittle hose failing after you've installed a new radiator. It's a small extra cost that ensures the entire system is reliable.
What type of coolant does the 2003-2010 Pontiac Vibe use?
You should use a high-quality coolant designed for Toyota vehicles, often referred to as "Toyota Red" or a compatible pink/red extended life coolant. Using a universal "all makes and models" coolant is also an option, but always ensure it is mixed 50/50 with distilled water if it is not a pre-mixed formula.
Can a bad radiator damage my engine?
Absolutely. A failing radiator will cause your engine to overheat. Continued driving with an overheating engine can lead to catastrophic damage, including a warped cylinder head, a blown head gasket, or complete engine failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88969096 88969094 19205591 88975766 164100T030 164000D250
The radiator for the 2003-2010 Pontiac Vibe features an aluminum core with plastic end tanks. It is a single-row core design. Models for automatic transmissions include an integrated transmission fluid cooler, while manual transmission models do not, though many aftermarket replacements are universal fits.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
