A Guide to Replacing Fuel Injectors on the 2003-2012 BMW Z4
Understanding the critical differences in fuel injectors for your E85, E86, or E89 Z4 before you buy.
- First, identify your engine. 2003-2008 models (M54/N52) use simpler port injectors, while 2009-2012 sDrive35i models (N54) use complex, failure-prone direct injectors.
- For N54 engines, only buy new, matching sets of the latest Index 12 injectors. Do not mix indexes.
- Replacement on an N54 engine is difficult and requires special tools and mandatory electronic coding. This is not a simple DIY job.
- Symptoms like rough cold starts, long cranks, and engine misfires strongly point to injector failure, especially on the N54 engine.
Port Injection vs. Direct Injection: A Tale of Two Z4s
When shopping for fuel injectors for a 2003-2012 BMW Z4, the single most important factor is identifying your engine. The Z4 from this era used two very different types of fuel injection systems, and the parts are not interchangeable.

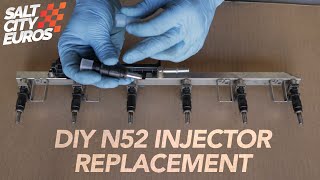

- 2003-2008 Z4 (E85/E86 Chassis): These models, typically equipped with M54 or N52 engines, use a standard port fuel injection system. The injectors are relatively simple, durable, and less prone to failure. Replacement is a more straightforward job. 🎬 Watch: Easy fuel injector replacement for N52 engines
- 2009-2012 Z4 sDrive35i/35is (E89 Chassis): These models use the N54 twin-turbocharged engine with a high-pressure direct injection system. These piezoelectric injectors are a well-known weak point and are notorious for failing. They are more expensive, more difficult to replace, and require special electronic coding to the vehicle.
N54 Injector Warning
The piezoelectric injectors on the N54 engine have gone through many revisions from BMW, identified by an "index number" printed on the injector. The latest and most reliable version is Index 12. It is critical to not mix different index numbers within the same engine bank (or preferably, at all). If you are replacing one injector, you should replace all six with new, matching Index 12 injectors to avoid persistent running issues.
Symptoms of a Failing Fuel Injector
A bad fuel injector can cause a range of problems, from annoying to severe. Common signs include:
- Rough Idle: The engine shakes or vibrates, especially when stopped.
- Engine Misfires: You may feel stumbling or hesitation during acceleration. This will often trigger a Check Engine Light with codes from P0300-P0306 (for specific cylinders).
- Difficulty Starting: Leaking injectors can flood a cylinder, causing long crank times, especially on a cold start for N54 engines.
- Poor Fuel Economy: A leaking or malfunctioning injector wastes fuel.
- Fuel Smell: You may notice a raw fuel smell from the engine bay or exhaust. 🎬 Watch: 8 common signs your BMW injectors are failing
Choosing the Right Aftermarket Injector
While a Genuine BMW part is always an option, quality aftermarket brands can offer the same performance for less. However, for the sensitive N54 direct injectors, sticking to OEM suppliers is strongly recommended.
Brand Quality Tiers for BMW Z4

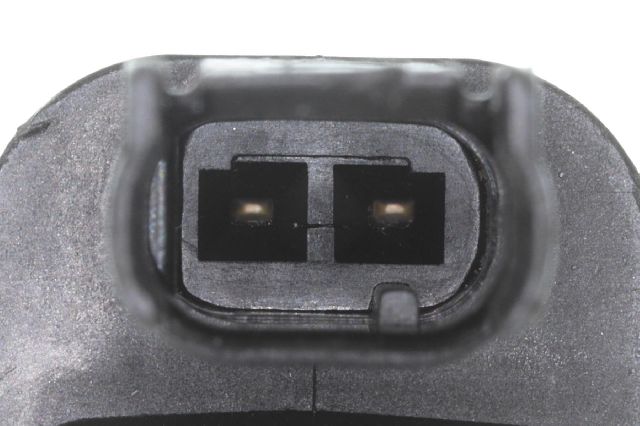

- Tier 1 (OEM Quality): Brands like Bosch, Vemo (Continental/Vitesco), and Siemens are often the original manufacturers for BMW. For N54 engines, Vitesco is the supplier for the latest Index 12 injectors. Choosing these brands ensures perfect fit and performance.
- Tier 2 (High-Quality Aftermarket): Standard Ignition (Standard Motor Products) and Beck Arnley are reputable brands that produce parts to meet or exceed OEM specifications. They are a solid choice for the port-injected M54 and N52 engines.

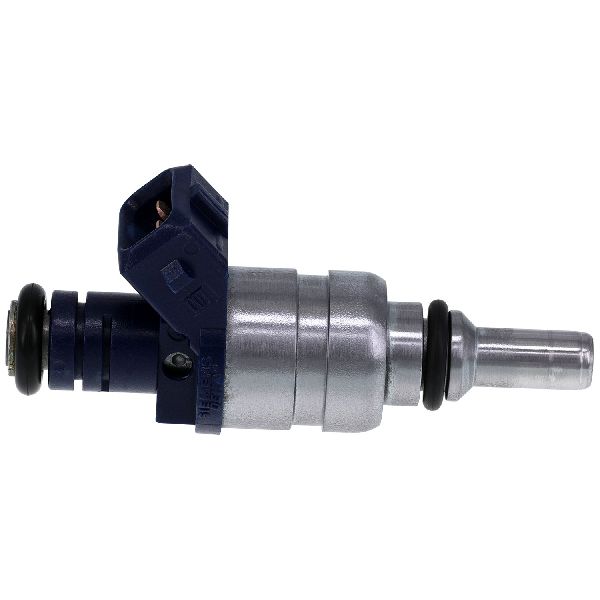

- Tier 3 (Budget): GBR Fuel Injection offers remanufactured injectors. While cost-effective, remanufactured parts can be a gamble, especially for the high-stress N54 injectors. They are a viable budget option for older M54/N52 engines if the cost is a primary concern.
Pro Tip: Always Replace Seals
Whenever you remove or replace fuel injectors, you must replace the rubber O-rings and seals. For N54 direct injectors, you must also replace the small, single-use metal ring called a "decoupling element." Reusing old seals will cause fuel and pressure leaks.
| Injector Type | Price Range (Single Injector) | Price Range (Full Set of 6) |
|---|---|---|
| Port Injector (M54/N52 Engine) | $57 - $120 | $340 - $720 |
| Direct Injector (N54 Engine) | $150 - $350+ | $900 - $2100+ |
Frequently Asked Questions
Do I have to replace all 6 fuel injectors at once?
For N54 engines, yes, it is highly recommended to replace all six injectors at the same time to ensure they are all the latest matching index number. For M54 and N52 engines, you can replace a single failed injector, but if the car has high mileage, replacing them as a set can prevent future failures and ensure balanced fuel delivery.
What are fuel injector "index numbers"?
Index numbers are specific to the N54 direct injectors. They represent different revisions or versions of the injector made by BMW to fix issues. A higher number means a newer version. Index 12 is the most current and reliable version. These numbers are critical because each index has a slightly different flow rate that must be programmed into the car's computer.
Do I need to code or program the new injectors?

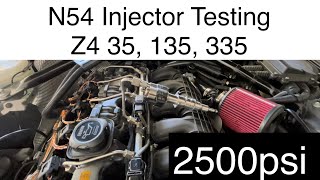

For the N54 engine, yes, coding is mandatory. Each injector has a specific calibration value printed on it that must be entered into the ECU using a BMW-specific scan tool. Failure to do this will result in a rough running engine, poor performance, and potential engine damage. 🎬 See this walkthrough on testing and replacing N54 injectors For M54 and N52 engines, coding is not required.
Can I just use a fuel injector cleaner?
If your issue is a minor clog, a quality fuel system cleaner might help temporarily. However, it will not fix a leaking or electrically failed injector. For the common leaking issues on N54 injectors, replacement is the only permanent solution.

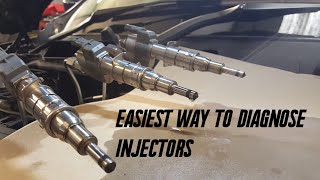

Helpful Videos
Technical Specifications
OEM Part Numbers: 13537546244 13537546245 13537531634 13538616079 13647597870
Varies by engine. M54/N52 engines use port fuel injectors. N54 engines use high-pressure piezoelectric direct fuel injectors.
