Essential Guide to the Timing Belt & Water Pump for the 2003-2012 Volvo XC90 (2.5T & T6)
Understanding this critical service is key to preventing catastrophic engine failure in your XC90.
- This service is only for 2.5T and T6 engines; V8 and 3.2L engines have timing chains.
- Strictly follow the 10-year or specified mileage replacement interval, whichever comes first, to prevent catastrophic engine failure.
- Always use a complete, high-quality kit from an OEM supplier like Continental or Gates, including the belt, tensioner, and idlers.
- Due to the complexity and risk of engine damage from incorrect installation, this job is best left to a professional mechanic.
Is My XC90 Engine Belt or Chain Driven?
This is the most important question to answer before buying parts. This guide applies ONLY to Volvo XC90 models with a timing belt.
- 2.5T (5-Cylinder Turbo Engine): Uses a timing belt. These models were available from 2003-2012.
- T6 (2.9L 6-Cylinder Twin-Turbo Engine): Uses a timing belt. These models were available from 2003-2006.
V8 and 3.2L I6 Engines Have Timing Chains
If your XC90 has the 4.4L V8 (from 2005) or the 3.2L I6 engine (from 2007), it uses a timing chain, not a belt. A timing belt kit is not the correct part for your vehicle.
Symptoms of a Failing Timing Belt or Water Pump
A timing belt can often fail without any prior warning. 🎬 Watch: How to check if your belt is about to snap However, a failing water pump or belt tensioner may provide clues that service is needed immediately.
- Coolant Leaks: Puddles of coolant under the front, center of your engine are a classic sign of a failing water pump seal. You may also see dried coolant stains (often pink or blue) around the pump.
- Whining or Grinding Noises: A high-pitched whine or a grinding sound from the engine bay, especially one that changes with engine RPM, often points to a bad bearing in the water pump, tensioner, or idler pulley.
- Engine Overheating: If your temperature gauge starts to climb, the water pump may not be circulating coolant effectively.
- Ticking Sounds: A steady ticking noise from the engine could indicate a worn belt or a problem with the tensioner. 🎬 See a breakdown of common signs of timing belt failure
Critical Warning: If you notice any of these symptoms, especially coolant leaks or unusual noises from the engine, do not drive the vehicle. A seized water pump or failed tensioner will destroy the timing belt, leading to catastrophic engine failure.
Choosing the Right Aftermarket Kit
For a critical job like this, part quality is not the place to save money. The cost of a failed component is thousands of dollars in engine repairs. Many aftermarket brands are the original equipment manufacturers (OEMs) for Volvo, offering the same quality without the dealer markup.
Brand Quality Tiers
Based on owner feedback and mechanic consensus, here is a breakdown of available brands:
- Tier 1: OEM Supplier Quality (Highly Recommended)
These brands are known to supply parts directly to Volvo. Kits from these manufacturers are considered as reliable as Genuine Volvo parts. Look for kits that bundle components from these makers.

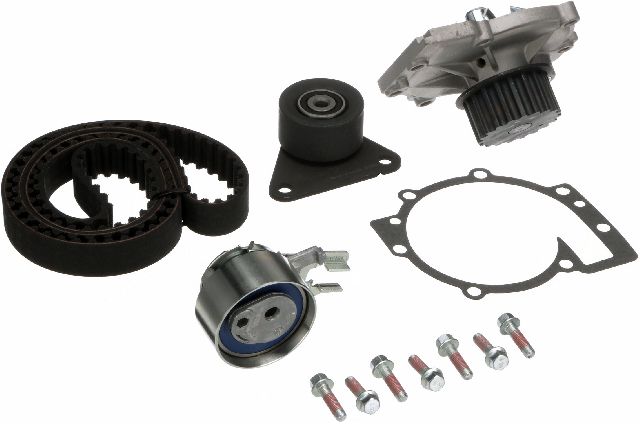

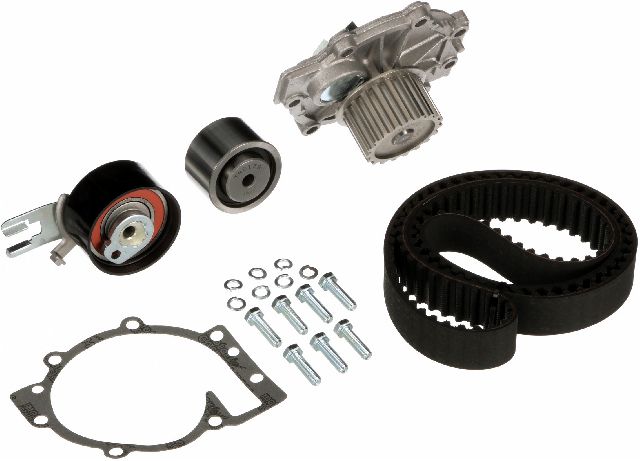

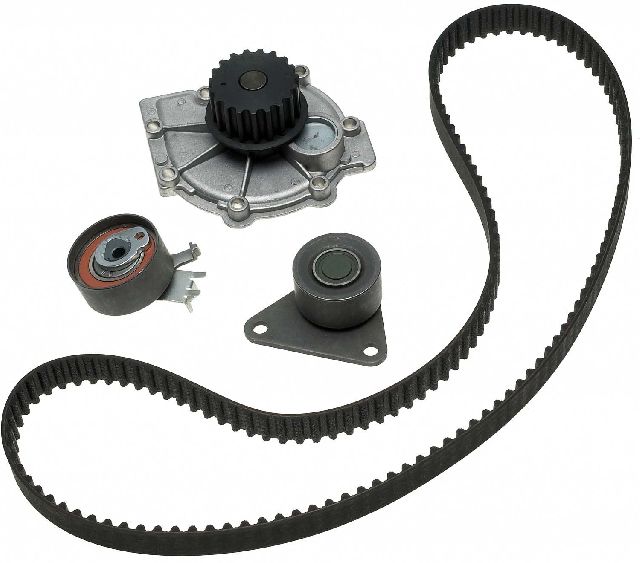

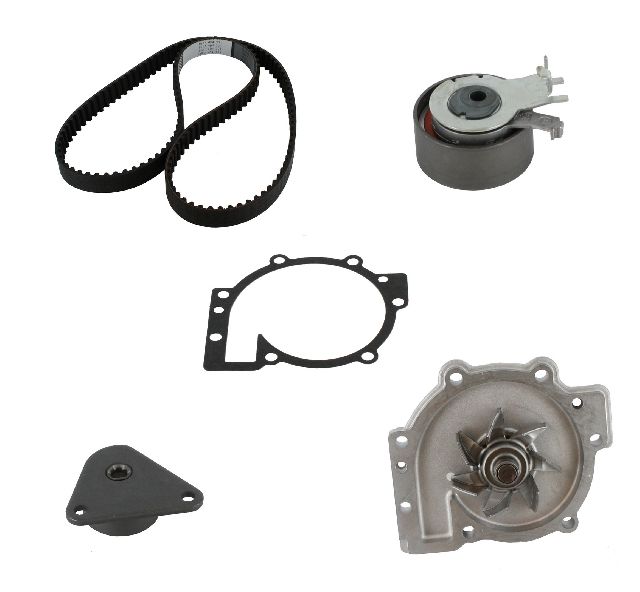

Brands: Continental (ContiTech), Gates, Aisin (for water pumps), INA (for tensioners/pulleys). - Tier 2: Reputable Aftermarket (Good)
These brands are well-known in the aftermarket and are used by many independent repair shops. They are generally reliable, though some users report occasional issues with hardware components like tensioners in lower-cost kits.

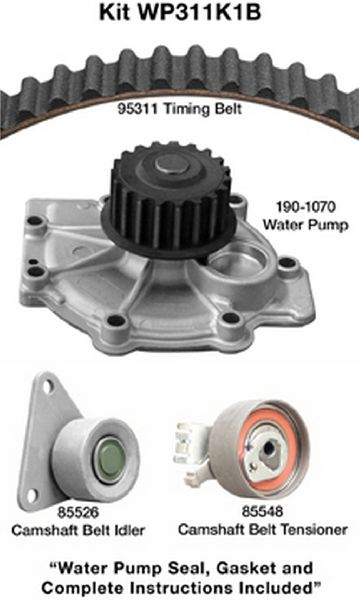

Brands: Dayco, Graf. - Tier 3: Economy Brands (Use with Caution)
These brands compete on price. While a lower price is tempting, the risk of premature failure of a tensioner, idler, or water pump bearing is higher. For a part this critical to your engine's health, it is strongly advised to invest in a Tier 1 kit.

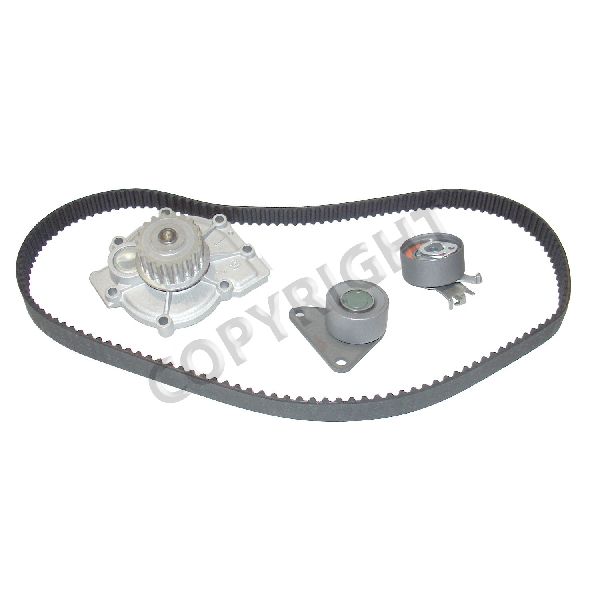

Brands: Airtex, GMB, US Motor Works.
Pro Tip: Check All Components
The most common point of failure in the timing system is often not the belt itself, but a seized tensioner or idler pulley bearing. This is why you must replace all components in the kit—belt, tensioner, and idler(s)—at the same time. Also, consider replacing the serpentine/accessory belt and its tensioner during the service, as a failing serpentine belt can get tangled with the timing belt and cause engine damage.
Volvo XC90 Timing Belt Kit Cost
The total cost will vary based on the parts you choose and local labor rates. Getting this job done at a professional shop is highly recommended due to its complexity.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit (Tier 1) | $250 - $442 |
| New Aftermarket Kit (Tier 2/3) | $135 - $249 |
| Genuine Volvo OEM Kit | $260 - $450+ |
| Shop Labor | $450 - $700+ |
| Total Professional Job | $700 - $1,150+ |
Frequently Asked Questions (FAQ)
What is the timing belt replacement interval for the XC90?
The interval depends on your engine. For the 2.5T, it is approximately 112,000 miles (180,000 km) or 10 years, whichever comes first. For the T6, it is approximately 100,000 miles (160,000 km) or 10 years, whichever comes first. The age limit is just as important as the mileage, as the rubber belt degrades over time.
What happens if my timing belt breaks?
The Volvo 2.5T and T6 engines are "interference" engines. This means that if the timing belt breaks, the pistons will slam into the open valves, causing catastrophic damage. This typically results in bent valves, damaged pistons, and a destroyed cylinder head, requiring an engine rebuild or replacement that costs thousands of dollars.
Why do I have to replace the water pump at the same time?
The water pump is driven by the timing belt and is located behind it. The labor required to access the timing belt is extensive, and you are already 95% of the way to the water pump. Water pumps are wear items and can fail. Replacing it along with the belt is a cheap insurance policy against having to pay for the same expensive labor charge again if the pump fails later.
Can I do this job myself (DIY)?
This is an advanced DIY job. It requires specific Volvo engine locking tools, a torque wrench, and a precise understanding of how to set the mechanical tensioner correctly. Mistakes during installation, such as incorrect timing or improper tension, will lead to engine failure. For most owners, this job is best left to a qualified independent 🎬 Watch this detailed walkthrough of the timing belt and pump replacement Volvo specialist or dealership.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30731727 274518 30751700
Kit must include: timing belt, tensioner pulley, and idler pulley. Water pump is included in comprehensive kits. Belt tooth count for the 2.5T/T6 engine is typically 142.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
