Volvo XC90 Steering Tie Rod End Guide (2003-2015)
A no-nonsense guide to diagnosing and choosing the right replacement tie rod ends for your first-generation Volvo XC90.
- The original equipment (OEM) supplier for the XC90 tie rod end is Lemförder; buying this brand is the surest way to get dealer-level quality.
- A four-wheel alignment is NOT optional after replacement. Factor this cost into your repair budget to avoid destroying your tires.
- Symptoms include clunking noises, loose steering, and uneven tire wear. Check for wear by jacking up the car and wiggling the wheel at the 3 and 9 o'clock positions.
- Replacing tie rods in pairs (left and right) is highly recommended for balanced handling and to avoid a repeat repair job and a second alignment fee.
Signs of a Failing Tie Rod End on Your XC90
A worn tie rod end on a first-generation XC90 is a common maintenance item. The signs are usually noticeable from the driver's seat. You should suspect a bad tie rod end if you experience any of the following:
- Clunking or Popping Noises: A distinct clunk or knock from the front end when turning the steering wheel or driving over bumps is a primary symptom. Forum members often describe this as a 'front end clunk' that's hard to pinpoint but is often traced back to worn tie rods or other suspension joints.
- Loose or Vague Steering: If your steering wheel feels like it has excessive play, or the vehicle wanders on the road, it could be due to a worn tie rod. The connection is no longer tight, leading to a delayed reaction between the steering wheel and the tires.
- Steering Wheel Vibration: A shaky steering wheel, especially at higher speeds, can be caused by a loose tie rod end allowing the wheel to shimmy.
- Uneven Tire Wear: This is a major sign. A bad tie rod allows the wheel's alignment (specifically the 'toe' angle) to shift, causing the inside or outside edge of your tires to wear down much faster than the rest of the tread.
Known Issues, Recalls, and Service Bulletins
For the 2003-2015 Volvo XC90, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Volvo or the NHTSA for steering tie rod ends. A recall for 2010-2011 models (NHTSA 11V286000) concerned a power steering fluid leak and was not related to the tie rod ends themselves. Failure of this part is considered normal wear and tear.
Choosing the Right Aftermarket Tie Rod End
When replacing tie rod ends on your XC90, you have a choice between OEM, OEM-supplier, and various aftermarket brands. The quality can vary significantly.
Brand Quality Tiers for Volvo XC90
Not all aftermarket parts are created equal. Here’s an honest breakdown of what to expect from the brands available for your vehicle.
| Tier | Brands | Quality & Longevity Assessment |
|---|---|---|
| OEM Supplier | Lemförder | Lemförder is the Original Equipment Manufacturer (OEM) for many Volvo suspension parts, including the tie rod ends for this XC90. Choosing Lemförder gives you the exact same part that came on your vehicle from the factory, ensuring perfect fitment and long life without the dealer markup. This is the recommended choice for quality and value. |
| Premium Aftermarket | Moog, Delphi, Beck Arnley | These brands are known for producing quality replacement parts. Moog often engineers 'problem solver' parts that may be more robust than the original. Delphi is a major OE supplier to many carmakers and a reliable choice. Beck Arnley often sources parts from OEM suppliers, so you might even receive a Lemförder part in a Beck Arnley box. |
| Standard / Economy | URO Parts, Vaico, Karlyn STI, QuickSteer, Suspensia, Dorman, ACDelco | This is the 'you get what you pay for' category. Brands like URO Parts have a reputation for being a budget-friendly option, but their quality on parts with moving joints and rubber components can be inconsistent. While they may fit and work initially, their lifespan is often shorter than premium brands. They can be a viable option for a vehicle near the end of its life or if budget is the primary concern, but expect to replace them sooner. |
Pro Tip: Replace in Pairs
It is highly recommended to replace both the left and right outer tie rod ends at the same time. If one side has failed due to age and mileage, the other side is likely not far behind. Replacing them in pairs ensures balanced steering feel and saves you from having to pay for another wheel alignment in the near future.
Frequently Asked Questions (FAQ)
Do I absolutely need a wheel alignment after replacing tie rods?
Yes, 100%. Replacing a tie rod end, inner or outer, will change the front wheels' toe alignment. Driving without an alignment will cause crooked steering, rapid and uneven tire wear, and potentially unsafe handling. Plan for the cost of a professional four-wheel alignment immediately after the parts are installed.
What's the difference between an inner and outer tie rod?

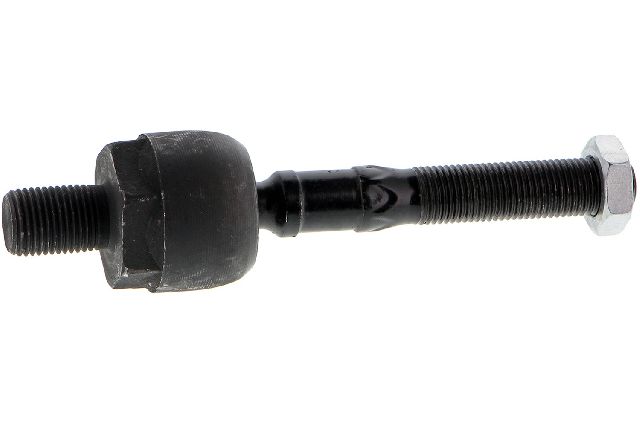

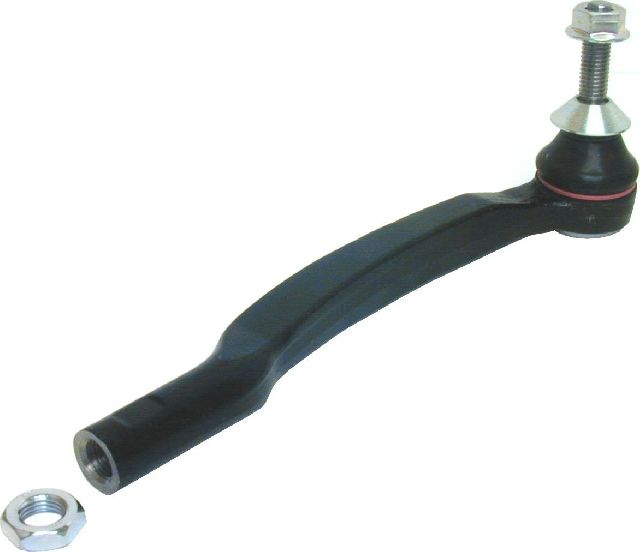

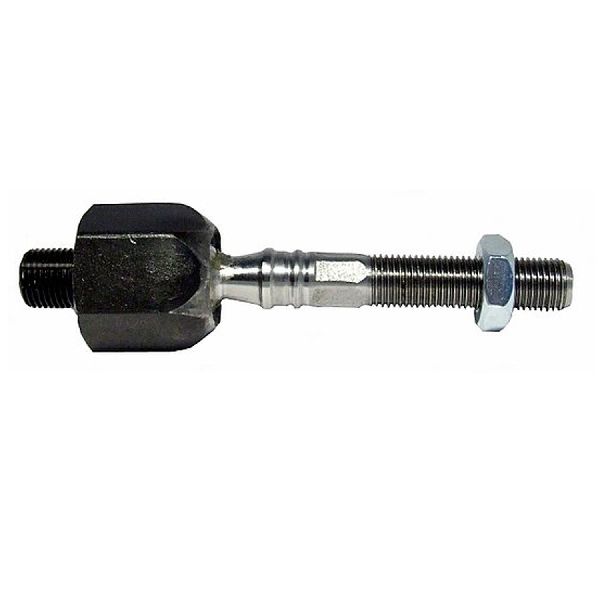

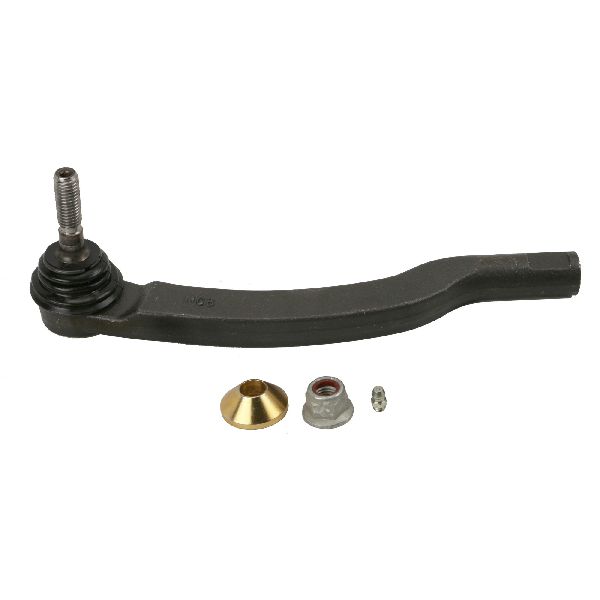

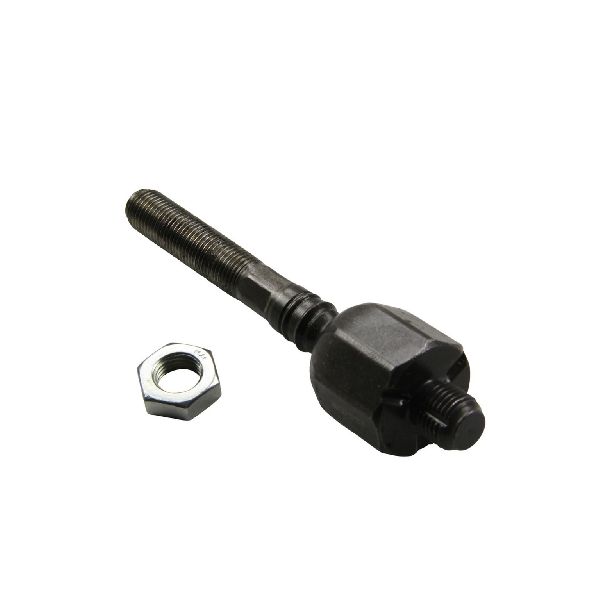

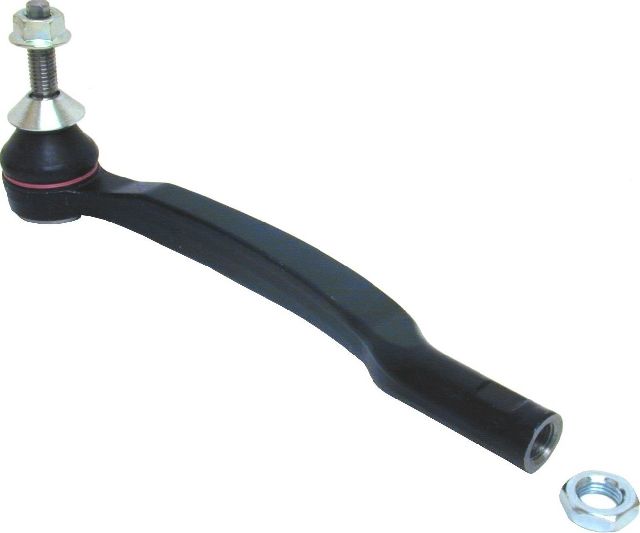

Your XC90 has both. The outer tie rod end connects to the steering knuckle at the wheel. The inner tie rod connects to the steering rack, hidden under a rubber boot. Outer tie rods fail more frequently as they are more exposed. Inner tie rods can also wear out, causing similar symptoms, but are more difficult to replace. A proper diagnosis involves checking both for play.
Can I replace just the tie rod end myself?
Yes, replacing the outer tie rod end is a common DIY job for those with mechanical experience. 🎬 Watch this step-by-step guide to replacing inner and outer tie rods. It requires safely lifting and supporting the vehicle, basic hand tools, and a torque wrench. Sometimes a special tool called a tie rod puller or a 'pickle fork' is needed to separate the joint. The most important step is counting the turns when removing the old tie rod to get the alignment close enough to drive safely to an alignment shop.
How can I tell if it's the tie rod or a ball joint?
The symptoms are very similar (clunking, loose steering). The diagnostic test is the key. With the front wheel jacked up, grab the tire at the 3 and 9 o'clock positions and try to wiggle it. If you feel play or hear a clunk, the tie rod is the likely culprit. If you grab it at 12 and 6 o'clock and feel play, the issue is more likely a wheel bearing or ball joint.
Helpful Videos
Technical Specifications
OEM Part Numbers: 274353 (Inner)
The first-generation Volvo XC90 (2003-2015) uses the same inner and outer tie rod ends across all engine types (2.5T, 3.2, T6, V8) and drivetrains (FWD/AWD). Parts are specific to the left (driver) and right (passenger) side for outer tie rods. Inner tie rods are typically interchangeable side-to-side. An alignment is mandatory after replacement.
