A Guide to Front Disc Brake Rotors for the 2004-2006 Scion xA
Everything you need to know about choosing the right replacement front brake rotors for your first-generation Scion xA.
- The most common sign of a bad rotor on an xA is a pulsating brake pedal or vibrating steering wheel when braking.
- For daily driving, quality aftermarket brands like Centric, Bosch, or Wagner with a corrosion-resistant coating are recommended over economy or high-performance rotors.
- Always replace front rotors in pairs and install new brake pads at the same time for safety and performance.
- This is a DIY-friendly job for those with basic tools, with the main challenge being a rotor potentially rusted to the hub.
Is it Time to Replace Your Scion xA's Brake Rotors?
Your Scion xA's braking system is generally reliable, but the front disc rotors are wear-and-tear items that need replacement. The most common reason for replacement is the rotor becoming too thin from normal use, or developing an uneven surface, often called 'warping'. This unevenness is actually caused by brake pad material transferring unevenly onto the rotor surface, creating high and low spots. This leads to the familiar symptoms of a shaky steering wheel or a pulsating brake pedal when you brake.
🎬 Watch this video to see how warped rotors cause vibrations.Symptoms of Bad Brake Rotors
- Vibration or Pulsating: You might feel a pulsing in the brake pedal or a vibration in the steering wheel when you apply the brakes, especially from higher speeds. This is the most common sign of warped or unevenly worn rotors.
- Grinding or Squealing Noises: A loud grinding sound means your brake pads are likely worn down completely, and now metal is grinding against metal. Squealing can also indicate worn pads or glazed rotors.
- Visible Grooves or Damage: If you look at the rotor surface and see deep grooves, scoring, or noticeable discoloration (like a blue tint), it's a clear sign they need to be replaced.
A Note on Recalls and Service Bulletins
While there are no specific recalls for the brake rotors on the 2004-2006 Scion xA, there was a Technical Service Bulletin (TSB) for some 2004 models. TSB BR007-04 addressed a squeaking noise when braking in reverse. This was fixed with redesigned brake pads and shims. There are several unrelated safety recalls for this vehicle, most notably for the airbag control module, which dealers will fix for free.
Choosing the Right Aftermarket Rotors for Your xA
For a daily-driven Scion xA, you don't need to break the bank on high-performance racing rotors. The original OEM rotors are good quality, but many aftermarket brands offer similar or better performance for less money. Aftermarket rotors come in different tiers, from basic economy to coated daily-driver options and performance-oriented drilled or slotted versions.
Brand Tiers for Your Scion xA

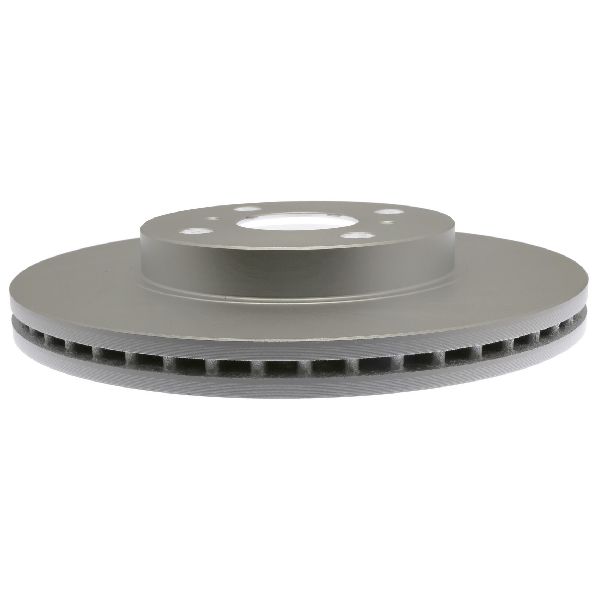

- Daily Driver (Recommended): Brands like Centric (Premium line), Raybestos (Advanced Technology), Bosch (QuietCast), and Wagner offer excellent quality for everyday use. Many of these rotors feature a protective coating (often black or grey) that prevents rust on the non-contact areas of the rotor, which is a great feature for longevity and appearance. 🎬 Check out this review of the top-rated brake rotor brands.

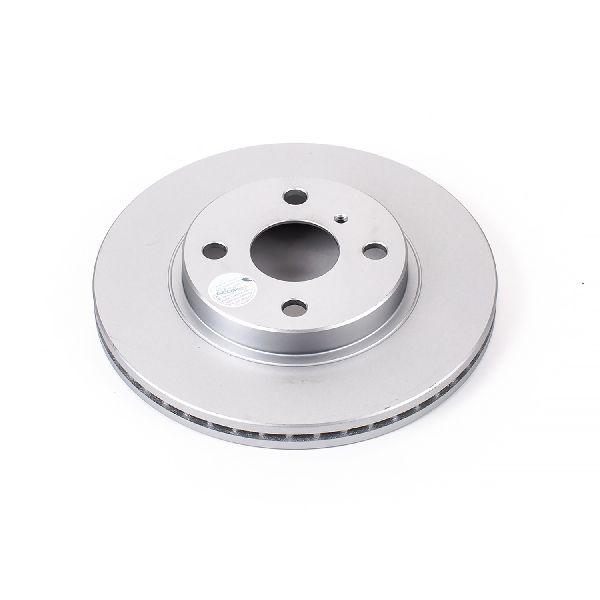

- Performance Upgrade: If you want improved initial bite or better cooling for spirited driving, brands like Brembo, EBC Brakes, Powerstop, and Hawk offer drilled and/or slotted rotors. These can help vent hot gases and water from the pad surface but are generally overkill for a standard xA.

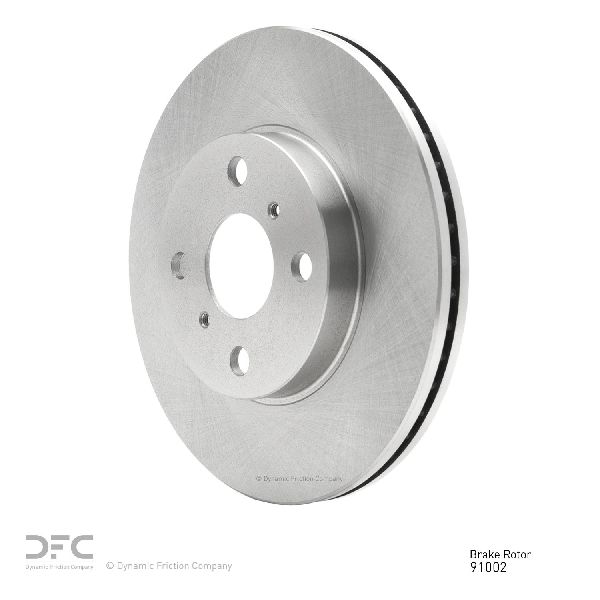

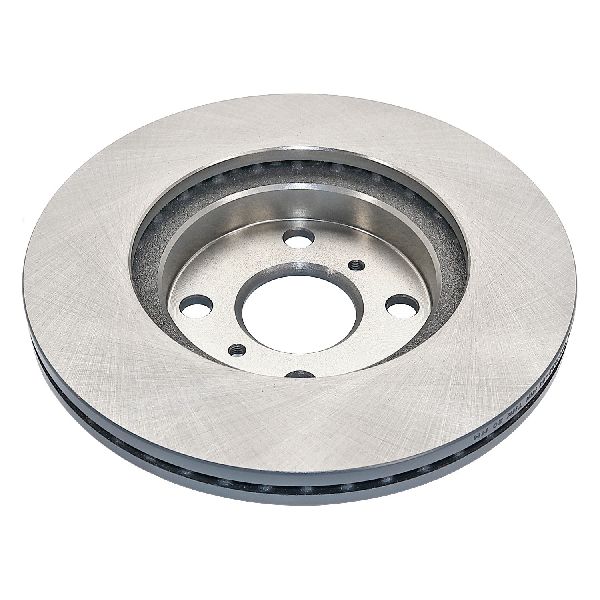

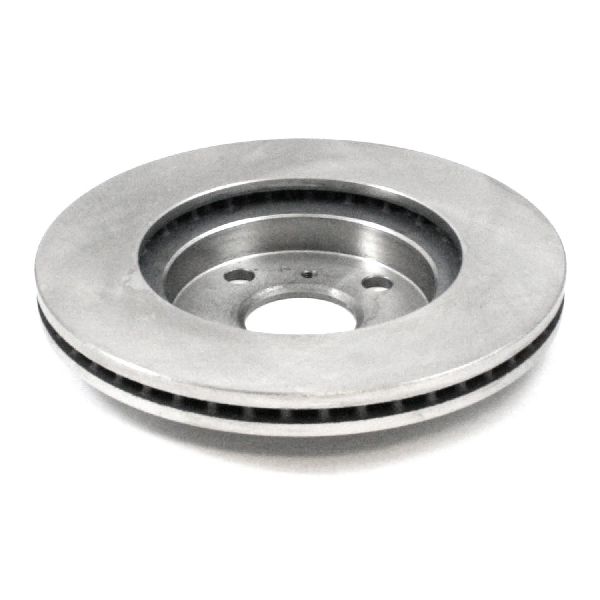

- Economy: Brands like Pronto and Dynamic Friction offer a budget-friendly option. While they meet basic safety standards, they may not have the same longevity or corrosion resistance as higher-tier coated rotors.
Pro Tip: Replace in Pairs
Always replace brake rotors in pairs (both front wheels or both rear wheels) to ensure even braking performance and prevent the car from pulling to one side. It is also highly recommended to install new brake pads at the same time as new rotors. This allows the new pads and rotors to bed-in together for optimal performance.
DIY vs. Professional Installation
Replacing the front brake rotors on a 2004-2006 Scion xA is a straightforward job for a DIYer with the right tools. The process involves jacking up the car, removing the wheel, unbolting the brake caliper and its mounting bracket, and then swapping the old rotor for the new one. The most common challenge is the old rotor being rusted onto the hub, which may require some force with a hammer or using bolts in the threaded holes on the rotor to push it off.
🎬 Follow this step-by-step guide to replace your front rotors.| Item | Estimated Cost |
|---|---|
| Aftermarket Front Rotor Set (2 Rotors) | $84 - $173 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement | $234 - $423+ |
Note: Costs are estimates and can vary by location and parts chosen. This table reflects the cost for front rotors only. The Scion xA has rear drum brakes, which have a different service procedure.
Frequently Asked Questions
Do I need to replace my rear brakes at the same time?
Not necessarily. The 2004-2006 Scion xA has disc brakes in the front and drum brakes in the rear. The front brakes do most of the work and typically wear out faster. You only need to service the rear drum brakes if they are showing signs of wear, such as noise or reduced parking brake effectiveness.
What are drilled and slotted rotors? Do I need them?
Drilled holes and slots on a rotor are designed to help dissipate heat and gases for better performance under extreme conditions, like racing. For a daily-driven Scion xA, they are not necessary and are mostly for appearance. Standard smooth (plain) rotors from a quality brand are more than sufficient.
What does 'bedding in' new brakes mean?
Bedding-in is the process of transferring a thin, even layer of friction material from the new brake pads to the new rotors. This is usually done by performing a series of controlled stops from moderate speeds. Following the manufacturer's bedding-in procedure is crucial for smooth, quiet, and effective braking performance.
Can I just 'resurface' my old rotors?
Resurfacing (or 'turning') means machining a thin layer off the rotor's surface to make it flat again. While this used to be common practice, modern rotors are thinner and less expensive. It is now often more cost-effective and safer to simply replace them, as resurfacing removes material and reduces the rotor's ability to handle heat.
Helpful Videos
Technical Specifications
OEM Part Numbers: 43512-52080
The 2004-2006 Scion xA uses 255mm (10.04 inch) vented front disc rotors with a 4-lug bolt pattern. The rear brakes are a drum-in-hat system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
