A Comprehensive Guide to the 2004-2008 Chrysler Pacifica 3.5L Engine Timing Belt and Water Pump Kit
Understanding this critical replacement can save you from catastrophic engine failure and thousands in repairs.
- Only the 3.5L V6 engine has a timing belt; the 3.8L V6 has a timing chain. Verify your engine before buying.
- This is an interference engine; a broken timing belt will cause catastrophic engine damage. Do not miss the 100,000-mile/7-year replacement interval.
- Always replace the complete kit: belt, hydraulic tensioner, idler pulleys, and water pump.
- For this critical part, choose a top-tier aftermarket brand like Gates or Continental for reliability that rivals OEM.
Is it a Timing Belt or a Timing Chain?
First, confirm your engine. The 2004-2008 Chrysler Pacifica was available with two main engines. The 3.5L V6 engine uses a timing belt, which requires periodic replacement. The 3.8L V6 engine uses a timing chain, which is designed to last the life of the engine and does not have a scheduled replacement interval. This guide is ONLY for the 3.5L V6 engine with a timing belt.
🎬 Watch this step-by-step timing belt and water pump replacement guide.OEM vs. Aftermarket Quality
For a critical job like the timing belt, quality is paramount. A failed belt on the Pacifica's 3.5L V6, which is an interference engine, will cause the pistons to hit the valves, leading to catastrophic and expensive engine damage. While OEM (Original Equipment Manufacturer) parts are a safe bet, high-quality aftermarket brands like Gates and Continental are widely trusted and often used by professional mechanics. These brands manufacture components for many carmakers and their kits meet or exceed OEM specifications. Budget-friendly brands can be a gamble; some forum users have reported premature failures with lower-tier parts, particularly with tensioners and water pumps. For this specific repair, investing in a top-tier aftermarket kit is a wise decision for long-term reliability.
Choosing the Right Aftermarket Kit
A complete timing belt kit is more than just the belt. It should include the hydraulic tensioner, idler pulley(s), and a new water pump with a gasket. Do not reuse the old tensioner or pulleys, as their bearings wear out and can fail before the next service interval, taking the new belt with them.
Aftermarket Brand Tiers for Chrysler Pacifica
| Tier | Brands | General Assessment |
|---|---|---|

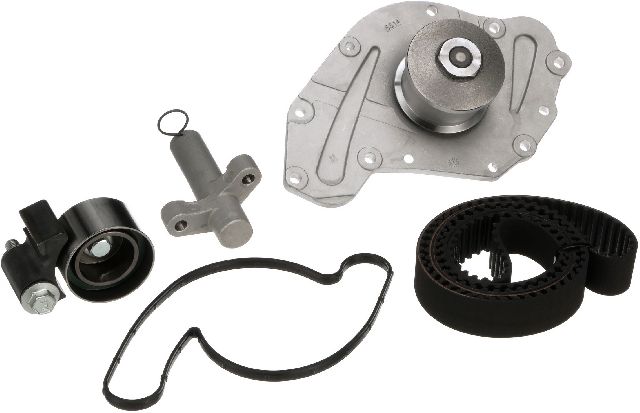

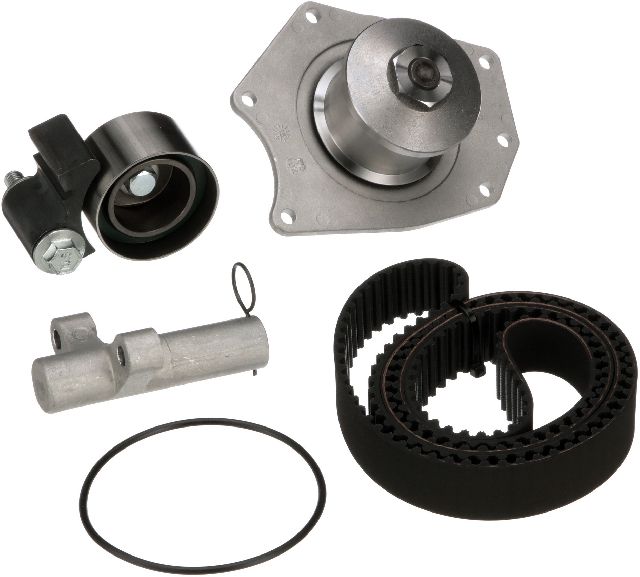

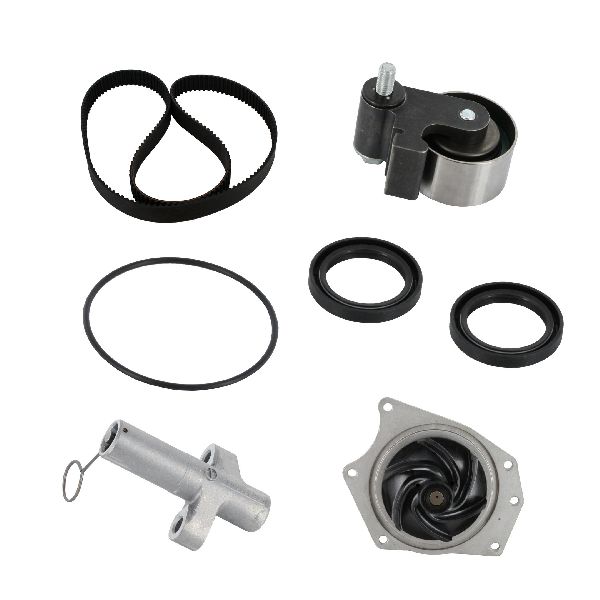

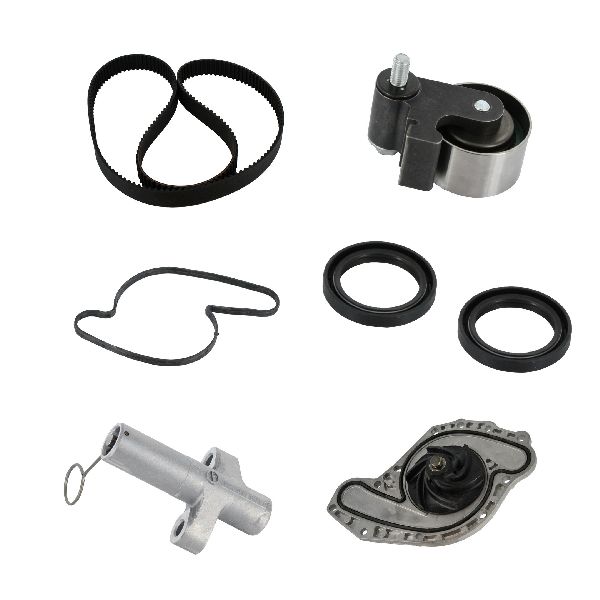

| Top Tier (Recommended) | Gates, Continental | Considered OE-quality or better. Widely trusted for reliability and durability. These kits typically contain all necessary high-quality components for a complete job. |

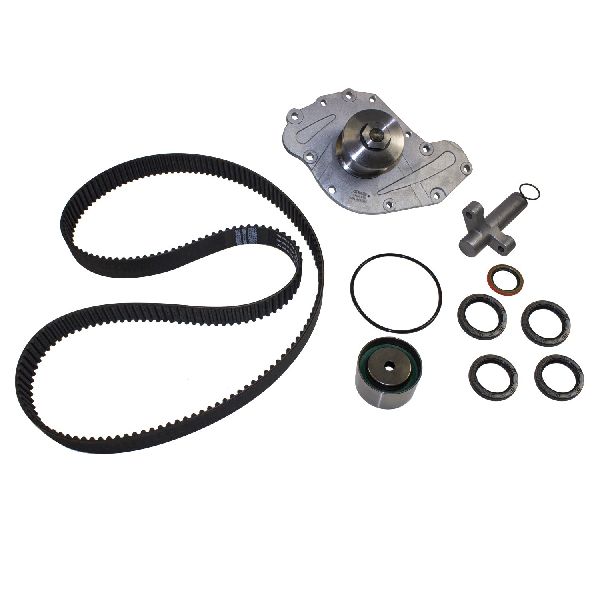

| Mid-Grade | GMB | GMB is a large manufacturer and an OE supplier for some car companies. However, owner experiences are mixed, with some reporting premature failures on Chrysler vehicles. Use with caution; may be a viable budget option if components are inspected carefully. |

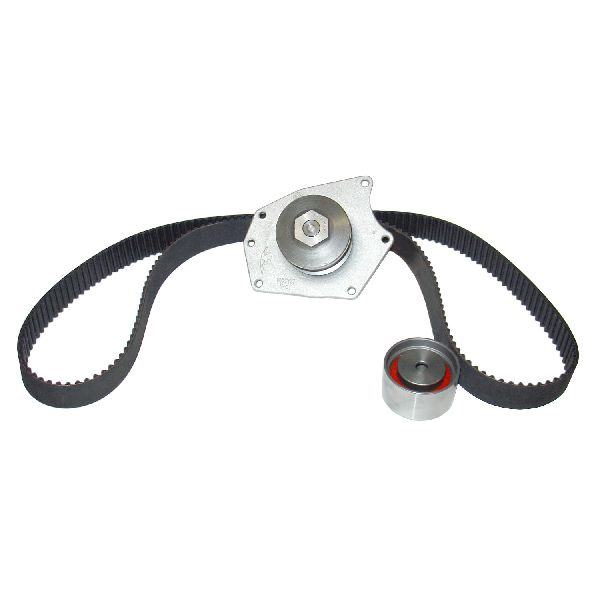

| Economy Tier | Airtex, US Motor Works | These brands are often priced lower, but forum discussions reveal more frequent complaints about quality control, such as casting issues, incorrect gaskets, and early failures. Given the critical nature of the timing belt system, these brands represent a higher risk. |
Known Issues, Recalls, and TSBs
No recalls or Technical Service Bulletins (TSBs) from Chrysler or the NHTSA were found specifically for premature failure of the timing belt or water pump on the 2004-2008 Chrysler Pacifica. The primary issues reported by owners are related to normal wear and the severe consequences of not replacing the belt at the recommended interval. Some owners have reported rough running or engine codes after a timing belt replacement, which is almost always due to incorrect installation and timing alignment.
Pro Tip: The Hydraulic Tensioner is Key
The hydraulic tensioner is a common failure point. It maintains the correct tension on the belt. A weak or failed tensioner will cause a rattling or ticking noise and can allow the belt to skip teeth or fail entirely. 🎬 See a breakdown of common bad timing belt symptoms. Always replace it with the belt, and make sure the pin is pulled after installation to activate it.
Frequently Asked Questions (FAQ)
What is the timing belt replacement interval for the 2004-2008 Pacifica 3.5L?
The recommended replacement interval for the Chrysler 3.5L engine is typically every 100,000 miles or 7 years, whichever comes first. However, if the vehicle is operated in extreme temperatures (hot or cold), the interval may be shorter. Do not delay this service.
Why must I replace the water pump with the timing belt?
The water pump is located behind the timing belt cover and is driven by the timing belt. The labor required to access the timing belt is extensive. Since the water pump has a similar service life to the belt, replacing it at the same time is a cost-effective, preventative measure. A failed water pump bearing can seize, destroying the new timing belt and causing engine damage.
🎬 Learn how to identify the signs of a failing water pump.What happens if my Pacifica's timing belt breaks?
The 3.5L V6 is an interference engine. This means that if the timing belt breaks, the pistons will slam into the open valves, causing severe and often irreparable engine damage. The cost of repair will be many times more than the cost of a timely replacement.
Can I do this replacement myself?
This is an advanced-level repair. It requires specialized tools (like a harmonic balancer puller), a significant amount of time (6-8 hours for a professional), and precision. Mistakes in setting the timing can destroy the engine upon startup. For most owners, this job is best left to an experienced professional mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: TCKWP295B
Belt Tooth Count: 201
