A Guide to the 2004-2009 GMC Envoy Secondary Air Injection Pump
Fixing a P0410 code or a loud whining noise on startup? This guide covers what you need to know about your Envoy's air pump.
- The most common failure code is P0410.
- Pump failure is almost always caused by water getting inside from a bad check valve.
- You MUST replace the check valve and relay when you replace the pump to prevent the new one from failing.
- The vehicle is safe to drive with a bad pump, but it will not pass an emissions test.
Understanding the Secondary Air Injection System
If you own a 2004-2009 GMC Envoy, you might eventually face an issue with the secondary air injection (AIR) system. This is a common problem, but it's usually straightforward to fix. The system has three main parts: the air pump itself, a relay to turn it on and off, and a check valve to control airflow. When one of these parts fails, it almost always triggers the Check Engine Light.
Common Symptoms of a Failing Air Pump
A bad air pump usually gives you a few clear warning signs. Here’s what to look for:
- Check Engine Light: This is the most common symptom. The light will come on with code P0410, which points to a general fault in the AIR system. 🎬 Watch: How to diagnose and fix the P0410 code
- Loud Whining or "Vacuum Cleaner" Noise: A failing pump often makes a loud howling or whining sound for about a minute after you start the engine cold. A healthy pump makes a noticeable but much quieter sound. If the noise gets louder over time, the pump's internal bearings are likely failing.
- Pump Stays On: In some cases, the pump's relay can get stuck, causing the pump to run continuously, even when the engine is off. This will drain your battery.
- Failed Emissions Test: Because the AIR system is an emissions device, a P0410 code will cause an automatic failure of most state emissions inspections.
The Real Cause of Failure: Water Intrusion
The number one killer of AIR pumps on the GMC Envoy is water damage. This happens when the one-way check valve fails. This valve is supposed to prevent hot exhaust gas and moisture from flowing back into the pump. When it sticks open, condensation from the exhaust system gets into the pump, rusting the bearings and destroying the electric motor. If you find water in your old pump, you MUST replace the check valve along with the pump, or the new pump will fail very quickly. 🎬 See this step-by-step guide to replacing the check valve

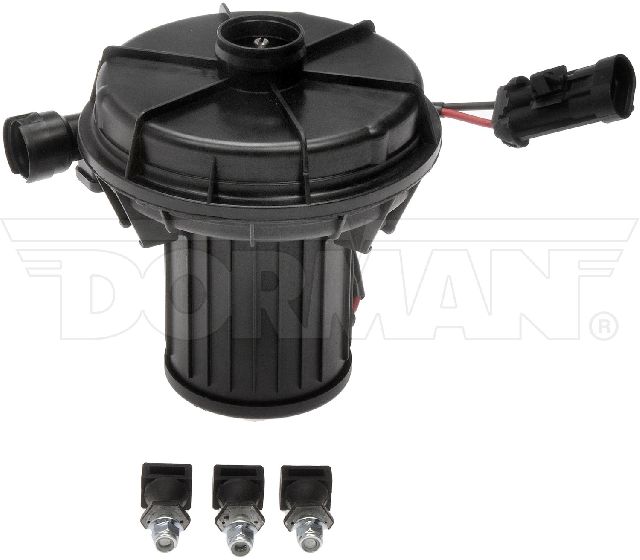

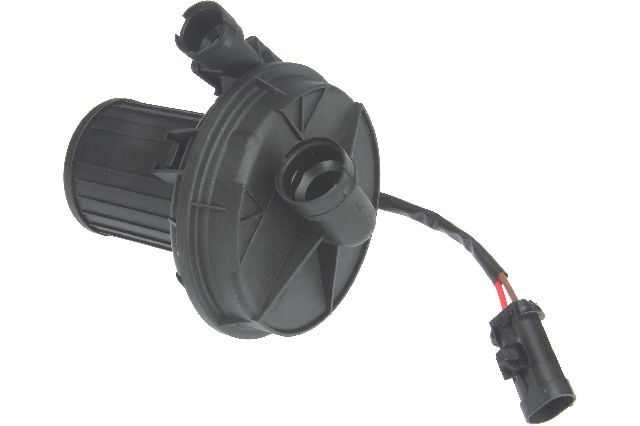

Choosing the Right Aftermarket Pump
Since the original ACDelco pump is prone to failure from the faulty check valve design, a quality aftermarket part is a very sensible choice. Here is a breakdown of common brands:
- Dorman: A well-known aftermarket brand that often re-engineers parts to fix original flaws. Their kits may include improvements to prevent common failures.
- Standard Motor Products (SMP): Generally considered a high-quality aftermarket brand that produces parts meeting or exceeding OEM standards. They are a trusted choice for many professional technicians.
- Cardone: Offers both new and remanufactured pumps. They are a budget-friendly option, and their remanufacturing process focuses on replacing common wear items like bearings and vanes.
- URO Parts: Often a lower-cost alternative, suitable for budget-conscious repairs.
Pro Tip: Regardless of the brand you choose, it is highly recommended to also replace the AIR system relay and the check valve at the same time as the pump. This addresses all common failure points at once and prevents a repeat failure of your new pump.
Cost to Replace a GMC Envoy Air Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $137 - $314 |
| New OEM (ACDelco) Pump | $513 - $761 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement (Aftermarket) | $222 - $439 |
| Total Professional Replacement (OEM) | $598 - $886 |
Frequently Asked Questions
Can I still drive my Envoy with a bad air pump?
Yes, in most cases, it is safe to drive. A bad air pump will not cause further engine damage, but the Check Engine Light will remain on, and you will not pass an emissions test. The only exception is if the pump's relay is stuck on, which will drain the battery.
Where is the air pump located?
On the 2004-2009 GMC Envoy, the secondary air injection pump is located on the driver's side frame rail, below the engine and near the front of the vehicle. The relay is typically mounted right next to it.
🎬 Watch: Locating and testing the air pump relayWhat is the difference between the pump and the check valve?
The pump is an electric motor that creates the airflow. The check valve is a one-way door that lets air into the exhaust but stops exhaust gas and moisture from coming back into the pump. The check valve is located on the side of the engine, connected to the pump by a large hose.
Is this a difficult part to replace myself?
For a DIY mechanic with basic tools, this is a relatively easy replacement. The pump is held on by a few bolts and has one electrical connector and two hoses. Access is from underneath the vehicle. The most important step is to also replace the check valve to prevent future failures.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12574379 215-454
Electric pump, typically with a plastic housing and two hose connectors (one inlet, one outlet). Operates on the vehicle's 12V system via a relay. System is designated by RPO code K18 on the service parts sticker, usually in the glove box.
