A Mechanic's Guide to 2004-2010 Toyota RAV4 Disc Brake Hardware Kits
Fix brake noise and uneven wear by replacing these small but critical parts during your next brake job.
- Always replace your disc brake hardware kit when changing brake pads to prevent noise and ensure even wear.
- Verify the correct part for your RAV4's year, as 2004-2005 and 2006-2010 models use different hardware.
- For a few dollars more, aftermarket kits with anti-rust coatings (from brands like Raybestos or DFC) offer superior longevity.
- Worn hardware is a primary cause of brake squeal and rattling noises.
Is Your RAV4 Making Brake Noises? It Might Be The Hardware.
If you're hearing a persistent squealing, grinding, or rattling from your wheels when you brake, your first thought is probably worn-out brake pads. While that's often the case, the small metal clips and springs that hold those pads in place are a common and frequently overlooked cause of brake problems on the 2004-2010 Toyota RAV4. These parts rust and lose their tension over time. This can cause brake pads to vibrate, drag, or wear unevenly. Replacing the hardware is a cheap and easy step that ensures your brake job lasts 🎬 Watch: Step-by-step guide to replacing front brakes and hardware and performs as it should.
Pro Tip: Always replace your disc brake hardware every time you replace your brake pads. It's a low-cost part that prevents comebacks and ensures quiet, smooth braking. Most quality pad sets include new hardware.
Symptoms of Failing Brake Hardware
- Brake Noise: A high-pitched squeal, scraping, or rattling sound 🎬 Watch: How to diagnose and fix common brake grinding noises is the most common symptom. This is caused by pads vibrating because the clips are no longer holding them securely.
- Uneven Pad Wear: If hardware is rusted or bent, it can cause a pad to stick. This leads to one pad wearing out much faster than the other, or the inner pad wearing faster than the outer one.
- Brake Drag or Pulling: Seized caliper slide pins, whose rubber boots are often included in comprehensive hardware kits, can cause a caliper to not release properly. This results in a brake that constantly drags, causing heat, a burning smell, and the vehicle to pull to one side.
Choosing the Right Aftermarket Kit for Your RAV4
For a simple part like a hardware kit, you don't need to buy from the dealer. Quality aftermarket brands offer parts that meet or exceed original equipment (OE) quality, often with better features like rust-resistant coatings. Forum users and mechanics report good experiences with reputable aftermarket brands.
Important: The 2004-2010 RAV4 model years span two different vehicle generations. The 2004-2005 (XA20 platform) and 2006-2010 (XA30 platform) models use different brake components. 🎬 See this walkthrough for 2003-2005 rear disc brake replacement Always verify the kit fits your specific year before purchasing.
Brand Quality Tiers
Here’s a breakdown of the available brands based on quality and features:
- Premium (Coated for Longevity): Brands like Raybestos (Element3/Professional Grade) and Dynamic Friction Company (DFC) often feature zinc or phosphate coatings. These coatings provide excellent rust and corrosion resistance, which is a major plus for vehicles in wet or snowy climates. They ensure the hardware lasts the life of the brake pads and continues to allow smooth movement.
- Standard (OEM-Equivalent): Centric and Carlson are well-regarded brands that provide reliable, standard-replacement hardware that fits and functions like the original parts. Many professional shops use these brands for daily repairs. Some Wagner QuickStop pad sets also come with quality stainless-steel hardware.
- Economy: Dorman offers a budget-friendly option. While often perfectly suitable, quality can sometimes be inconsistent compared to premium lines. They are a reliable choice if cost is the primary concern.
| Brand Tier | Common Brands | Typical Price Range (Per Axle) | Key Feature |
|---|---|---|---|
| Premium | Raybestos, Dynamic Friction | $15 - $50 | Coated for rust prevention |
| Standard | Centric, Carlson | $8 - $25 | OEM-equivalent fit and function |
| Economy | Dorman, Store Brands | $8 - $15 | Most budget-friendly |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with every brake job?
Yes. The old clips have been through thousands of heat cycles, which causes the metal to lose its spring tension. They are also exposed to road salt and moisture, leading to rust. Reusing old hardware is a common cause of noise and premature pad wear on a new brake job. For a few dollars, a new kit is cheap insurance.
Will new hardware fix my squeaky brakes?
It often does, especially if the noise is a rattle or high-pitched squeal caused by vibration. However, squeaking can also be caused by the brake pad material itself, lack of proper lubrication on contact points, or warped rotors. A full brake service including new pads, hardware, and rotor resurfacing/replacement is the best approach.
What's the difference between front and rear hardware kits?
Front and rear brake systems are different sizes and designs, so they require specific hardware kits. The rear brakes on the 2006-2010 RAV4 also incorporate the parking brake mechanism inside the rotor (drum-in-hat), which has its own separate set of hardware (shoes, springs, and adjusters) that is different from the disc brake hardware. Be sure to order the correct kit for the axle you are working on.
Are coated hardware kits worth the extra cost?
Yes, especially if you live in an area with snow, ice, or heavy rain. The coating prevents rust from seizing the pads in the caliper bracket, ensuring they move freely throughout their service life. This helps prevent noise and uneven wear, making them a worthwhile investment for a few extra dollars.

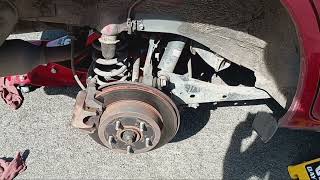

Helpful Videos
Technical Specifications
OEM Part Numbers: 04947-42050 04947-0R010 04947-42040

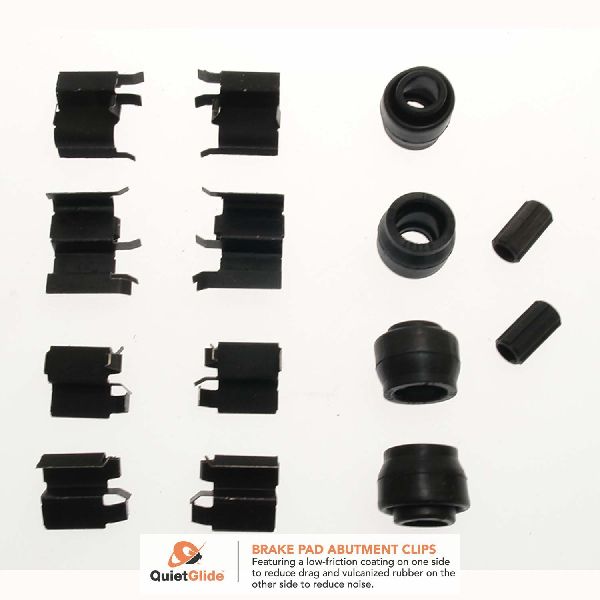

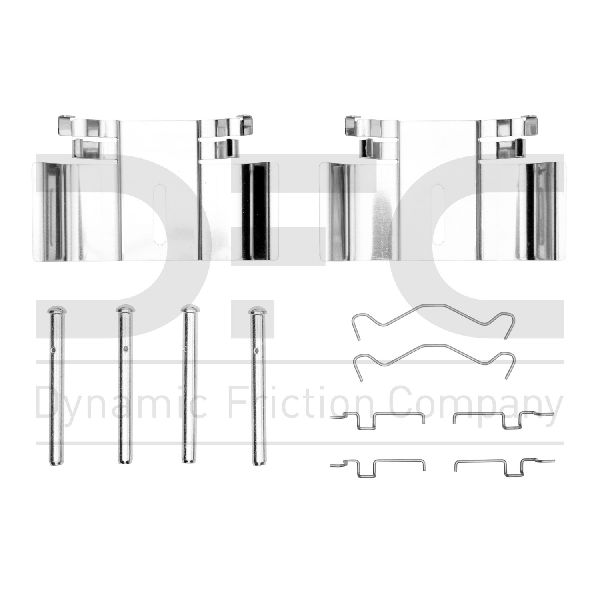

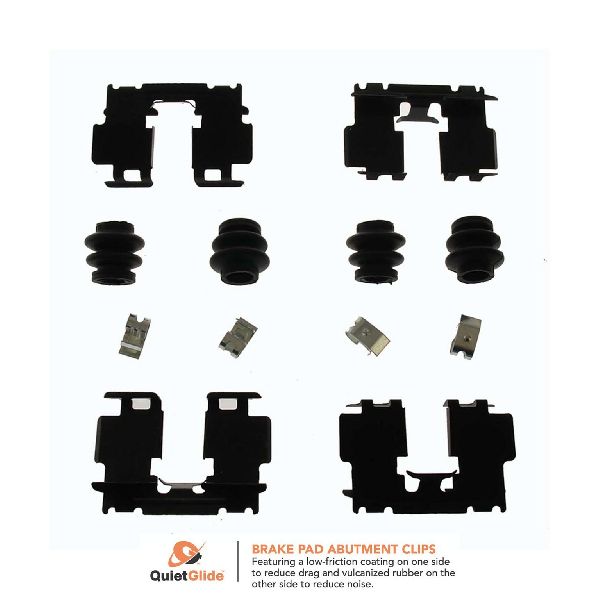

Kit typically includes abutment clips (pad sliders) and anti-rattle springs. Materials are usually stainless steel or plated steel. Premium kits may feature zinc, phosphate, or other anti-corrosion coatings. Some comprehensive kits may also include caliper guide pin boots.
