Lamborghini Gallardo 2004-2014 Ignition Coil Guide & Information
Keep your V10 engine firing on all cylinders with the right aftermarket ignition coils.
- Ignition coil failure is common due to engine heat; it's wise to replace all 10 coils at once.
- You can save significantly by using an OEM-equivalent brand like Bosch instead of a Lamborghini-branded part, as they are often the same VAG component.
- The job is DIY-friendly for most owners with basic tools, taking around 1.5 hours.
- For 2011-2014 models, ensure NHTSA recall 18V-833 has been completed to fix a software issue that could hide misfire codes.
Understanding Ignition Coil Failure in Your Gallardo
Ignition coil failure is a known issue for Lamborghini Gallardo owners. The primary cause is the immense heat generated by the V10 engine in a tight engine bay, which degrades the coil's internal components and plastic housing over time. Moisture getting into the engine bay can also short out the coils. Because the Gallardo shares its V10 engine architecture with the Audi R8, many of the same parts and problems apply. In fact, the original Lamborghini coils are often the same as those used in various Volkswagen and Audi vehicles, just with a different price tag. When one coil fails, it's a strong sign that the others are nearing the end of their life, as they have all been exposed to the same conditions for the same amount of time.
Symptoms of a Bad Ignition Coil
- Check Engine Light: This is the most common sign. The light may be steady or flashing. 🎬 Watch: Understanding Gallardo check engine codes and warning lights. A flashing light indicates a severe misfire that can damage your expensive catalytic converters.
- Engine Misfire: The engine will feel rough, shake, or hesitate, especially at idle or under acceleration.
- Loss of Power: With one or more cylinders not firing, your Gallardo will feel noticeably sluggish.
- Worse Fuel Economy: The engine will run inefficiently, causing you to use more fuel.
- Difficulty Starting: If several coils are weak or have failed, the engine may crank but struggle to start.
Choosing the Right Aftermarket Ignition Coil
When replacing ignition coils on your Gallardo, you don't have to buy the expensive OEM Lamborghini part. Since the Gallardo uses common VAG (Volkswagen Auto Group) parts, high-quality aftermarket options can provide the same performance for a fraction of the cost. It is highly recommended to replace all 10 coils at the same time.
Brand Quality Tiers
- Tier 1 (OEM Equivalent): Bosch is widely recognized as an Original Equipment (OE) manufacturer for many German vehicles, including those in the VAG family. Choosing Bosch coils is the closest you can get to the factory part without the Lamborghini price. They are known for high-quality materials, durability, and reliable performance.
- Tier 2 (Reputable Aftermarket): Brands like Standard Ignition (SMP) and Spectra offer a good balance of quality and price. They are established companies that produce parts meeting or exceeding OE specifications.
- Tier 3 (Value-Oriented): Brands like Holstein and True Tech fall into the value category. While they are manufactured to be direct-fit replacements, long-term durability might not match that of OEM-equivalent brands. They can be a viable option for budget-conscious repairs.
Pro Tip: Many owners use the red-topped ignition coils popularly associated with the Audi R8. While these are often a direct fit and a good replacement, the color itself doesn't guarantee performance. Focus on the brand's reputation (like Bosch) and the part number, not just the color. The OEM part number 07K905715G (or its revisions) is a common cross-reference for these coils.
Known Issues, Recalls, and TSBs
There are no direct recalls for the ignition coils themselves. However, there is a critical recall for 2011-2014 Gallardo models (NHTSA Recall No. 18V-833). The Engine Control Unit (ECU) software had a bug that could erase trouble codes when the car was turned off. This means a misfire could occur, but the check engine light wouldn't stay on, hiding the problem. It is crucial to ensure this recall has been performed by a dealer, as it involves a simple software re-flash.
| Part Type | Estimated Cost (Parts Only) |
|---|---|
| New OEM (Lamborghini Branded) | $700 - $1000+ |
| New Aftermarket (Bosch, etc.) | $320 - $500 |
| Shop Labor | $200 - $400 |
Frequently Asked Questions (FAQ)
How do I know which ignition coil is bad?
The easiest method is to use an OBD-II scanner to read the trouble code, which will point to a specific cylinder (e.g., P0305 for cylinder 5). To confirm, you can perform a "swap test": move the suspected bad coil to another cylinder, clear the codes, and see if the misfire code follows the coil to the new cylinder.
🎬 See a real-world diagnosis of a misfiring Gallardo engine.Is it okay to replace only the one bad coil?
While you can, it is strongly recommended to replace all 10 coils at once. Ignition coils wear out from heat and age, so if one has failed, the others are likely to fail soon. Replacing them all at once saves you from repeated repairs.
Is replacing Gallardo ignition coils a DIY job?
Yes, for a mechanically inclined owner, this is a very manageable DIY job. It requires basic hand tools, and access is relatively straightforward after removing some engine bay covers. On some models, the coolant expansion tank may need to be unbolted and shifted, and a chassis brace may need to be removed on the driver's side, but these are simple steps.
🎬 Watch this step-by-step guide to replacing your coils and plugs.Do I need a special tool to remove the coils?
A special puller tool exists, but it is not necessary. Most people can remove the coils by hand by wiggling and pulling them straight up. Be patient, as the rubber boot can create a suction effect.
Helpful Videos
Technical Specifications

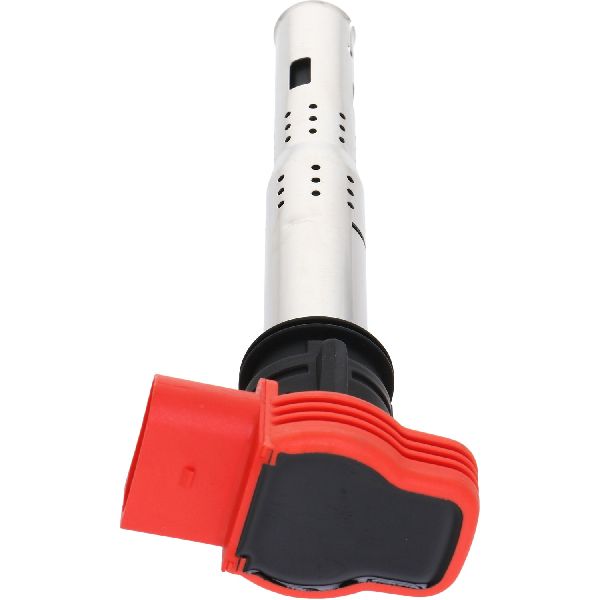

OEM Part Numbers: 07K905715G 07K905715F 06E905115E 400905619
Coil-on-plug, pencil style. Requires a set of 10 for the V10 engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
