Toyota Sienna Window Motor Guide for 2004-2014 Models
Is your Toyota Sienna's window slow, noisy, or completely stuck? This guide will help you understand the problem and find the right replacement motor.
- Always check fuses and the window switch before assuming the motor is bad.
- For high-mileage Siennas, replacing the motor and regulator assembly together is the most reliable repair.
- Aftermarket brands like Dorman and Cardone are cost-effective and widely used alternatives to OEM parts.
- After installation, you must perform a reset procedure for the window to function correctly.
Is Your Sienna's Window Acting Up?
A failing window motor in a 2004-2014 Toyota Sienna can be frustrating. Usually, the motor doesn't just stop working overnight. It often gives you warning signs that it's about to fail.
Common Failure Symptoms
- Slow Movement: The window struggles to go up or down, and seems much slower than it used to be. This is often more noticeable when trying to close the window.
- Stops Mid-Travel: The window will move a little and then stop, requiring you to press the button multiple times to get it fully open or closed.
- Clicking or Grinding Noises: Strange sounds from inside the door panel when you use the window switch often point to a problem with the motor or the attached regulator. 🎬 Watch a demonstration of common bad window regulator symptoms.
- Window Won't Stay Up: The window may slowly slide down into the door on its own after you've closed it.
- Complete Failure: The window doesn't move at all when you press the switch, but you might still hear a faint click from the door.
Before You Buy a New Motor
Always check the simple things first. A single inoperative window could be caused by a bad switch or a blown fuse. If all windows stop working from the master switch on the driver's door, the problem might be the switch itself or an electrical issue, not the individual motors. On some Sienna models, the window system may need to be reset after a battery replacement; this can often be done without tools.
🎬 See how to fix a stuck window without replacing parts.Known Issues, Recalls, and Bulletins
While there are no widespread recalls specifically for the window motors on the 2004-2014 Sienna, Toyota did issue recalls and Technical Service Bulletins (TSBs) for the master power window switch on some model years due to a fire risk from overheating. Another TSB for the 2010-2020 Sienna notes that a loose rubber glass run channel can cause the window to bind, which can seem like a motor problem. It's worth checking that the rubber channels your window slides in are clean and in good condition.
Choosing the Right Aftermarket Motor
For the 2004-2014 Toyota Sienna, the original equipment (OEM) window motors are generally reliable, but can be expensive to replace. Aftermarket brands like Dorman and Cardone offer a more affordable alternative. Many repair shops and DIYers use these brands with good results.

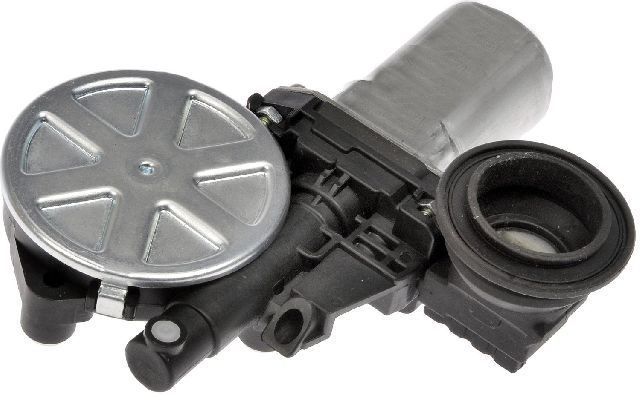

- Dorman: A popular aftermarket brand that often engineers parts to match the original's fit and function. They are widely available and typically come with a good warranty. For the Sienna, Dorman offers both the motor by itself and a complete motor and regulator assembly.
- Cardone: Another major brand that offers new and remanufactured parts. A new Cardone motor is a cost-effective choice that meets original specifications.
Pro Tip: Often, the window motor and the window regulator (the track and cable assembly) are sold together. If your Sienna has high mileage, it's a good idea to replace them as a single unit. The labor to get into the door is the same, and this prevents you from having to do the job again if the old regulator fails soon after you replace the motor.
Cost Comparison for Toyota Sienna Window Motor Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Motor Only | $95 - $190 |
| New Aftermarket Motor & Regulator Assembly | $75 - $250 |
| New OEM Motor/Regulator Assembly | $203 - $253+ |
| Shop Labor | $95 - $229 |
| Total Professional Replacement (Aftermarket) | $217 - $482 |
Frequently Asked Questions
Do I have to replace the whole regulator assembly?
No, you can often buy just the motor. However, the plastic parts and cables on the original regulator can become brittle and fail over time. Replacing the entire assembly is often recommended to ensure a long-lasting repair, since the labor is the most time-consuming part of the job.
Is the front motor the same as the rear sliding door motor?
No, they are different parts. The front door motors are specific to the driver's and passenger's side. The motors for the windows in the sliding doors are also unique parts. Always confirm the exact position (e.g., Front Driver Side) when ordering.
Can I replace the window motor myself?
Yes, this is a manageable DIY project for someone with basic mechanical skills. It involves removing the interior door panel, carefully unplugging electrical connectors, and unbolting the old motor/regulator. You will need tools like a trim removal tool, a 10mm socket, and a Torx bit screwdriver (T25).
My new motor isn't working correctly. What's wrong?
After installation, many power window systems, including Toyota's, need to be initialized or reset. This usually involves running the window all the way up and down and holding the switch for a few seconds in each direction. This procedure teaches the motor the window's upper and lower limits.
🎬 Follow this guide to reset the window jam protection function.Helpful Videos

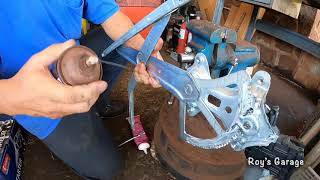

Technical Specifications
OEM Part Numbers: 85720-08040 85710-08040 85720-AE010 85710-AE010 85710-08020
The motor is typically held to the regulator by three Torx screws (size T25 or T30). The regulator assembly is held to the door with several 10mm bolts. Ensure the replacement part matches the correct door position (e.g., Front Left for driver's side).
