Your 2005-2009 Ford Mustang Headlight Switch: A Complete Guide
Having trouble with your Mustang's headlights? Here's what you need to know about fixing the switch.
- Failure is common and symptoms include flickering lights, inoperative headlights or dash lights, and fog light issues.
- Replacement is an easy DIY job that takes less than 15 minutes with a simple trim tool.
- Inspect the wiring connector for melting when replacing the switch, as overheating is a known issue.
- Motorcraft is the OEM part, while brands like Standard Ignition offer a high-quality aftermarket alternative.
Is Your Mustang's Headlight Switch Failing?
If your 2005-2009 Mustang's lights are acting strange, the headlight switch is a likely suspect. These switches can wear out over time, causing problems that range from minor annoyances to serious safety issues. Because the switch also controls the fog lights on some models, it can be prone to overheating and internal contact failure, a common complaint among owners.
Common Symptoms of a Bad Switch
- Headlights won't turn on or off: The most obvious sign is a total failure to operate the headlights. You might also find the lights get stuck in the 'on' position, even with the switch turned off.
- Flickering lights: Headlights or dash lights that flicker intermittently often point to a bad switch.
- Issues with fog lights: The fog light function may stop working, or the fog lights might turn on by themselves.
- Dash lights or dimmer not working: If you can't adjust your instrument panel's brightness or the lights don't come on at all, the switch's internal dimmer has likely failed.
- Only some light settings work: You might find that your parking lights work, but the main headlights don't, or vice-versa.
A Note on Overheating
Some owners have reported the switch and its wiring connector melting due to overheating. This is often caused by the electrical load from the fog lights running through the main switch. When you replace the switch, inspect the wiring harness connector for any signs of melting or discoloration. A damaged connector should be replaced to prevent a repeat failure.
🎬 Watch: Troubleshooting common Ford electrical and wiring harness issuesChoosing the Right Aftermarket Headlight Switch
When your original switch fails, you have a few options. While you can go to a dealer for a factory part, high-quality aftermarket switches offer a reliable and more affordable solution.
Brand Tiers for Your Mustang
- OEM (Motorcraft): Motorcraft is Ford's own brand, so a Motorcraft switch (part numbers like SW-6581 or 7R3Z-11654-BA) is a direct replacement for the original. It guarantees a perfect fit and original function. This is the benchmark for quality.
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP) is a well-respected aftermarket brand that often produces parts that meet or exceed OEM quality. An SMP switch is a strong choice if you want OEM-level performance without the dealer price tag.
- Standard Aftermarket (Rostra): Rostra is another established brand in the aftermarket. While generally considered reliable, always ensure you are buying from a reputable source to get a quality part.
Pro Tip: Many base model V6 Mustangs did not come with factory fog lights. Upgrading to a switch with the fog light function is a popular modification when adding aftermarket fog lights for a clean, factory look.
Cost of Replacing a Mustang Headlight Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $115 - $160 |
| New Aftermarket | $95.59 - $143.65 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Is this a difficult part to replace myself?
No, this is a very easy DIY repair. The switch assembly is held in by clips and can be gently pried out of the dashboard. No special tools are needed beyond a plastic trim removal tool to avoid scratching your dash. The entire job can be done in about 10-15 minutes.
Do I need to disconnect the battery?
While it is not strictly required for a simple swap like this, it is always a good safety practice to disconnect the negative battery terminal when working on any part of your vehicle's electrical system.
My new switch looks the same but doesn't have the fog light button. Why?
Ford produced switches both with and without the fog light function. Base model Mustangs without fog lights used a switch without the pull-out button. Be sure to order the correct switch for your car's trim level or the one that matches the features you want.
Can a bad headlight switch drain my car's battery?
Yes. If the switch fails in a way that keeps the headlights or another circuit permanently on, it will drain your battery. This is a common symptom of a failing switch.
Helpful Videos
Technical Specifications

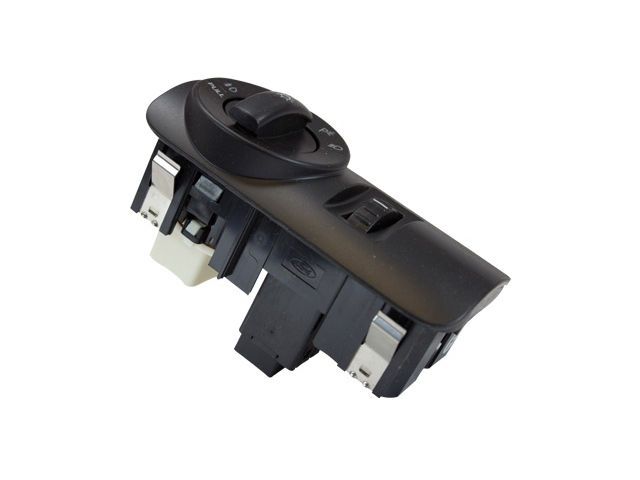

OEM Part Numbers: 7R3Z-11654-BA 6R3Z-11654-BAA 4R3Z-11654-BAA SW-6581
Dash-mounted rotary and pull switch. Controls headlights, parking lights, fog lights (if equipped), and instrument panel dimmer.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
