A Home Mechanic's Guide to the 2005-2009 Saab 9-7x Secondary Air Injection Pump
Fix your Check Engine Light and that loud noise on cold starts by understanding and replacing your air pump.
- A bad air pump will cause a P0410 code and prevent you from passing an emissions test.
- Water intrusion from a failed check valve is the most common cause of pump failure; always inspect or replace the check valve with the pump.
- Aftermarket pumps from brands like Dorman and Cardone are reliable and affordable alternatives to expensive OEM parts.
- This is a DIY-friendly repair that most owners can complete in under two hours with basic tools.
Is Your Saab 9-7x Air Pump Failing?
A bad secondary air injection pump on your 9-7x will almost always turn on the Check Engine Light. You might also hear a very loud noise, like a vacuum cleaner, coming from the driver's side of the engine bay for about a minute after a cold start. As the pump fails, this noise can get louder or stop completely if the pump motor burns out.
Why Did My Air Pump Fail?
The number one reason these pumps fail on the Saab 9-7x and its GM siblings (like the Chevy Trailblazer) is water damage. A small, one-way part called a check valve is supposed to stop exhaust from flowing back into the pump. When this valve fails, hot, moist exhaust gas gets into the pump and its hoses. This moisture corrodes the pump's motor from the inside, causing it to seize up and fail. Another common issue is a failed relay, which can cause the pump to run all the time and burn out.
Choosing the Right Aftermarket Air Pump
Since the Saab 9-7x is based on a common GM platform, aftermarket parts are widely available and are a cost-effective choice. OEM parts can be expensive and hard to find. For a part like an air pump, a quality aftermarket unit offers reliable performance without the high dealer price tag.
Aftermarket Brand Tiers

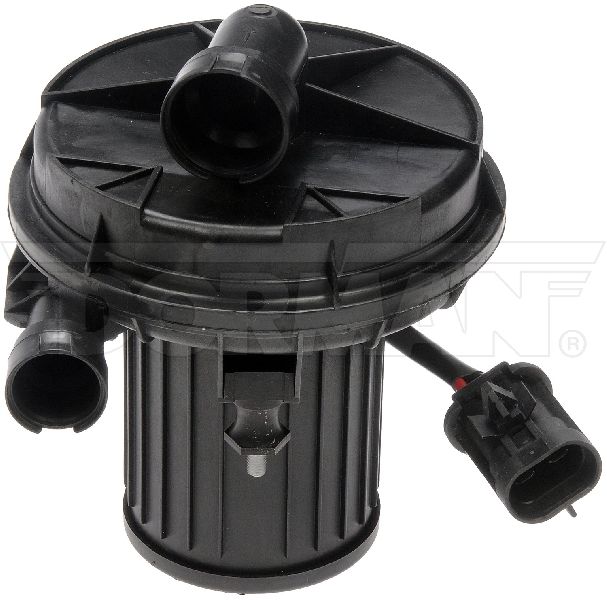

- Dorman: Dorman is a well-known brand that offers direct-fit replacement parts. They often provide all the necessary hardware for a complete repair and are a popular choice for DIY mechanics.
- Cardone: Cardone offers both new and remanufactured air pumps. Their remanufactured units are a good budget-friendly option that is tested to meet original specifications.

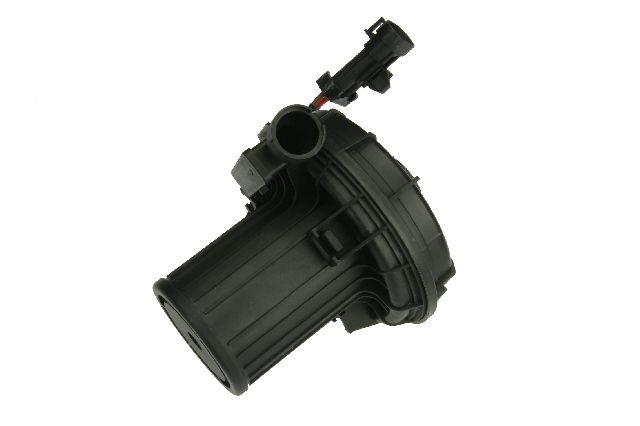

- URO Parts: URO Parts is typically a budget-oriented brand. It can be a viable option if cost is the primary concern, but may not have the same reputation for longevity as other brands.
Cost of Replacing a Saab 9-7x Air Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $137 - $280 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $237 - $480 |
Costs are estimates and may vary based on your location and the specific parts you choose.
Frequently Asked Questions
What is the main error code for a bad air pump?
The most common trouble code is P0410, which means "Secondary Air Injection System Malfunction." This code tells you there is a problem somewhere in the system, with the pump itself being the most common failure point.
Where is the air pump located on the 9-7x?
The pump is located on the driver's side of the vehicle. You can usually find it in the front corner of the engine bay or tucked inside the frame rail, which you can access by removing the driver's side front wheel and wheel well liner.
Can I replace the air pump myself?
Yes, this is a good job for a DIY mechanic. The replacement involves removing a few bolts, an electrical plug, and two hoses. The most important step is to also check the related fuses, relay, and the check valve to ensure your new pump is protected.
Do I need to replace anything else with the pump?
It is highly recommended to replace the secondary air injection check valve and the pump relay at the same time. A faulty check valve is the most common reason the pump fails in the first place due to water intrusion. A sticking relay can also burn out a new pump.
Technical Specifications
OEM Part Numbers: 10380789 15240704
Electric air pump, typically mounted on the driver's side frame rail or engine bay. Operates on 12V power via a relay triggered by the ECM on cold starts.
