2005-2010 Dodge Ram 3500 Cummins Engine Valve Cover Gasket Replacement
Fixing oil leaks and engine misfires on your 5.9L or 6.7L Cummins starts right here.
- On 2006-2010 models, the gasket includes the injector harness; a failure can cause oil leaks AND engine misfires.
- Always replace the CCV filter at the same time to prevent blowing out the new gasket from high crankcase pressure.
- Verify your engine year carefully. 2005-2006 is a transition period between a simple gasket and the integrated harness assembly.
- Using a high-quality aftermarket brand like Fel-Pro, Victor Reinz, or Mahle is recommended to avoid electrical and fitment issues.
Is Your Cummins Leaking Oil? Understanding the Valve Cover Gasket
If you see oil on the side of your engine block or smell burning oil, a bad valve cover gasket is a likely suspect. This gasket sits between the cylinder head and the valve cover. Over time, the constant heat and vibration from the Cummins diesel engine causes the gasket material to get hard and brittle, leading to leaks. For the 2005-2010 Dodge Ram 3500, there are two different engine generations to consider: the 5.9L Cummins (2005-2007.5) and the 6.7L Cummins (2007.5-2010).

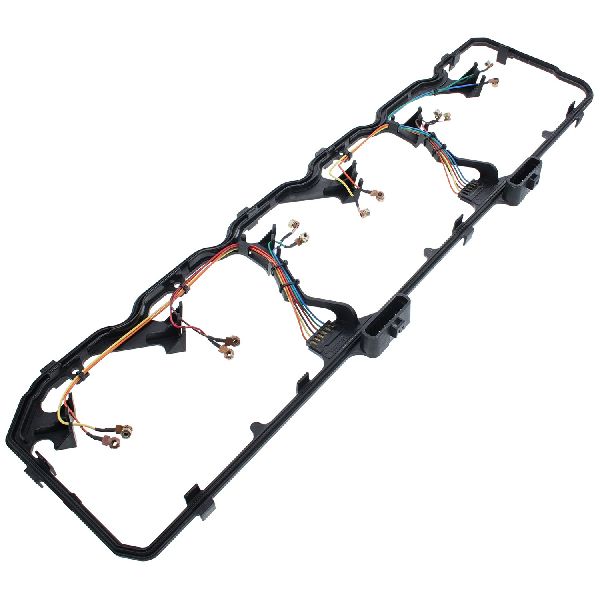

A key difference is that for 2006 and newer models, the valve cover gasket is a single assembly with the fuel injector wiring harness built into it. This means a failure can also cut power to an injector, causing a rough idle, misfires, and check engine lights.
Check Your CCV Filter First!
Before you replace the valve cover gasket, inspect the Crankcase Ventilation (CCV) filter. It's located on top of the valve cover. If this filter is clogged, it creates excess pressure inside the engine that can force oil past even a brand-new gasket. It is a smart move to replace the CCV filter whenever you replace the valve cover gasket.
Choosing the Right Aftermarket Gasket Set
When shopping for a new aftermarket valve cover gasket, quality matters—especially for the integrated harness models. A cheap, poorly made harness can cause frustrating electrical issues right after installation. Here’s a breakdown of available brands based on quality and reputation.
Tier 1: OEM Quality Aftermarket
These brands are known for making parts for vehicle manufacturers and have a strong reputation for quality and fit. They are the safest bet outside of buying a genuine Cummins or Mopar part.
- Fel-Pro: A long-time leader in the gasket industry. Generally considered a top-tier choice, though it's always good to verify fitment.
- Victor Reinz: An OEM supplier for many brands, known for excellent materials and engineering. Many mechanics consider them equal to or better than Fel-Pro.
- Mahle: Another trusted OEM supplier that produces high-quality engine components, including gaskets.
- Elring: Well-regarded, especially for European vehicles, and known for making quality seals and gaskets.
Tier 2: Standard Aftermarket
These brands offer a balance of value and quality. They are a good option for owners on a budget who still want a reliable part.
- Crown Automotive: A known supplier of various aftermarket parts, offering a cost-effective alternative.
- Bostech (BT-Power): This brand states its parts are made to OEM specifications and often come with a good warranty.
Tier 3: Economy
These brands focus on being the most affordable option. However, for a critical part like an integrated injector harness, caution is advised. One user review for a Dorman kit noted that the injector nuts did not fit correctly, which can stop a repair job in its tracks.
- GBR Fuel Injection: Positioned as a budget-friendly choice.
Pro Tip: 5.9L vs. 6.7L Gaskets

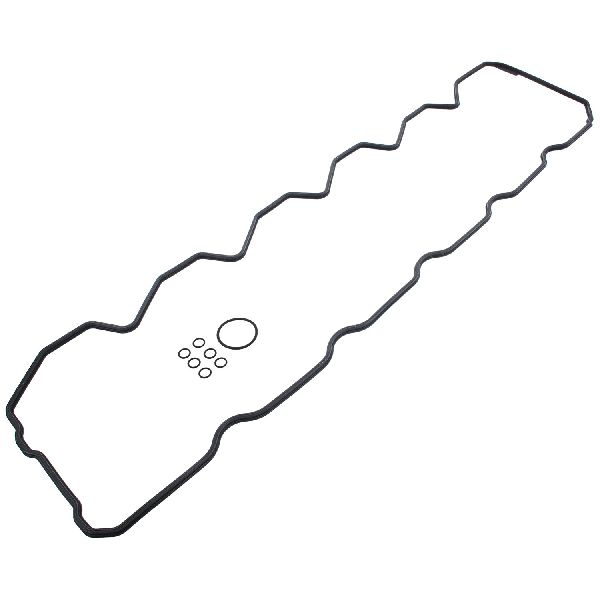

The 2005-2007.5 model years can be tricky. Early 2005 5.9L engines use a simple perimeter gasket. 2006 and later 5.9L engines, along with all 6.7L engines, use the more complex gasket with the integrated injector harness. Always confirm which style your truck has before ordering.
Estimated Replacement Costs
The cost can vary significantly based on who does the work and which parts you choose. The integrated harness/gasket assembly used on 2006-2010 models is more expensive than the simple gasket on older trucks.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $35 - $264 |
| New OEM (Cummins/Mopar) Gasket Set | $85 - $275 |
| Shop Labor | $500 - $950 |
Cost estimates are approximate and can vary by location and vehicle condition. The wide labor range reflects differences between general auto shops and diesel specialists.
Frequently Asked Questions
Is this the same as a head gasket?
No. The valve cover gasket is on the very top of the engine. A head gasket is much deeper in the engine, between the cylinder head and the engine block. A leaking valve cover gasket is a moderate repair, while a leaking head gasket is a major and very expensive repair.
Do I need to use sealant (RTV) with the new gasket?
Generally, no. A new, high-quality gasket is designed to seal on its own. Using RTV is typically not recommended unless the service manual specifies it for certain corners or if there are scratches on the head's sealing surface.
Do I have to replace the bolts or injector nuts?
The valve cover bolts can usually be reused. The small nuts that connect the harness to the injectors are very delicate and should be tightened to a very low torque spec (around 11 inch-pounds). Some high-end gasket kits may include new nuts.
What else should I do while replacing the gasket?
This is the perfect time to perform a valve lash adjustment (valve clearance), especially on higher-mileage engines. You should also replace the CCV filter, as a clogged one can cause your new gasket to fail prematurely.
Technical Specifications
OEM Part Numbers: 3954324 5367847 5264950 05179091AD
Material: Molded Rubber. For 2006-2010 models, includes integrated fuel injector wiring harness.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
