Guide to the Starter Motor for the 2005-2010 Mercury Mountaineer
If your Mountaineer won't start, clicks, or cranks slowly, this guide will help you diagnose and replace your starter motor.
- A single, loud click is the most common sign of a failed starter on the Mountaineer; rapid clicking usually means a weak battery.
- Always check battery health and cable connections before replacing the starter, as loose or corroded terminals can mimic starter failure.
- For the 4.6L V8, starter failure when the engine is hot (heat soak) is a known issue due to its proximity to the exhaust.
- Parts for a Ford Explorer of the same generation (2006-2010) with the same engine are interchangeable.
Is Your Mountaineer's Starter Failing?
A starter motor usually gives you a few warnings before it fails completely. Recognizing these signs can prevent you from being stranded. Because the starter relies on a good battery and clean connections, always check your battery's health first. A weak battery can cause symptoms that mimic a bad starter.
Common Failure Symptoms:
🎬 Watch: 5 signs your starter motor is failing- Single Loud Click: You turn the key and hear one solid 'CLICK' but the engine doesn't crank. This is a classic sign that the starter's solenoid is working, but the motor itself is not.
- Slow Engine Crank: The engine turns over much slower than usual, sounding sluggish and weak. If your battery is fully charged, this often points to a worn-out starter motor drawing too much power.
- Grinding Noise: A harsh grinding sound when you try to start the engine, or just after it starts, can mean the starter gear is not meshing correctly with the flywheel or is damaged. This requires immediate inspection to avoid damage to the flywheel.
- No Sound at All: If your dashboard lights turn on but you hear nothing when you turn the key, the problem could be the starter solenoid, ignition switch, or the wiring between them.
- Intermittent Starting: The vehicle starts fine one day but not the next. This can be caused by a 'dead spot' in the starter motor or loose electrical connections.
- Heat Soak (V8 Models): A common issue on the 4.6L V8 is 'heat soak', where the starter fails to work when the engine is hot but works fine after it cools down. This happens because the starter is located very close to the hot exhaust manifold, and the heat causes internal electrical resistance.
Check Your Connections First
Before buying a new starter, always check that your battery terminals are clean and tight. A loose or corroded connection at the battery or the starter itself can cause a no-start condition that acts just like a failed starter. A Reddit user with an '06 Mountaineer experienced this exact issue, which was resolved by tightening a loose connection on the new starter.
🎬 See how one owner solved a Mountaineer starting problemChoosing the Right Aftermarket Starter
When replacing the starter on your Mountaineer, you have a few options. The original part is a Motorcraft starter, which is Ford's own brand. Aftermarket brands offer alternatives that can be more budget-friendly.
- Motorcraft: This is the Original Equipment Manufacturer (OEM) brand. Choosing Motorcraft guarantees a perfect fit and the same performance and longevity you got from the factory part. It's generally considered the highest quality option, but also the most expensive.
- ACDelco: A well-respected brand, often used as OEM for General Motors vehicles. ACDelco offers new and remanufactured parts that meet high-quality standards and are a reliable alternative to Motorcraft, sometimes at a lower price.
- MPA (Motor Parts of America): This brand often provides remanufactured starters. Remanufactured parts are used parts that have been rebuilt with new components to meet OEM specifications. They can be a cost-effective option, but quality can vary.
New vs. Remanufactured
A 'new' aftermarket starter is built from all-new components. A 'remanufactured' starter uses the original core (the main housing) but is rebuilt with new internal parts like brushes, bearings, and solenoids. For critical parts like a starter, a new unit from a quality brand like ACDelco or Motorcraft often provides better peace of mind and longevity than a remanufactured unit from a lesser-known brand.
Estimated Costs
The cost to replace a starter can vary widely based on the part you choose and labor rates in your area. The 2005-2010 Mountaineer is a straightforward vehicle to work on for this repair.
| Item | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Starter | $225 - $400+ |
| New Aftermarket Starter (ACDelco, etc.) | $90 - $255 |
| Shop Labor | $98 - $250 |
| Total Professional Replacement | $323 - $483+ |
Frequently Asked Questions (FAQ)
Is it my battery or my starter?
A rapid 'click-click-click' sound usually means a dead battery. A single, loud 'CLICK' usually means a bad starter. If the headlights are bright and don't dim when you try to start the car, the battery is likely fine and the starter is the suspect. If the lights are dim or go out completely, the battery is the first thing to check.
Where is the starter located on my 2005-2010 Mountaineer?

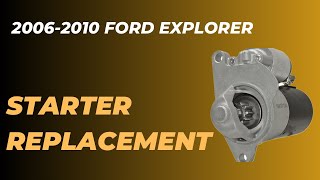

The location depends on your engine. For the 4.0L V6, the starter is on the driver's side of the engine where it meets the transmission. 🎬 Watch this step-by-step 4.0L V6 starter replacement walkthrough For the 4.6L V8, it is on the passenger side, tucked between the engine block and the exhaust manifold. Access can be tight, especially on 4x4 models.
Can I use a starter from a Ford Explorer?
Yes. The 2005-2010 Mercury Mountaineer is mechanically identical to the 2006-2010 Ford Explorer. A starter for an Explorer with the same engine (4.0L V6 or 4.6L V8) will fit your Mountaineer.
Are there any recalls or TSBs for the starter?
There are no specific recalls for the starter motor on the 2005-2010 Mercury Mountaineer. There is a Technical Service Bulletin (TSB 06-19-12) for the 4.6L V8 engine that mentions certain diagnostic trouble codes (P0345/P0349) could be caused by a faulty alternator, not a starter issue. Another TSB mentions hard starting after the battery has been disconnected, which is related to the engine computer relearning, not the starter itself.

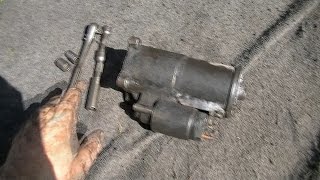

Helpful Videos
Technical Specifications
OEM Part Numbers: 6L2Z-11002-AA 5L2Z-11002-AA 6L2Z-11002-C 4R3T-11000-AA 1L2U-11000-AA
12 Volt, Clockwise Rotation, Permanent Magnet Gear Reduction (PMGR) type. The 4.0L V6 uses a 10-tooth pinion gear starter. The 4.6L V8 uses a 12-tooth pinion gear starter.
