Cadillac STS (2005-2011) Serpentine Belt & Tensioner Guide
Understanding the unique dual-belt system in your V6 or V8-powered Cadillac STS is key to a lasting repair.
- Your STS has two serpentine belts and two tensioners; it is best practice to replace all of them at the same time.
- For a lasting repair, buy a complete kit that includes belts, tensioners, and idler pulleys. Gates and Continental are premium options.
- If you have the 4.6L V8, check for oil leaks that could be dripping on the belts, as this will cause premature failure.
- A snapped belt will cause an immediate loss of power steering and engine cooling, making the vehicle unsafe to drive.
Understanding the Dual-Belt System in Your STS
Your 2005-2011 Cadillac STS has a more complex accessory drive system than many other cars. Whether you have the 3.6L V6 or the 4.6L Northstar V8, your engine uses two separate serpentine belts, each with its own tensioner.
- For the 3.6L V6 engine: One belt runs the alternator and water pump, while the second, separate belt drives the A/C compressor and power steering pump.
- For the 4.6L V8 engine: A smaller, dedicated belt runs the alternator, while a larger main belt handles the water pump, power steering, and A/C compressor.
Because of this design, it is critical to identify which belt is failing. However, it is highly recommended to replace both belts, along with their tensioners and any idler pulleys, at the same time for a complete and reliable repair.
Symptoms of a Failing Serpentine Belt
A failing belt provides clear warning signs. Ignoring them can lead to a breakdown, as a snapped belt will shut down key components instantly.
- Squealing or Chirping Noises: This is the most common symptom, especially on startup or when turning the steering wheel. 🎬 Watch this guide to help diagnose belt squeaks and squeals. It indicates the belt is slipping due to wear, stretching, or a weak tensioner.
- Visible Damage: A visual inspection can reveal cracks, fraying, missing chunks of the ribbed section, or a shiny, glazed surface on the belt.
- Accessory Problems: If you notice dimming headlights or a battery warning light, the alternator belt may be failing. A sudden loss of power steering or A/C that no longer blows cold air points to a problem with the other accessory belt.
- Engine Overheating: The water pump is driven by one of the serpentine belts. If that belt slips or breaks, the engine can overheat quickly, which is a critical issue.
Known Issue: Northstar V8 Oil Leaks
The 4.6L Northstar V8 engine is known for potential oil leaks from the valve covers or other areas. This leaking oil can drip onto the serpentine belts, causing the rubber to degrade, slip, and fail prematurely. If you have a V8, inspect the area around the belts for any signs of oil contamination. Addressing the source of the oil leak is crucial before replacing the belts to prevent repeat failures.
Choosing the Right Aftermarket Serpentine Belt
When shopping for new belts, you'll find individual belts and complete kits. For the Cadillac STS, choosing a kit is the smarter, more reliable option.
Belt-Only vs. Kits (Belts, Tensioners, and Pulleys)
The automatic belt tensioners are a common failure point. Their internal springs weaken over time, and the pulley bearings wear out, causing noise and allowing the belt to slip. Installing a new belt with an old, weak tensioner will lead to premature belt wear and the return of squealing noises. A kit that includes new belts, tensioners, and idler pulleys ensures all components are fresh and designed to work together, providing a long-lasting and quiet repair.
🎬 Watch a walkthrough on replacing both tensioner pulleys and belts.Brand Quality Tiers:
- Premium Brands (Gates, Continental): Both Gates and Continental are highly respected OEM suppliers and aftermarket manufacturers. Their belts are typically made from modern EPDM rubber that resists cracking and heat better than older neoprene materials. Gates offers comprehensive kits for the STS that include belts and tensioners, making them an excellent choice for a complete overhaul.
- Quality Mid-Range (Dayco): Dayco is another well-regarded brand that offers quality belts, including options with aramid-reinforced EPDM compounds for durability. They provide a reliable balance of performance and cost and are a solid choice for this vehicle.
Pro Tip: Given the dual-belt system, replacing everything at once saves you from having to do the job twice. The labor involved in accessing the belts is the most significant part of the job, so a complete kit is the most cost-effective approach in the long run.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Belts (Pair) | $25 - $75 |
| New Aftermarket Kit (2 Belts, 2 Tensioners) | $80 - $150+ |
| New OEM Belts (Pair) | $80 - $120 |
| Shop Labor (Full Replacement) | $150 - $300+ |
Note: Labor costs can vary significantly based on your location and whether you have the V6 or the more complex V8 engine. The total job cost at a repair shop for replacing both belts and tensioners will likely be in the $300-$500+ range.
Frequently Asked Questions (FAQ)
Do I really need to replace both belts at the same time?
Yes, it is highly recommended. Both belts have been exposed to the same age, heat, and mileage. If one is worn out, the other is likely not far behind. Replacing them together saves on future labor costs and prevents a second, separate breakdown.
Why is replacing the tensioners so important?
The tensioner is responsible for keeping the belt tight. The bearing inside the tensioner's pulley can wear out and cause a grinding or whining noise. More importantly, the internal spring weakens, failing to provide enough tension. This causes a new belt to slip, squeal, and wear out quickly. Replacing the tensioner with the belt is essential for a complete repair.
Is replacing the serpentine belts a DIY job on the STS?
For an experienced DIY mechanic, yes. The 3.6L V6 is more straightforward. 🎬 See a step-by-step belt and tensioner replacement for the 3.6L V6. The 4.6L V8 is more challenging due to tighter space, and some models have a cooling fan assembly that must be partially removed to route the belt, adding complexity. You will need a specific tensioner tool or a breaker bar to release the belt tension. Always take a picture or use a diagram to remember the correct belt routing.
Are there any recalls for the serpentine belt on the 2005-2011 STS?
No, there have been no recalls issued by the NHTSA specifically for the serpentine belts, tensioners, or pulleys on the 2005-2011 Cadillac STS.
Helpful Videos
Technical Specifications

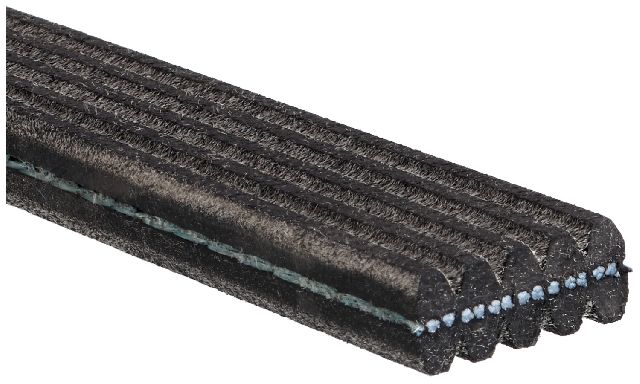

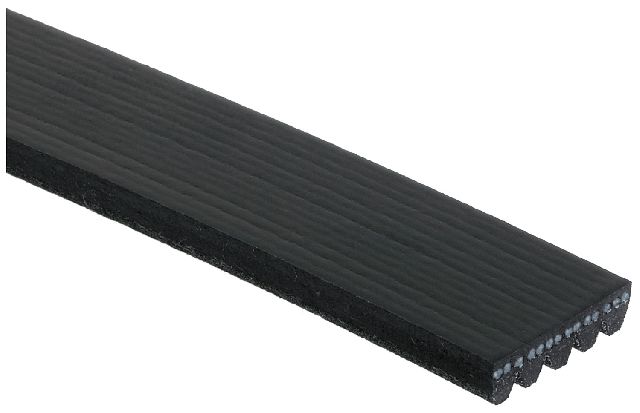

OEM Part Numbers: 12621991 (V6 Water Pump & Alternator Belt) 12578000 (V6 A/C & Power Steering Belt) 12578062 (V8 Alternator Belt) 12593189 (V8 Main Accessory Belt)
System Type: Dual Serpentine Belts. Engine Applications: 3.6L V6 or 4.6L Northstar V8. Each belt is driven by its own tensioner.
