A Guide to the Engine Water Pump for the 2006-2011 Mercury Milan
Understanding the water pump in your Milan is crucial, as the right choice depends entirely on which engine you have.
- The water pump is completely different for 4-cylinder (external) vs. V6 (internal) engines.
- For the 3.0L V6, the replacement is a major, high-labor job; always use a top-tier brand like Motorcraft or Gates and replace the timing components at the same time.
- For 4-cylinder engines, the replacement is much simpler and less expensive, making standard aftermarket brands a reasonable option.
- Symptoms like coolant leaks, overheating, or grinding noises from the front of the engine should be inspected immediately to avoid severe engine damage.
Is Your Milan's Water Pump Failing?
A failing water pump can lead to serious engine damage if ignored. It's important to recognize the warning signs early. 🎬 Learn how to diagnose a failing water pump yourself. The symptoms you experience will be similar regardless of your engine, but the urgency and cost of the repair are very different.
Key Differences: 4-Cylinder vs. V6 Water Pumps
The most critical thing to understand about your Milan's water pump is that the design is completely different depending on your engine. This difference dramatically impacts the cost and difficulty of the replacement.

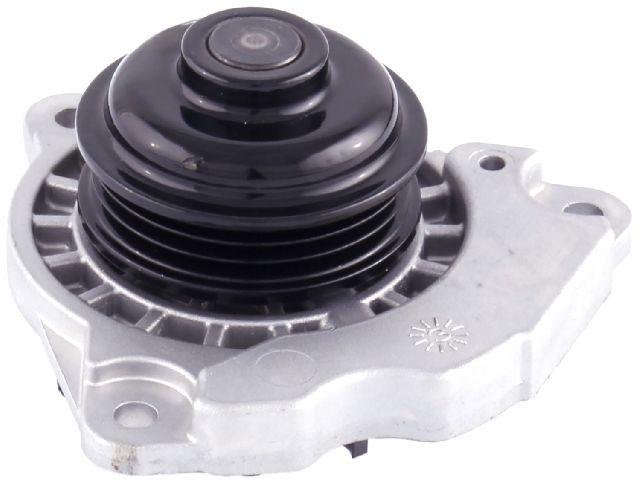

- 2.3L & 2.5L 4-Cylinder Engines: These models use an external water pump. It is mounted to the outside of the engine and driven by the serpentine belt. This makes it relatively easy to access and replace.
- 3.0L V6 Engine: This model uses an internal water pump. It is located inside the engine and is driven by the timing chain. This is a much more complex and labor-intensive job, requiring special tools and significant disassembly of the engine. 🎬 Watch a walkthrough of the water pump and pulley removal. Because of the high labor cost, using a high-quality part is essential.
Warning for V6 Owners
The water pump on the 3.0L V6 is a critical component. A failure can cause coolant to leak internally and mix with the engine oil, leading to catastrophic engine failure. Due to the 10+ hours of labor involved in replacement, it is strongly recommended to use only the highest quality OEM or premium aftermarket parts to avoid having to do this job a second time.
Choosing the Right Aftermarket Water Pump
When shopping for a new water pump, the brand you choose matters, especially for the V6 engine. Here’s a breakdown of available brands to help you decide.
Brand Tiers
- OEM (Original Equipment Manufacturer): Motorcraft is the Ford Motor Company brand and is the original part your Milan was built with. For the critical 3.0L V6 application, this is often considered the safest choice to ensure longevity and a perfect fit.
- Premium Aftermarket: Brands like Gates, Dayco, and Aisin are well-respected in the industry. Gates and Dayco are known for their expertise in belt and cooling systems, while Aisin is a top-tier OEM supplier for many Japanese automakers with a reputation for high quality. These brands offer a balance of quality and value and are a solid choice for both 4-cylinder and V6 models.
- Standard Aftermarket: Brands such as GMB, Beck Arnley, and US Motor Works offer a more budget-friendly option. They are a viable choice for the less-critical 4-cylinder water pump replacement, where labor costs are lower. While they can be used on the V6, the risk of premature failure may not be worth the initial savings given the high cost of labor.
Pro Tip: Replace Other Parts at the Same Time
For 4-Cylinder Engines: While replacing the water pump, inspect the serpentine belt and tensioner. It's often smart to replace them at the same time to save on future labor.
For 3.0L V6 Engines: The water pump is driven by the timing chain. It is absolutely essential to replace the timing chains, tensioners, and guides when replacing the water pump. Most quality kits will include all of these components.
| Component | 4-Cylinder Engine Cost | 3.0L V6 Engine Cost |
|---|---|---|
| Aftermarket Part | $45 - $150 | $100 - $500+ (Often in a kit with timing components) |
| Shop Labor | $150 - $300 | $800 - $1500+ |
| Total Estimated Cost | $195 - $450 | $900 - $2000+ |
Note: Costs are estimates and can vary significantly by location and the specific parts chosen.
Frequently Asked Questions (FAQ)
Are there any recalls on the Mercury Milan water pump?
No, there have been no specific recalls issued by the NHTSA for the water pump on the 2006-2011 Mercury Milan. However, other recalls for the model exist, so it's always wise to check your vehicle's VIN on the NHTSA website.
How long should a water pump last on a Mercury Milan?
A water pump is a wear-and-tear item. On average, you can expect an original or high-quality replacement water pump to last between 60,000 and 100,000 miles. However, factors like coolant quality and driving conditions can affect its lifespan.
Can I use a universal coolant in my Milan?
It is highly recommended to use the specific coolant type recommended by Ford for your vehicle. Using the wrong coolant can lead to corrosion and premature failure of cooling system components, including the water pump.
What is the small hole on the bottom of the water pump?
This is called a "weep hole." It is designed to allow a very small amount of coolant to drip out when the internal seals begin to fail. If you see a steady drip of coolant from this hole, it's a clear sign that the water pump needs to be replaced soon.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9E5Z-8501-A 6E5Z-8501-B
The 2006-2011 Mercury Milan was available with a 2.3L I4 (2006-2009), a 2.5L I4 (2010-2011), or a 3.0L V6 (2006-2011). The 4-cylinder engines use an external, belt-driven water pump. The 3.0L V6 uses an internal, timing-chain-driven water pump.
