A Guide to the Engine Oil Pressure Switch for the 2006-2012 Kia Rio
That flickering oil light on your dashboard might be an easy and inexpensive fix.
- A flickering oil light with a correct oil level is the number one sign of a bad oil pressure switch on your Rio.
- This is an excellent DIY repair for beginners, taking less than an hour with basic tools.
- The genuine Kia OEM replacement part is very inexpensive, making it a top choice even against aftermarket options.
- Never ignore an oil pressure light; always verify the oil level first before assuming the switch is bad.
Is Your Kia Rio's Oil Light On?
The most common reason for an oil pressure light is low oil. Always check your dipstick first. If the oil level is fine, the problem is often the oil pressure switch itself. These switches can fail over time, either by leaking oil externally or failing internally, sending a false signal. 🎬 Check out this quick guide on fixing a faulty switch. A faulty switch can cause the oil light to flicker, especially at idle, or stay on constantly.
Don't Ignore the Oil Light
Never assume the oil light is just a faulty switch. A real loss of oil pressure can destroy your engine in minutes. If the light comes on and you hear new engine noises like knocking or ticking, stop the car immediately and have it towed. If the engine sounds normal and the oil level is correct, it's likely the switch, but you should still get it checked promptly.
Choosing the Right Aftermarket Switch
For a simple part like an oil pressure switch, you don't always need to buy the most expensive option. However, quality can vary between brands. Here’s a general breakdown of the brands available:
- OEM-Quality/Well-Known Brands (Facet, Hella, Standard Ignition, Holstein): These companies have a long history of making automotive parts. Facet is a known Italian manufacturer. Standard Ignition (SMP) is a major supplier of all types of sensors. These brands are often a safe bet for reliability and proper fit, and are a good balance of price and quality.
- Value Brands (Global Parts, True Tech): These brands typically offer the lowest price. For a simple switch on a Kia Rio, these can be a perfectly acceptable budget-friendly option. The risk of failure is low, but may be slightly higher than with premium brands.
Pro Tip: Given that the genuine Kia OEM part is very affordable (often under $15), it is a very strong option against even the value aftermarket brands. Compare the price of a genuine part from a dealer or online before making your final decision.
Cost of Replacing Your Kia Rio's Oil Pressure Switch
The cost to replace this switch is low, whether you do it yourself or have a shop do it. The part itself is inexpensive, and the labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $7 - $26 |
| New OEM Switch | $9 - $13 |
| Shop Labor | $37 - $54 |
| Total (Shop Repair) | $46 - $80 |
Frequently Asked Questions
🎬 Watch this video to see the exact sensor location." loading="lazy" style="max-width:100%;height:auto;border-radius:6px;display:block;box-shadow:0 2px 8px rgba(0,0,0,0.1);" />Where is the oil pressure switch located on my 2006-2012 Kia Rio?

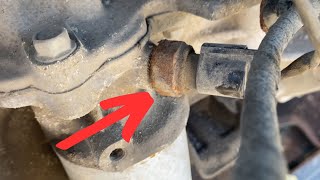

The oil pressure switch is screwed into the engine block. It is usually located near the oil filter housing. You will typically need to access it from underneath the car. It has a single electrical connector attached to it.
Can I replace the oil pressure switch myself?
Yes, this is a good DIY job for beginners. The difficulty is low. You will need to safely raise and support the vehicle, disconnect the single wire connector, and then use a deep socket (often 24mm for Kia/Hyundai engines) to unscrew the old switch and install the new one. The entire job should take less than an hour.
🎬 See how to replace the switch using basic hand tools.Are there any recalls for this part?
No, there are no recalls or technical service bulletins (TSBs) from the NHTSA specifically for the engine oil pressure switch on the 2006-2012 Kia Rio. Any recalls for this vehicle pertain to other systems like airbags or brakes.
What happens if I ignore a bad oil pressure switch?
The biggest risk is that you won't know if you have a real oil pressure problem. If your switch is faulty and always has the light on, you will have no warning if the engine actually loses oil pressure, which can lead to catastrophic engine failure. Some faulty switches can also leak oil, leading to low oil levels.
Helpful Videos
Technical Specifications
OEM Part Numbers: 94750-37100 94750-37000
Connector: 1-Pin Plug. Location: Engine block, typically near oil filter.
