Ford Expedition (2006-2015) Radiator Coolant Hose Guide
Everything you need to know before replacing a radiator hose on your Ford Expedition to prevent overheating and engine damage.
- A failing radiator hose can cause critical engine damage from overheating.
- Pay close attention to the lower hose's 'quick-disconnect' fitting; it can be difficult to remove and may require a specific replacement.
- For best results, replace both upper and lower hoses at the same time, along with new clamps.
- Premium aftermarket brands like Gates and Continental are considered reliable alternatives to OEM Motorcraft parts.
Symptoms of a Failing Radiator Hose
A bad radiator hose is a problem you need to address immediately. Ignoring the signs can leave you stranded with an overheated engine. Look out for these common symptoms:
- Coolant Leaks: This is the most obvious sign. You may see puddles of green, orange, or pink fluid under the front of your Expedition. Leaks often occur where the hoses connect to the radiator or engine.
- Engine Overheating: If a hose is leaking, clogged, or has collapsed, it will restrict coolant flow. This will cause the temperature gauge on your dashboard to climb into the red zone. 🎬 Watch: Top 5 reasons why your Ford engine is overheating.
- Visible Hose Damage: Inspect your hoses regularly. If you see cracks, splits, or bulges, the hose is weak and needs to be replaced. A hose that feels brittle, mushy, or spongy to the touch is also at the end of its life.
- Low Coolant Light: A constant need to top off your coolant reservoir is a strong indicator of a leak somewhere in the system, and radiator hoses are a common culprit.
Choosing the Right Aftermarket Hose
When it comes to replacing radiator hoses on your 2006-2015 Expedition, you have a choice between OEM (Motorcraft) and various aftermarket brands. While OEM parts are always a safe bet, high-quality aftermarket hoses can offer excellent performance and value.
The Lower Hose Quick-Disconnect Fitting
A key issue for these Expeditions is the lower radiator hose connection at the radiator. Many original hoses use a special "quick-disconnect" or "twist-lock" fitting instead of a standard clamp. After years and thousands of miles, this fitting can be extremely difficult to remove. Furthermore, some owners report that aftermarket hoses or radiators may not seal perfectly with this style of connector, leading to leaks. Some mechanics and DIYers choose to replace a difficult quick-disconnect hose with an aftermarket version that uses a traditional worm-gear clamp for simplicity.
🎬 See this walkthrough on handling the tricky lower hose connection.Aftermarket Brand Tiers
Based on owner feedback and mechanic consensus, aftermarket brands for your Expedition can be grouped into tiers:
- Premium Aftermarket (Gates, Continental): Gates is a highly respected brand in the aftermarket world, known for producing quality hoses that fit well. Many professionals consider them to be equivalent to OEM in performance. Continental is another top-tier choice with a long history of quality.
- Standard Aftermarket (Dayco): Dayco is a popular and reliable brand that offers a good balance of quality and price. While some users have occasionally reported minor fitment differences compared to OEM, they are a solid choice for most repairs.
- Other Brands (CRP): CRP is another brand available for your Expedition. While they produce a range of automotive parts, there is less specific owner feedback available regarding their radiator hoses for this particular vehicle.
Pro Tip: When replacing a hose, it's also the best time to replace the hose clamps. Spring clamps can lose tension over time. Also, consider replacing both the upper and lower hoses at the same time. They are made of the same material and have been exposed to the same conditions, so if one has failed, the other may not be far behind.
Cost of Radiator Hose Replacement (2006-2015 Ford Expedition)
| Item | Cost Range |
|---|---|
| New Aftermarket Radiator Hose (Single) | $31.00 - $100.27 |
| New OEM (Motorcraft) Radiator Hose (Single) | $30 - $90 |
| Shop Labor | $150 - $450 |
| Total (DIY) | $31.00 - $100.27 |
| Total (Shop) | $181.00 - $550.27 |
Frequently Asked Questions
Should I replace both radiator hoses at the same time?
Yes, it is highly recommended. Radiator hoses are exposed to the same heat and pressure cycles. If one has failed due to age and wear, the other is likely nearing the end of its service life as well. Replacing them together saves you from having to do the same job twice and reduces the risk of another failure soon.
🎬 Watch: Step-by-step guide to replacing your Expedition radiator hoses.Can I reuse my old hose clamps?
It is not recommended, especially for the original spring-style clamps which can lose their tension over time. New hoses often come with new clamps, but if they don't, purchasing new worm-gear or spring clamps is a small price to pay for ensuring a leak-free seal.
Were there any recalls for the radiator hoses on the 2006-2015 Expedition?
No. While there was a recall on newer 2022-2024 models where the radiator hose could interfere with a brake line during assembly, no such recall was issued for the 2006-2015 model years.
How often should I replace my radiator hoses?
There is no strict interval, but many mechanics recommend replacing radiator hoses as a preventative measure every 5 to 7 years, or around 100,000 miles. Rubber degrades over time from heat and exposure to chemicals, so proactive replacement is the best way to avoid a sudden failure.
Helpful Videos
Technical Specifications

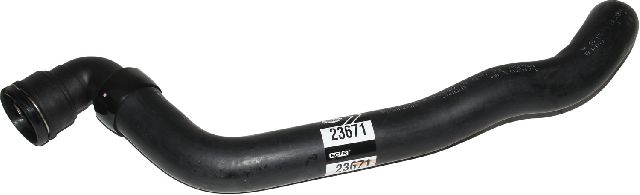

OEM Part Numbers: 4L1Z-8260-AA (Upper, 2006) 5L1Z-8286-BB (Lower, 2006) FL1Z-8260-B (Upper, 2015) KM5076 (Lower, 2015)
Hoses are made of EPDM rubber to resist heat, ozone, and chemical degradation. They are pre-molded to fit the specific routing of the Expedition's engine bay. Some lower hoses feature a quick-disconnect style fitting at the radiator connection.
