Ford Mustang Disc Brake Hardware Guide for 2006-2015 Models
Don't let worn-out brake hardware ruin your new pads and rotors; here's what your S197 Mustang needs.
- You MUST identify your Mustang's specific brake system (Standard or Brembo) before ordering.
- Always replace the brake hardware when you replace brake pads to prevent noise and ensure even wear.
- Many aftermarket brake pad kits include new hardware, so check the box before buying a separate kit.
- Properly lubricating caliper slide pins and clip contact points is essential for a quiet, long-lasting brake job.
Symptoms of Failing Brake Hardware
Old brake hardware loses its spring tension from thousands of heating and cooling cycles. Rust and grime can also cause parts to seize. When this happens, you might notice several problems with your Mustang's brakes.
- Brake Noise: Rattling, squeaking, or grinding sounds are a common sign. This can happen when worn clips allow the brake pads to vibrate excessively.
- Uneven Brake Pad Wear: If a caliper slide pin is stuck or an anti-rattle clip is binding, the brake pads can't move freely. This can cause the inner or outer pad to wear out much faster than the other.
- Vehicle Pulling to One Side: A seized caliper pin or other hardware issue can cause a brake to drag. This will make your Mustang pull to the left or right when you hit the brakes.
- Spongy or Soft Brake Pedal: While often a sign of air in the brake lines, a seized caliper slide can create extra space between the pad and rotor, which may cause an abnormal pedal feel.
Always Replace Your Hardware
It is highly recommended to install a new hardware kit every time you replace your brake pads. Reusing old, heat-cycled, and fatigued clips is a common cause of brake noise and premature pad wear. The small cost of a new kit is cheap insurance for a quiet and effective brake job.
Choosing the Right Aftermarket Kit for Your Mustang
The most important step is buying the correct kit for your specific Mustang model. The 2006-2015 (S197) generation had several different factory brake systems. The hardware for a V6 is different from a GT, which is different from a GT with the optional Brembo brakes or a Shelby GT500.
Before you buy, confirm if your Mustang has:
- Standard Brakes: Found on all V6 models and most GT models.
- Brembo Performance Brakes: An option on 2011-2014 GTs and standard on the Boss 302 and Shelby GT500 models. These kits look very different, often using long pins and a spreader spring.
Once you know your brake type, you can choose a brand based on your budget and needs. Aftermarket brands generally fall into a few quality tiers.
Brand Quality Tiers
Economy Brands (Dorman, Carlson)
These brands offer the most affordable solution. They meet basic requirements and are a good choice if budget is your primary concern. They provide new, clean hardware to get the job done, but may not have the same corrosion resistance or precise fit as higher-end options.
Daily Driver Brands (ACDelco, Centric, Dynamic Friction)
These brands are the sweet spot for most Mustang owners. They offer a balance of quality, durability, and price. Brands like Centric and ACDelco's Professional line are well-regarded for providing an OEM-equivalent fit and performance for everyday driving. They often feature better materials and coatings to resist rust compared to economy kits.
Premium Daily Driver Brands (Raybestos)
Raybestos, particularly their Element3 line, is often considered a top-tier aftermarket brand for daily use. These kits typically feature the best materials, coatings, and engineering available for a standard replacement part, designed to meet or exceed OEM specifications.
Check the Box
Many aftermarket brake pad sets come with a new hardware kit included. Check the product description before buying a separate hardware kit, as you may not need one.
Estimated Costs for Disc Brake Hardware Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $6 - $48 |
| Shop Labor (as part of a brake job) | $150 - $250 per axle |
Note: Labor costs are estimated for a complete pad and rotor replacement, as hardware is almost always replaced at the same time. Costs can vary by location and shop.
Frequently Asked Questions
Can I reuse my old Mustang brake hardware?
While some people do, it is strongly advised not to. The metal clips lose their tension over time due to heat, and reusing them can lead to noise and improper pad movement. For the low cost of a new kit, it's always better to replace it.
Do new brake pads come with hardware?
Often, yes. Many brake pad kits from brands like PowerStop, Raybestos, and Centric include a new set of abutment clips or pins. Always check the contents of your brake pad kit before purchasing a hardware kit separately.
Is the hardware the same for the front and rear brakes?
No, the front and rear brake hardware kits are different and are sold separately. You will need to order a specific kit for the axle you are working on.
🎬 Watch: Step-by-step guide for replacing rear Mustang brakesWhat's the difference between standard GT and Brembo hardware?
They are completely different. Standard calipers use abutment clips that fit into the caliper bracket. Brembo calipers use two metal pins that slide through the caliper and the brake pads, held in place by a central spreader spring. 🎬 See this walkthrough for replacing Brembo pads and hardware You must order the correct kit for your brake system.
Are there any recalls on 2006-2015 Mustang brake hardware?
There was a recall on a small number of 2015 Roush Mustangs where the rear caliper guide pins may not have been tightened correctly during installation of performance half shafts. There was also a recall for 2015 Mustangs concerning a brake pedal bumper that could fail, but this is not part of the disc brake hardware kit. No widespread recalls for the hardware itself were found for this generation.
Helpful Videos
Technical Specifications

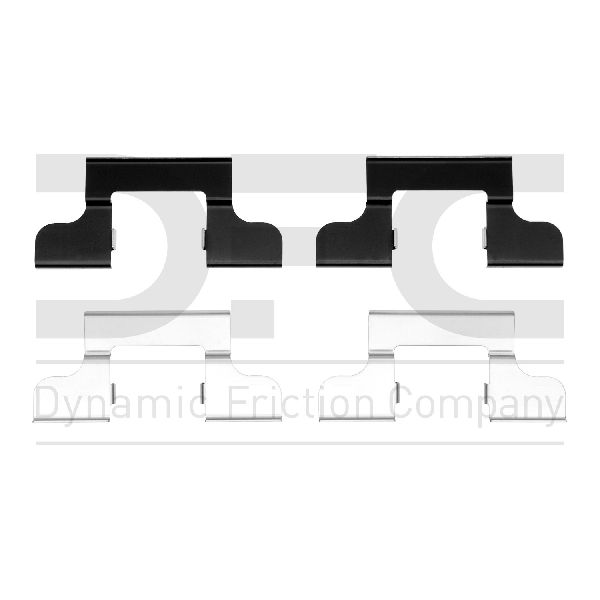

Kit contents vary based on brake system. Standard systems use abutment clips. Brembo systems use pins and spreader springs.
