Ford Mustang Universal Joint Guide: 2006-2023 Models
A complete guide to fixing driveline vibrations and clunking noises in your S197 or S550 Mustang.
- First, identify if your Mustang has serviceable (clip-style) or non-serviceable (staked-in) U-joints, as this dictates the repair path.
- Common symptoms include clunking when shifting, speed-dependent vibrations, and squeaking noises.
- Dana/Spicer is the most recommended brand for quality and durability, with their non-greasable joints being the strongest option.
- Replacing only the U-joint is far more cost-effective than replacing the entire OEM driveshaft, especially on models with staked-in joints.
Is Your Mustang's Drivetrain Making Noise?
A healthy Ford Mustang should have a smooth and quiet driveline. If you're hearing new noises or feeling vibrations that weren't there before, a worn universal joint is a likely cause. These symptoms often start small but get worse over time. Ignoring them can lead to a complete failure, leaving you stranded and facing a much more expensive repair.
Symptoms of a Bad U-Joint on a Ford Mustang
- Clunking or Ringing Noise: A loud 'clunk' or 'ping' when you shift from Park into Drive or Reverse is a classic sign of a bad U-joint. You might also hear it when you get on or off the gas quickly.
- Speed-Dependent Vibration: You may feel a vibration through the floor or seats that starts at a certain speed and gets worse as you go faster. This is different from a tire vibration because it's related to driveshaft speed, not engine RPM.
- Squeaking or Chirping: A rhythmic squeak that matches the rotation of your wheels, especially at low speeds, often means the U-joint has lost its grease and is running dry.
- Visible Rust or Leaking Grease: If you look under the car, you might see rust dust around the U-joint caps or evidence of grease being thrown from the seals. 🎬 Watch: How to diagnose a bad U-joint on your car
Staked-In vs. Serviceable U-Joints: A Critical Mustang Issue
Many 2006-2023 Mustangs, especially in the S550 generation (2015+), came from the factory with U-joints that are "staked-in." This means they are not held in with simple clips. Instead, the metal of the driveshaft yoke is pressed or deformed at the factory to hold the U-joint cap in place. Ford considers these non-serviceable, meaning their official repair is to replace the entire, expensive driveshaft.
The good news is that the aftermarket offers special replacement U-joints designed to fit these driveshafts. However, replacing them is more difficult. It requires grinding out the old stakes and using a special kit. 🎬 See how to remove and replace difficult staked-in U-joints Before buying a part, you MUST inspect your driveshaft to see if you have snap rings (serviceable) or staked-in joints (non-serviceable).
Known Issues for 2006-2023 Mustangs
- S197 (2005-2014) Two-Piece Driveshaft: Many of these models use a two-piece driveshaft with a center support bearing. This design is known for developing a 'clunk' from the slip yoke or a vibration from a worn center bearing. Many owners upgrade to a one-piece aluminum driveshaft to solve this issue permanently. 🎬 Watch: How to install a one-piece aluminum driveshaft upgrade
- S550 (2015-2023) Driveline Vibration: There is a Technical Service Bulletin (TSB) for 2015-2017 models regarding vibration at highway speeds (50-70 mph). This confirms it's a known issue. The problem can be complex, sometimes related to how the driveshaft and pinion flange were balanced together at the factory.
- Recall 19S38 / 19V767: This safety recall affects some Mustangs for a driveshaft flexible coupling that can crack, causing vibration and potential driveshaft separation. The fix involves installing a new front driveshaft section with a universal joint, showing Ford's use of U-joints as a solution.
Choosing the Right Aftermarket U-Joint
When replacing a U-joint, you get what you pay for. For a performance car like a Mustang, choosing a quality part is important for a smooth, vibration-free ride.
Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| Best (OEM Quality or Better) | Dana Spicer Chassis | Often the original equipment manufacturer for Ford. Widely considered the best choice for durability and performance. Their solid, non-greasable joints are the strongest. |
| Better (Good Value) | Moog, SKF | Moog is a well-known brand, but some users report a decline in quality recently. SKF is a top bearing maker, but their U-joints get mixed reviews for automotive use. These can be good options if a Spicer part is not available. |
| Good (Economy) | GMB, ACDelco, Yukon Gear | GMB is a budget-friendly option, but may not have the same durability as higher-tier brands. ACDelco and Yukon Gear are also available as reliable alternatives. |
Pro Tip: Greasable vs. Non-Greasable
U-joints come in two types: greasable (with a zerk fitting) and non-greasable (sealed). While greasable seems better, the internal cross is drilled out for the grease channel, which can make it weaker. Non-greasable joints from a top brand like Spicer are solid-forged and considered stronger, making them a better choice for high-horsepower applications. If you do choose a greasable joint, you must grease it regularly as part of your maintenance.
Frequently Asked Questions
Can I replace just one bad U-joint?
Yes, you can. However, U-joints are wear items. If one has failed, the others are likely not far behind. For peace of mind, it is often best to replace all of them at the same time, especially if you have already removed the driveshaft from the vehicle.
Why does my car still vibrate after replacing the U-joint?
This is a common problem that can have a few causes. First, ensure the U-joint was installed correctly; the caps must be pressed in straight and the clips must be fully seated. If even one needle bearing falls out of place inside the cap during installation, it will cause a vibration. Second, the driveshaft itself may be out of balance. It's always a good idea to mark the driveshaft's orientation to the differential flange before removal and reinstall it in the same position. If vibration persists, a professional driveline shop may need to balance the entire driveshaft assembly.
How do I know if I have staked-in U-joints?
Get under the car and look at where the U-joint caps enter the driveshaft yoke. If you see C-shaped clips or snap rings in grooves on the inside or outside of the yoke, you have serviceable U-joints. If you see no clips and the metal of the yoke looks like it has been punched or dimpled in four places around the cap, you have staked-in joints.
Is it hard to replace a U-joint myself?
For a standard, serviceable U-joint, the job can be done by a skilled DIY mechanic with a good set of tools, including a sturdy vise or a ball joint press. For staked-in U-joints, the difficulty is much higher and requires grinding and careful pressing, making it a job better left to a professional shop or a very experienced DIYer.
Helpful Videos
Technical Specifications

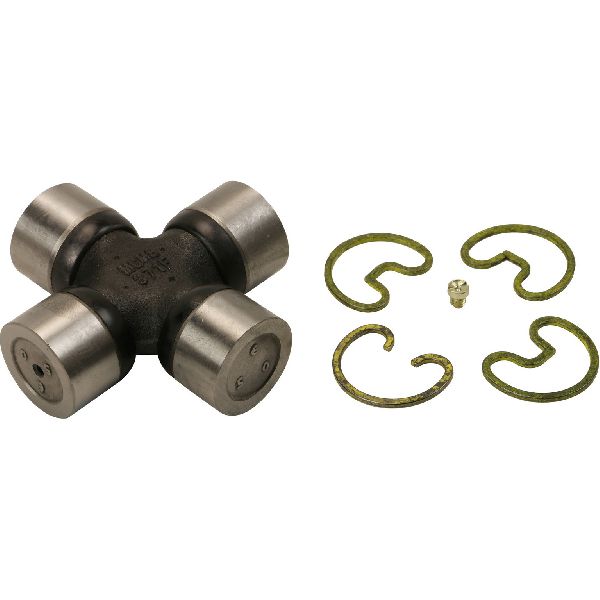

U-joint replacement for 2006-2023 Ford Mustang. Check for serviceable (snap rings) vs. non-serviceable (staked-in) yokes before ordering. Common series include 1330 and 1350, but always measure or verify your specific application.
