A Guide to the 2007-2009 GMC Sierra Engine Cooling Fan Clutch
Keep your Sierra's engine cool and prevent overheating by understanding when and how to replace your fan clutch.
- Overheating at idle and a loud roaring noise are the two most common signs of a failing fan clutch on your Sierra.
- This is a DIY-friendly repair, but you will need a special fan clutch removal tool set, which can be rented.
- For trucks that tow or haul, consider upgrading to a 'Severe Duty' aftermarket clutch for better cooling performance.
- While you are replacing the fan clutch, it is a good time to inspect the water pump and serpentine belt for wear.
Is Your Sierra's Fan Clutch Failing?
A bad fan clutch can lead to serious engine problems. Recognizing the symptoms early can save you from costly repairs. If you notice your truck is running hotter than usual, especially when idling in traffic or towing, it's a major red flag. Here are the most common signs that your fan clutch needs attention.
Loud Engine Roar
One of the most obvious symptoms is a loud, roaring noise coming from the front of the engine that sounds like a jet. This happens when the fan clutch gets stuck in the engaged position, causing the fan to spin at full speed all the time, even when the engine is cold. This constant drag on the engine can also lead to poor fuel economy.
Engine Overheating at Low Speeds
If your temperature gauge climbs when you're in stop-and-go traffic or idling, but returns to normal at highway speeds, your fan clutch may not be engaging properly. At higher speeds, enough air is forced through the radiator to keep the engine cool. At low speeds, the fan is required to pull that air, and if the clutch isn't working, the engine temperature will rise.
🎬 Watch how a bad fan clutch causes GMC engine overheating.Visible Leaks or Wobble
Pop the hood and take a look at the fan clutch, which is located at the center of the cooling fan. If you see oily streaks radiating out from the center, the internal seal has likely failed. With the engine off, try to wiggle the fan blade. If there is excessive play (more than about 1/4 inch of movement), the bearing inside the clutch is worn out and the entire unit needs to be replaced.
Choosing the Right Aftermarket Fan Clutch
When it comes to replacing the fan clutch on your Sierra, you have options. While the OEM ACDelco part is a reliable choice, quality aftermarket brands can offer significant savings without a major compromise in performance for this specific part. Aftermarket brands often categorize their clutches by duty rating, such as "Heavy-Duty" or "Severe-Duty," which are good choices for trucks used for towing or hauling.
| Brand | Typical Quality & Price Tier | Notes for GMC Sierra |
|---|---|---|
| Hayden | Premium Aftermarket | Often considered a top-tier aftermarket choice with a strong reputation for cooling components. A solid alternative to OEM. |
| Four Seasons | Mid-Grade / OEM-Equivalent | A widely available and reputable brand that provides a good balance of quality and value. Often meets or exceeds OEM specifications. |
| Global Parts / Skyward | Economy / Standard | These brands offer a budget-friendly option. They can be a good choice for a daily driver under normal conditions, but for heavy use or towing, a heavy-duty option from a higher-tier brand is recommended. |
Pro Tip: Since the fan clutch is mounted to the water pump, and you're already working in the area, it's a good time to inspect the water pump for leaks or bearing play. Many mechanics recommend replacing both at the same time to save on future labor costs.
Frequently Asked Questions (FAQ)
Can I replace the fan clutch myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical experience. You will need a specific fan clutch wrench set, which can often be rented from auto parts stores. The process involves removing the fan shroud, using the special tool to hold the water pump pulley, and unscrewing the large nut holding the clutch. The job typically takes 1-2 hours.
🎬 See how to easily remove and install a fan clutch assembly.What's the difference between a thermal, non-thermal, and electronic clutch?
Your 2007-2009 GMC Sierra uses a thermal fan clutch. This type uses a bi-metallic strip on the front that reacts to the temperature of the air coming through the radiator. When it gets hot, it opens a valve inside the clutch, allowing silicone fluid to engage the fan. Non-thermal clutches spin at a fixed percentage of the engine's speed, and electronic clutches are controlled by the vehicle's computer, which is not applicable to this model year.
Are there any recalls for the 2007-2009 GMC Sierra fan clutch?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no open recalls for the engine cooling fan clutch on the 2007-2009 GMC Sierra. However, there are some Technical Service Bulletins (TSBs) for related models concerning fan noise or certain diagnostic codes, but none are widespread issues for this specific part and year range.
Should I buy a Heavy-Duty or Severe-Duty clutch?
If you frequently tow a trailer, haul heavy loads, or live in a hot climate, choosing a "Severe Duty" fan clutch is a wise investment. These clutches are designed to engage more aggressively and provide better cooling under high-stress conditions. For normal daily driving, a standard or "Heavy-Duty" clutch is sufficient.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15-40107 15022300 15-4672

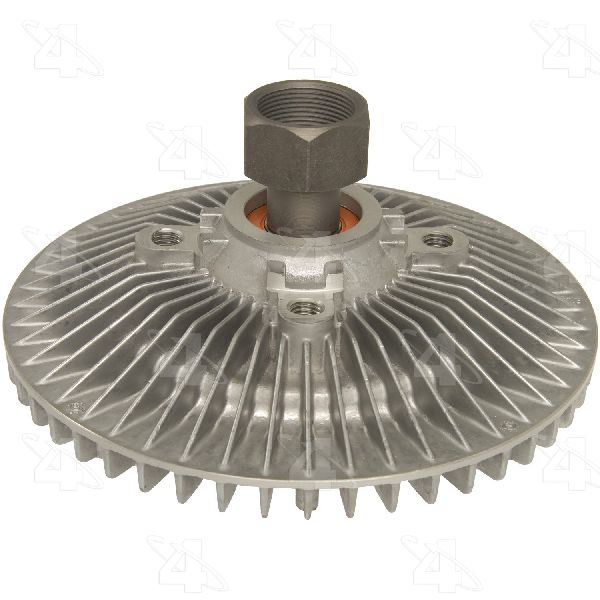

The 2007-2009 GMC Sierra uses a thermal, reverse-rotation (counter-clockwise) fan clutch that threads onto the water pump.
