Pontiac G5 Engine Timing Chain Kit: A 2007-2010 Owner's Guide
Understanding the common timing chain issues in your G5's Ecotec engine and how to fix them for good.
- Do not ignore a rattling sound on startup; it's a key symptom of timing chain failure on the G5's Ecotec engine.
- This is an interference engine; driving with a bad timing chain can lead to catastrophic engine failure.
- Choose a high-quality, complete aftermarket kit from a brand like Cloyes; it's often an upgrade over the original parts.
- Plan to replace the water pump and balance shaft components at the same time to save on future labor costs.
Is Your Pontiac G5's Engine Rattling?
A rattling noise from the engine, especially when you first start it, is a 🎬 Listen to an example of this cold start rattle. classic sign of a timing chain problem in the 2007-2010 Pontiac G5. The issue often stems from a faulty timing chain tensioner or stretched chain. These Ecotec engines are known for these problems, and ignoring them can lead to severe engine failure. If the chain becomes too loose, it can jump a tooth on the sprockets, throwing off the engine's timing and causing it to run poorly or not start at all. In a worst-case scenario, a broken chain or guide means the pistons and valves will collide, resulting in a ruined engine.
Warning: Do Not Ignore These Symptoms
A rattling noise, check engine light with codes like P0016, or 🎬 Watch this to understand what a P0016 code means. poor engine performance are serious warnings. Continuing to drive with a failing timing chain risks complete engine failure. This is an interference engine, meaning a snapped chain will cause pistons and valves to collide, requiring a very expensive repair or a complete engine replacement.
Choosing the Right Aftermarket Timing Kit
When replacing the timing chain components on your G5, you have several aftermarket options. The quality can vary, so it's important to choose wisely. The original GM parts were known to have issues, particularly with the tensioners, so a high-quality aftermarket kit can be a significant upgrade.
- Premium Brands (Recommended): Brands like Cloyes are often considered the top-tier choice for timing components. They have a long history and are known for producing kits that meet or exceed OEM quality. Many professional mechanics trust Cloyes for Ecotec timing jobs. Some kits from brands like ZZP even include redesigned, stronger guides to address the original factory weaknesses.
- Mid-Range Brands: Gates and Dayco are well-known brands, though more famous for belts than chains. Their timing chain kits are generally considered reliable for a standard replacement. INA is also a reputable OEM supplier for many parts and offers quality components.
- Budget Brands: While many lower-priced kits are available, be cautious. A timing chain is not a part where you want to cut corners. The labor to install the kit is significant, so using a low-quality part that might fail prematurely is a huge risk.
Pro Tip: Replace Everything in the Kit
When you undertake this repair, it is critical to replace all components that come in the kit: the chain, all guides, and the tensioner. It is also highly recommended to replace the water pump and the balance shaft chain and its tensioner at the same time, as they are accessed during the same disassembly process. Many kits are sold with a water pump for this reason.
Estimated Replacement Costs for Pontiac G5 Timing Chain Kit
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Chain Kit | $87 - $387 |
| Shop Labor | $500 - $1000+ |
| Total Estimated Cost (Parts + Labor) | $587 - $1387+ |

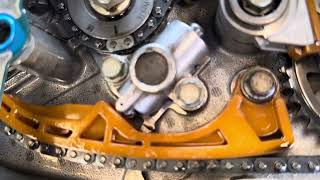

Note: Costs are estimates and can vary based on your location, the specific parts chosen, and the repair shop's labor rates. This is a labor-intensive job. 🎬 See a complete walkthrough of the timing chain replacement.
Frequently Asked Questions
Are there any recalls for the Pontiac G5 timing chain?
No, there are no specific NHTSA recalls for the timing chain on the 2007-2010 Pontiac G5. There were recalls for other issues like power steering, but not the timing components. However, the problems with Ecotec timing chains are widely documented in technical service bulletins (TSBs) and by mechanics.
What are the main causes of timing chain failure on the G5?
The primary causes are a faulty timing chain tensioner that loses its ability to keep the chain tight, and chain stretching over time. Poor oil maintenance, such as not changing the oil on time or running the engine with low oil levels, can accelerate wear on the tensioners and guides, leading to premature failure.
Can I replace just the bad tensioner?
While it is sometimes possible to access and replace only the tensioner, it is not recommended. If the tensioner has failed, it's very likely the chain has stretched and the plastic guides have worn down. Given the significant labor involved, it is best to replace the entire kit to ensure a long-lasting repair.
How long should a new timing chain last?
A high-quality, properly installed timing chain kit should last for at least 100,000 miles. Some mechanics recommend inspecting or replacing the timing components as a preventative measure around the 100,000-mile mark on these Ecotec engines, especially if you are not the original owner and don't know the vehicle's maintenance history.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12635447
Fits 2007-2010 Pontiac G5 models with 2.2L (L61, LAP) and 2.4L (LE5) Ecotec engines. Kits should include the primary timing chain, tensioner, and all fixed and pivoting guides. Some kits also include balance shaft components and/or a water pump.
